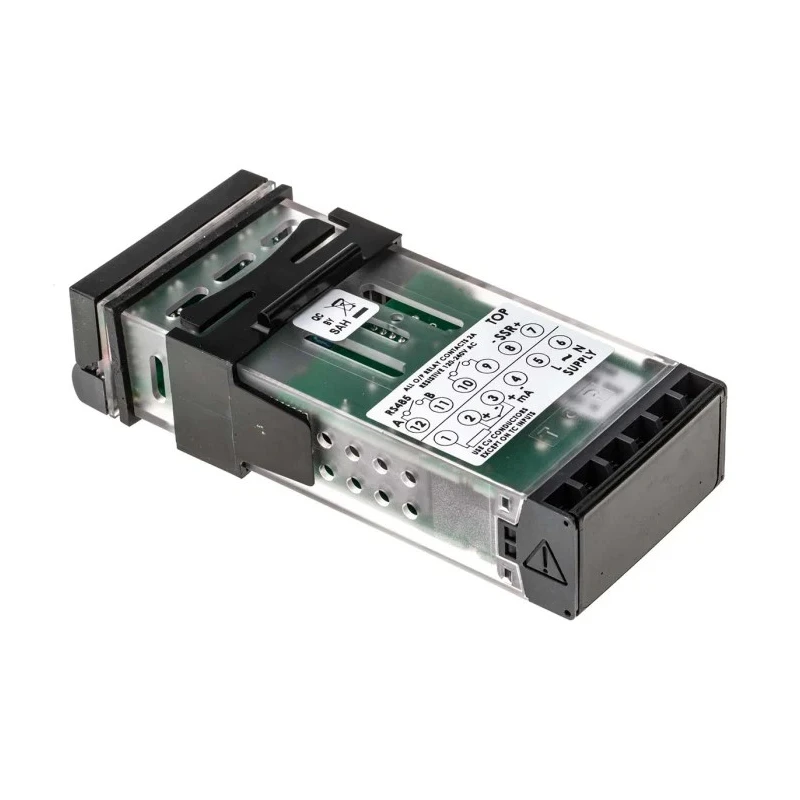

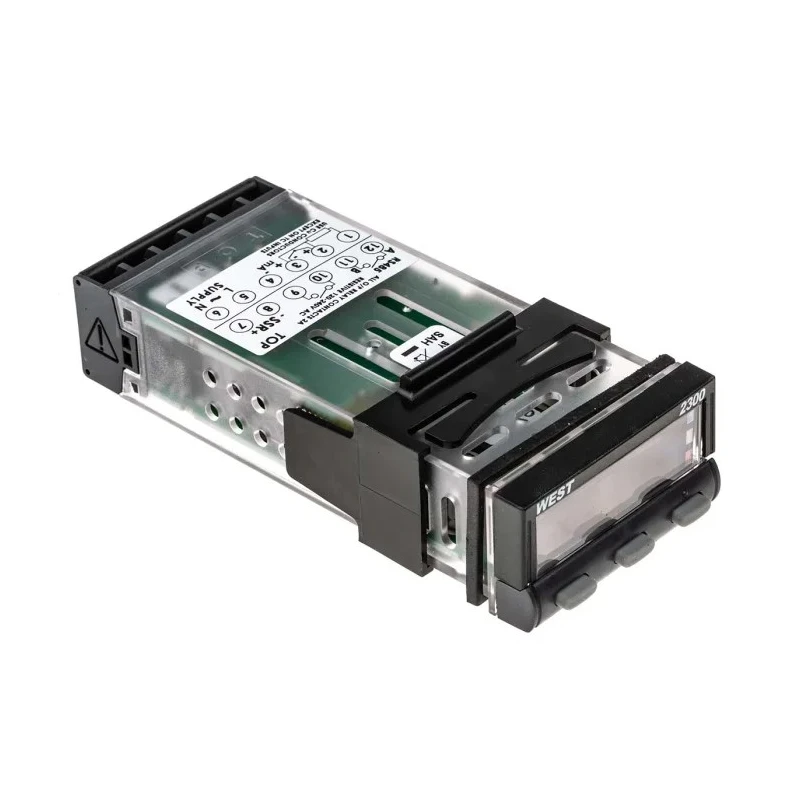

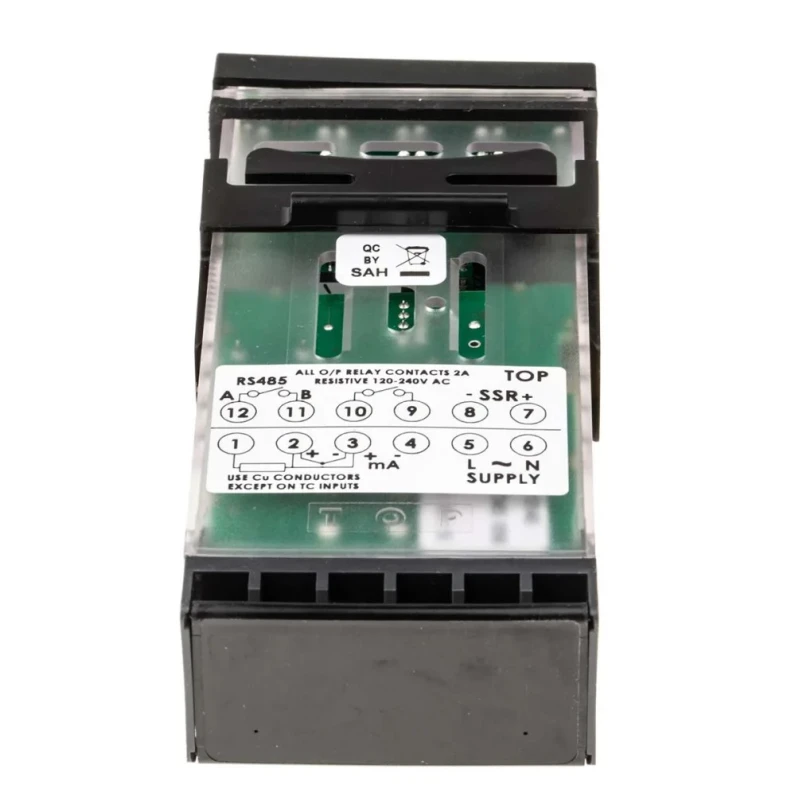

West Instruments N2300 Panel PID Temperature Controller 6 Input 2 Output Relay SSR 240V AC On-Off N2300Y1211

West Instruments N2300Y1211 Panel PID Temperature Controller is a versatile process control instrument designed for industrial applications requiring precise temperature regulation. It supports six 3-wire PT100 inputs and two configurable outputs (relay or solid-state relay) to provide alarm and control signals. The controller operates on a supply voltage range from 100VAC up to 240VAC and supports a maximum current of 2A, making it suitable for a variety of electrical environments.

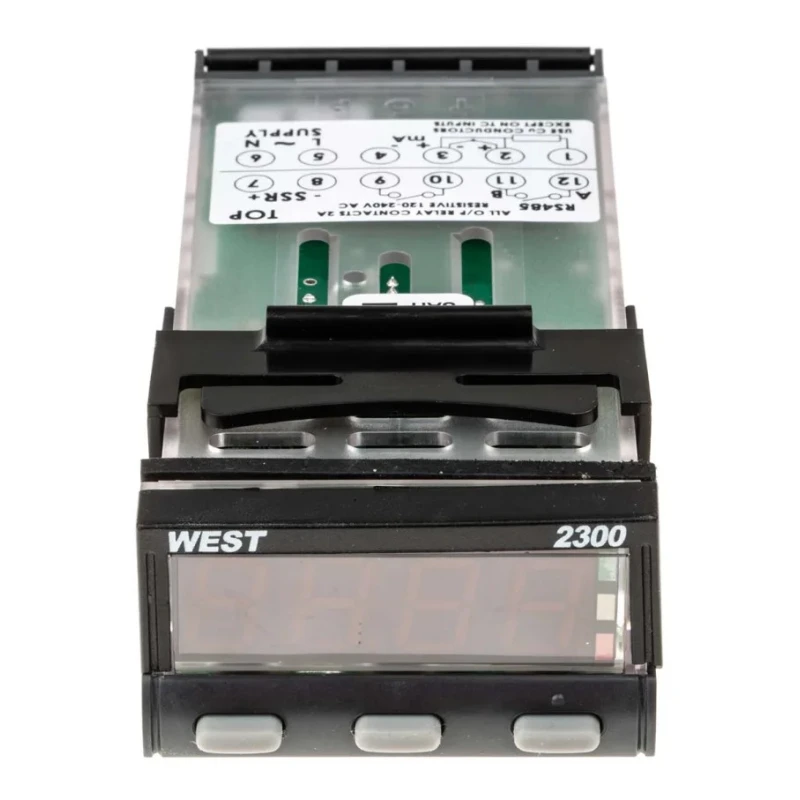

The device features the largest red LED digital display in its class, complemented by three multi-colour LEDs indicating process, alarm, and configuration statuses, enhancing user readability and control status awareness. The intuitive tactile rubberized keys and advanced hands-free PID tuning algorithm ensure precise, efficient temperature management with options for manual fine-tuning tailored to specialized applications.

Its panel mounting design with dimensions of 49mm length and 110mm panel depth enables easy integration into existing control panels. It operates reliably within 0°C to 55°C ambient temperature conditions and supports RS485 digital communication for remote monitoring and control, facilitating integration into industrial automation systems.

Applications include baking, curing rubber, drying and evaporating solvents from painted surfaces, and heat treatment of metals, making it valuable for process industries. Six PT100 3-wire sensor inputs for accurate temperature measurement.

Two alarm outputs configurable as relay or solid-state relay for flexible control. Large red LED digital display and status indicator LEDs for clear process monitoring. Hands-free and manual PID tuning algorithm for enhanced process control.

Compact panel mount design fitting standard control enclosures. Wide operating temperature range and robust IP20 and IP66 ingress protection ratings. Compliance with CE, UL, and ULC standards ensuring safety and quality.

RS485 communication interface for seamless integration with automation networks.

This controller meets the needs of industrial, laboratory, HVAC, manufacturing, and other process control environments requiring accurate, reliable temperature management. Search EnvMart for more West Instruments Temperature Controllers and related automation control gear.
