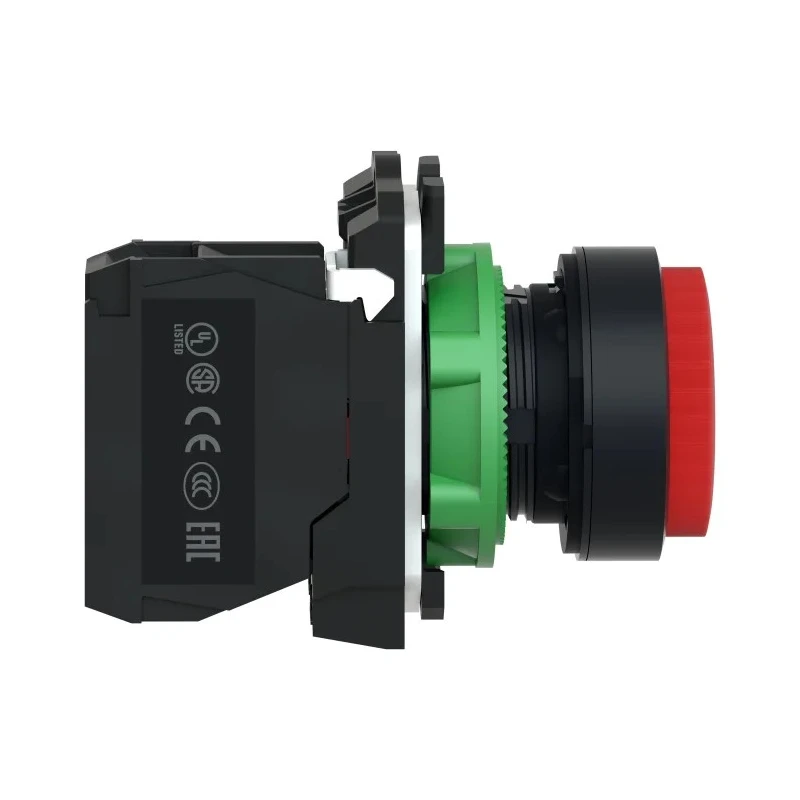

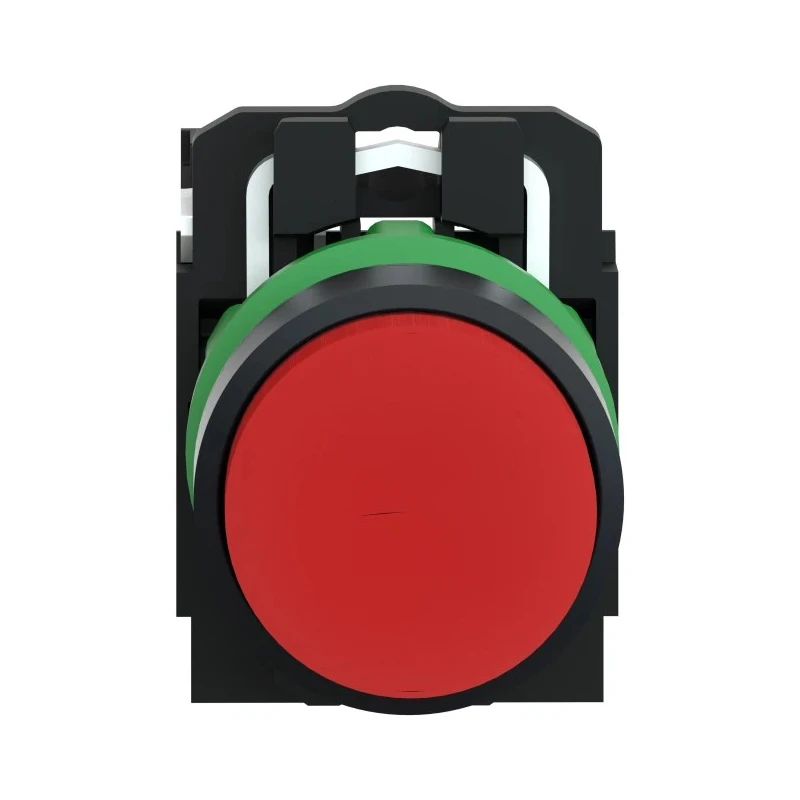

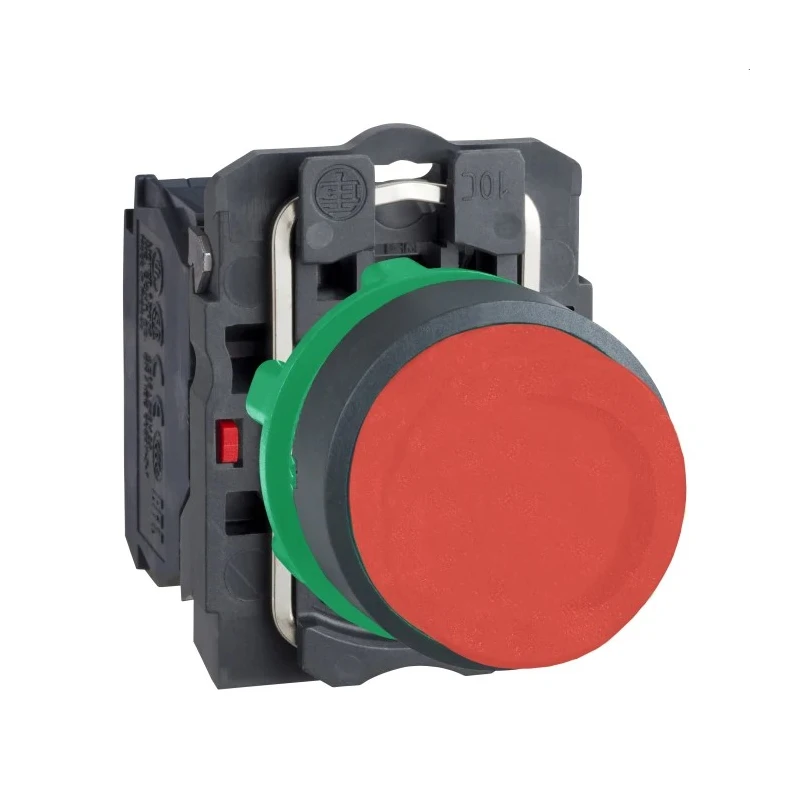

Schneider Electric Harmony XB5 Series Push Button Switch Spring Return Panel Mount 22 mm Cutout SPST Red LED 600 V XB5AL42

Schneider Electric XB5AL42 is a push button switch from the Harmony XB5 series designed for industrial and commercial applications where reliable control and signalling are essential. This model features a spring return mechanism and a panel mount type suitable for mounting into a 22 mm cutout, making it ideal for use in control stations and automation panels.

The push button has a red actuator color to distinctly identify its function and is designed with a Single Pole Single Throw (SPST) contact configuration. It supports contact voltages up to 600 V for both AC and DC circuits, providing versatility for various electrical systems.

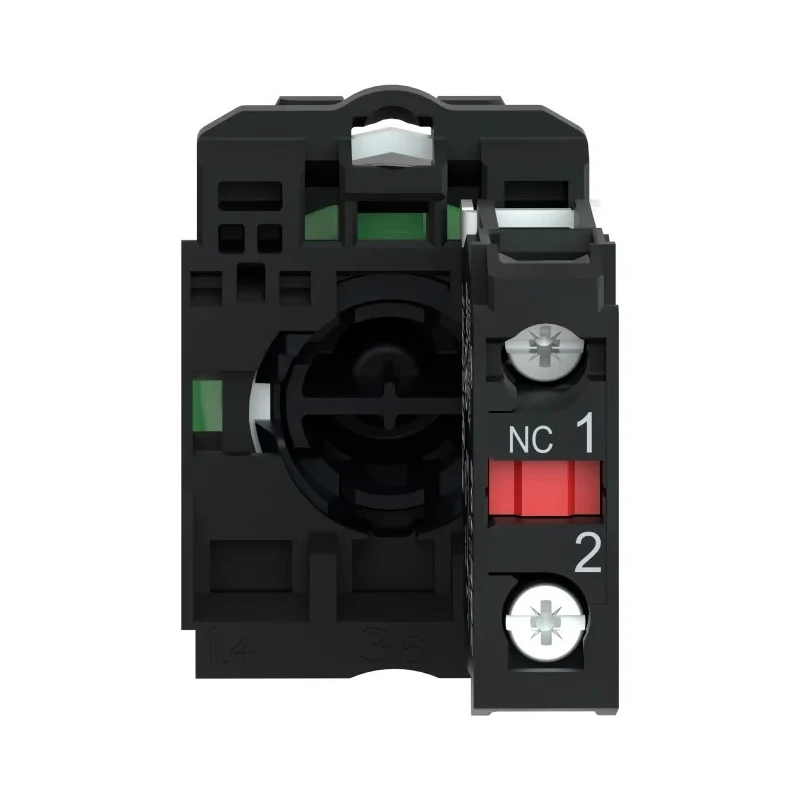

Constructed with a round actuator style and screw clamp terminals, the XB5AL42 ensures secure and easy wiring connections. It is rated for a broad operating temperature range from -25°C to 70°C, making it suitable for diverse environmental conditions.

This switch offers exceptional mechanical durability, rated for 10,000,000 operation cycles, which underscores its reliability for demanding industrial use. It conforms to key standards including EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14, and JIS C8201, guaranteeing safety and performance.

For protection against ingress of dust, water jets, and steam cleaning, it is rated IP66, IP69, IP69K, as well as NEMA 4X and 13, making it ideal for use in harsh environments such as manufacturing floors, automotive assembly lines, warehouses, and commercial kitchens with rigorous cleaning protocols.

Features a red actuator for quick visual identification of the operating switch. Spring return operation ensures the switch returns to its default position automatically. Panel mount design facilitates easy installation into control panels.

High voltage rating of 600 V for both AC and DC applications. Robust screw terminal connections provide reliable electrical contact. Wide temperature tolerance suitable for various industrial environments. Extensive mechanical durability with 10 million operation cycles.

Complies with multiple international safety and performance standards. Protection ratings make it suitable for dust and water exposure in tough conditions. Manufactured in France with repairable end-user design supporting sustainability.

This push button switch is widely used in industrial control stations, E-stop scenarios, automotive factories, commercial warehousing, and food service industries requiring detailed cleaning. It embodies Schneider Electric's commitment to quality, reliability, and sustainable product design.
