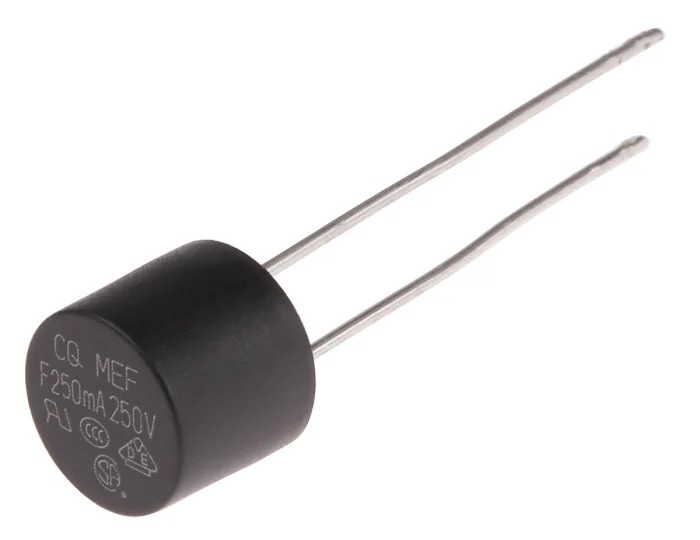

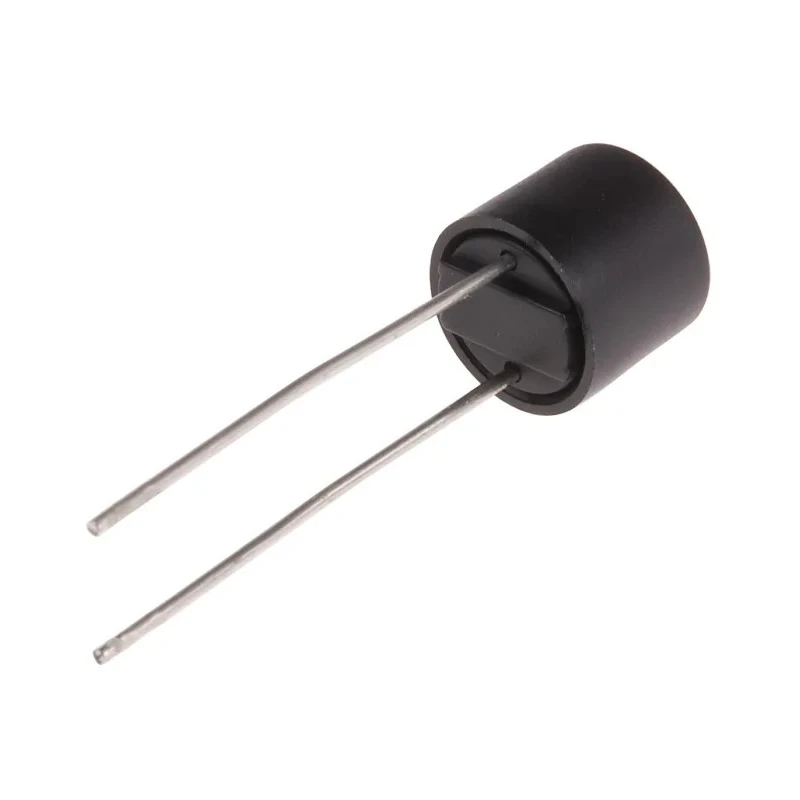

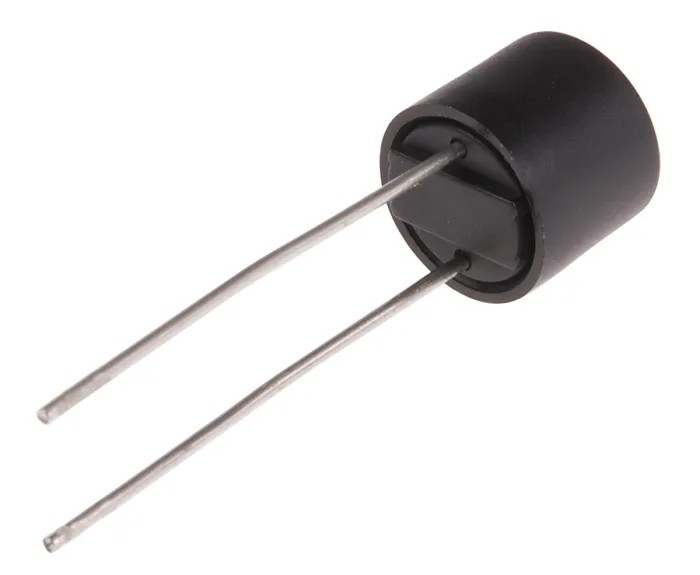

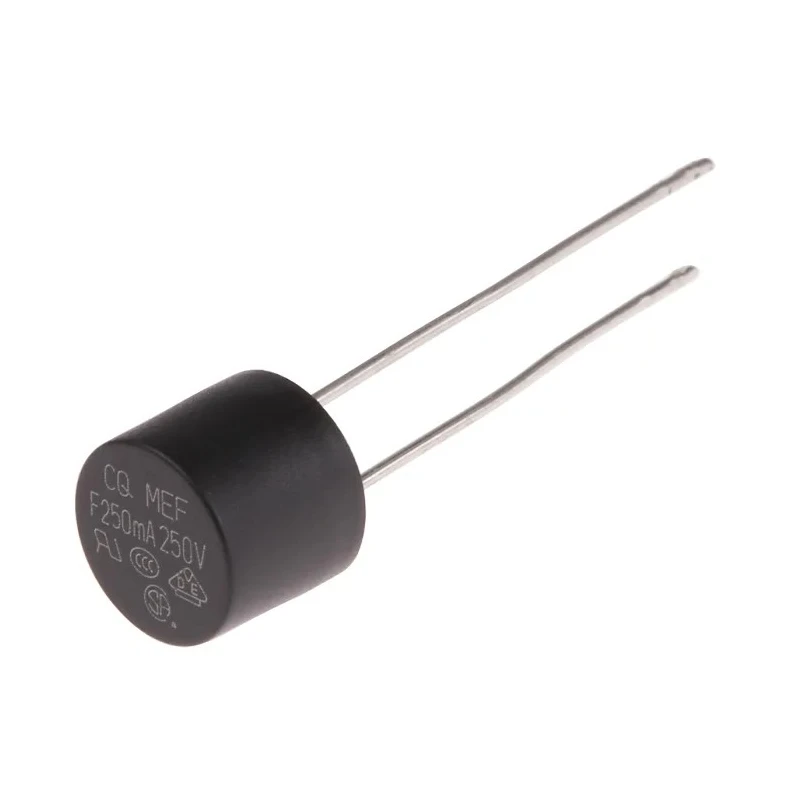

RS PRO Non-Resettable Fuse Radial 250mA 250V AC Thermoplastic Fast Acting 35A Breaking Capacity 767-5193
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V ac |
| Diameter | 8.35mm |
| Brand | RS PRO |
| Body Material | Thermoplastic |
| Height | 7.7mm |
| Length | 5.08mm |
| Model | 767-5193 |
| Current Rating | 250mA |
| Series | RS PRO |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 22mm |
| Breaking Capacity | 35A |
| Standards/Approvals | RoHS |
| Lead Diameter | 0.62mm |
| Fuse Characteristics | Fast Acting |
| Lead Orientation | Radial |
| Schurter Non-Resettable Fuse, Radial 250mA, 250V acBrand | Schurter |
Key Features
- Rated for 250mA current and 250V AC voltage for reliable circuit protection.
- Fast acting fuse characteristics ensure rapid disconnection during faults.
- Thermoplastic body material ensures durability and insulation integrity.
- Radial lead orientation facilitates easy PCB mounting and circuit integration.
- Compact dimensions with 5.08mm length and 8.35mm diameter for space-saving design.
- Operating temperature range from -55°C to 125°C suitable for harsh environments.
- Lead length 22mm and diameter 0.62mm for secure electrical connections.
- High breaking capacity of 35A for robust overload protection.
Product Description
RS PRO 767-5193 Non-Resettable Fuse Radial 250mA 250V AC is designed for reliable overcurrent protection in electronic circuits and electrical equipment. Its fast acting characteristics provide swift interruption of current flow under fault conditions, protecting sensitive components effectively.
The fuse features a thermoplastic polyamide body, combining mechanical strength with excellent insulating properties. The compact size, with a body length of 5.08mm, diameter of 8.35mm, and height of 7.7mm, allows use in tight PCB layouts. Radial leads with dimensions of 0.62mm diameter and 22mm length enable easy through-hole mounting and stable electrical connection.
Rated for operation between -55°C and 125°C, this fuse maintains performance in demanding temperature environments. With a current rating of 250mA and voltage rating of 250V AC, it suits a wide range of electronic applications requiring non-resettable, fast acting fuse protection.
The high breaking capacity of 35A ensures the fuse can safely interrupt high fault currents without damage to the circuit. The product fully complies with RoHS standards, assuring environmental safety aspects. It is manufactured in Taiwan, Province Of China, ensuring quality production standards.
This RS PRO fuse set is ideal for use in industrial electronics, automation systems, electrical control panels, and consumer electronic devices requiring stable and reliable circuit protection.
Rated for 250mA current and 250V AC voltage. Fast acting fuse characteristics. Thermoplastic polyamide body material. Radial lead orientation with 22mm lead length. Compact dimensions for PCB mounting. Operating temperature range -55°C to 125°C.
High breaking capacity of 35A. RoHS compliant. Manufactured in Taiwan, Province Of China. Explore more RS PRO products and accessories on EnvMart for comprehensive circuit protection and electronic component needs.
Explore more products in our Non Resettable Fuse category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 250mA current and 250V AC voltage, providing reliable circuit protection.
It has a high breaking capacity of 35A, allowing it to safely interrupt high fault currents without damaging the circuit.
The fuse has a length of 5.08mm, a diameter of 8.35mm, and a height of 7.7mm, making it suitable for tight PCB layouts.
The body of this fuse is made from thermoplastic polyamide, which combines mechanical strength with excellent insulating properties.
It operates effectively in a temperature range from -55°C to 125°C, suitable for harsh environments.
The leads are 22mm in length with a diameter of 0.62mm, designed for secure electrical connections.
This fuse features fast acting characteristics, ensuring rapid disconnection during fault conditions.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
The fuse has a radial lead orientation, which facilitates easy through-hole mounting on PCBs.
It is suitable for use in industrial electronics, automation systems, electrical control panels, and consumer electronic devices.
This fuse is manufactured in Taiwan, Province Of China, ensuring adherence to quality production standards.
This model is part of the RS PRO series, known for reliable electronic components.
