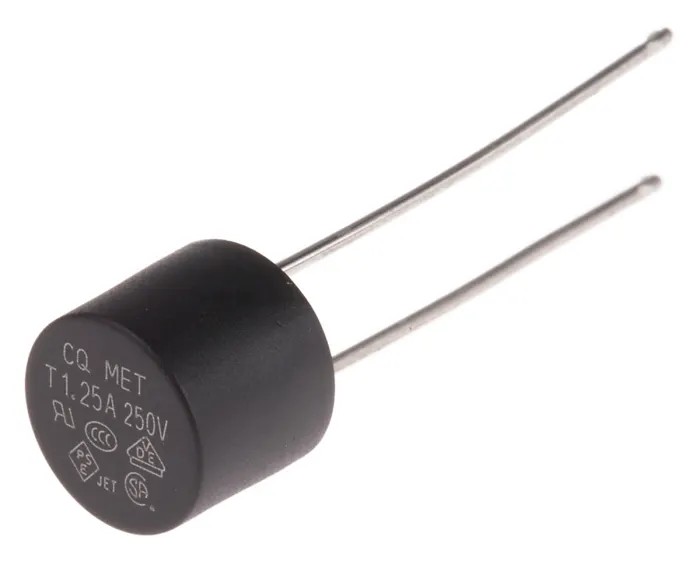

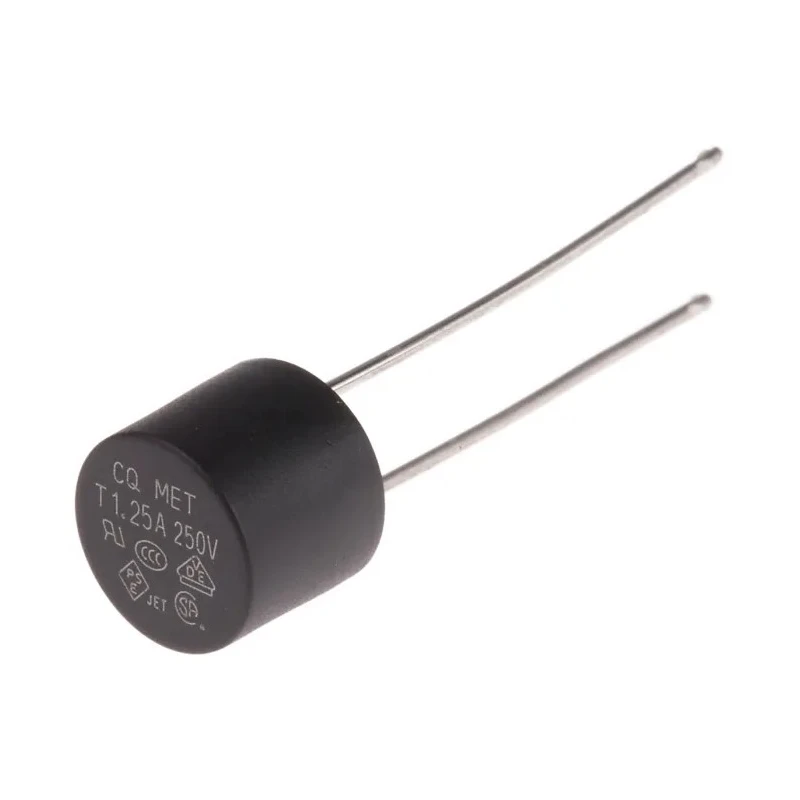

RS PRO Non-Resettable Fuse Radial 1.25A 250V Time Delay Thermoplastic Body RS PRO 767-5143

RS PRO 767-5143 is a high-quality Non-Resettable Fuse designed to offer reliable protection for electrical circuits in various industrial and commercial applications. Rated for 1.25A current and 250V voltage, this radial fuse features a time delay characteristic that allows it to endure temporary surges and transient currents without blowing prematurely.

The fuse is encased in a robust thermoplastic body that provides excellent electrical insulation and mechanical strength. With a compact size featuring a diameter of 8.35 mm and a height of 7.7 mm, it is suitable for compact circuit designs requiring durable and precise fuse protection.

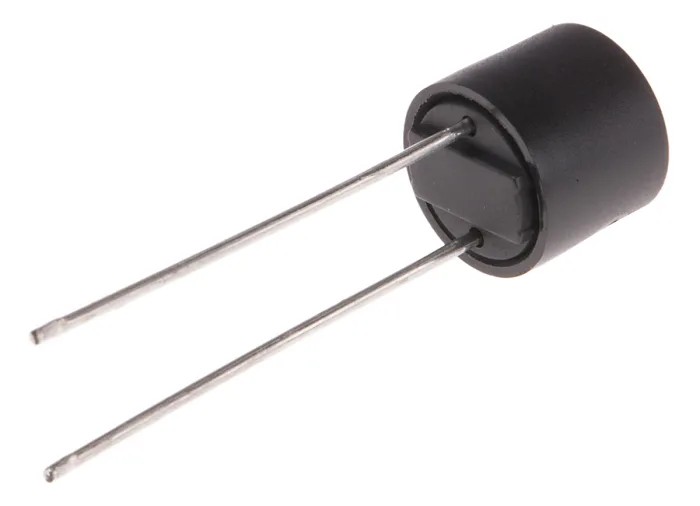

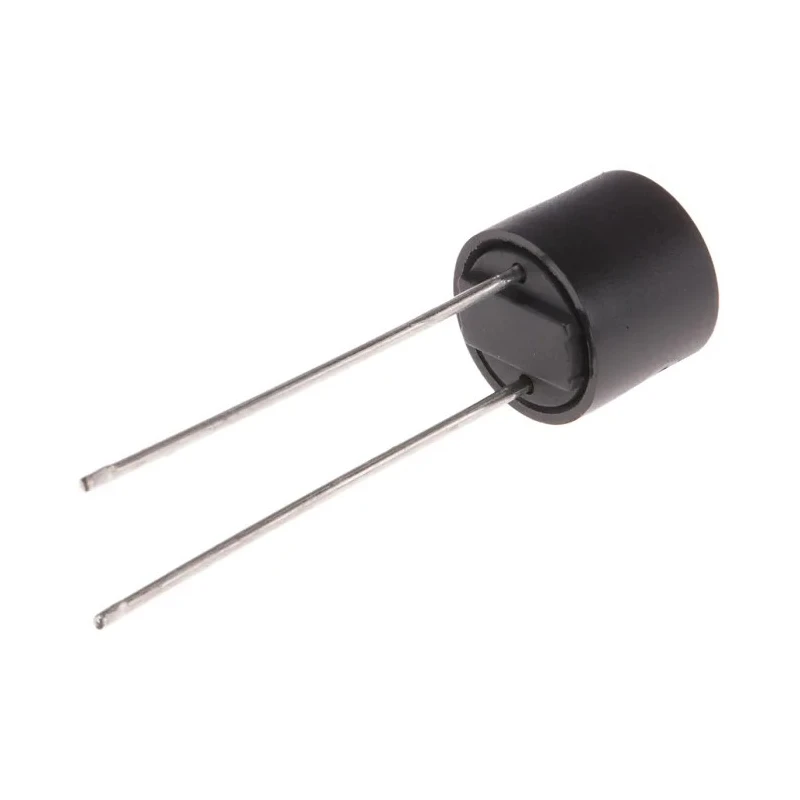

The lead orientation is radial with lead lengths of 22 mm and a diameter of 0.62 mm, facilitating easy installation on printed circuit boards. This fuse has a breaking capacity of 35A, ensuring it can safely interrupt higher fault currents without damage.

Operating efficiently in temperature ranges from -55°C to 125°C, RS PRO 767-5143 is compliant with stringent RoHS and CSA safety standards, ensuring environmental safety and conformity. This makes it ideal for use in industrial electrical installations, electronic equipment, automation systems, and control gear applications.

The fuse belongs to the RS PRO series and is manufactured in Taiwan, Province Of China, reflecting high manufacturing standards and quality assurance. Its time delay and slow blow characteristics are particularly suitable for protecting motors and transformers, where transient current inrush is common.

Rated current of 1.25 amperes suitable for low current applications. Operates at a voltage of 250 volts to protect electrical circuits. Time delay fuse characteristic to allow temporary surges without blowing. Constructed with durable thermoplastic body material for safety and insulation.

Radial lead orientation with 22 mm lead length for easy PCB mounting. Breaking capacity of 35 amperes ensures high interrupt capability. Compact dimensions with 8.35 mm diameter and 7.7 mm height. Operates reliably between -55°C and 125°C ambient temperatures.

Complies with RoHS and CSA standards for environmental and safety requirements. Manufactured in Taiwan, Province Of China under RS PRO series with model 767-5143. Explore more high-quality Non-Resettable Fuses and other electrical components in our Electronics & Electricals category at EnvMart for your industrial and commercial needs.
