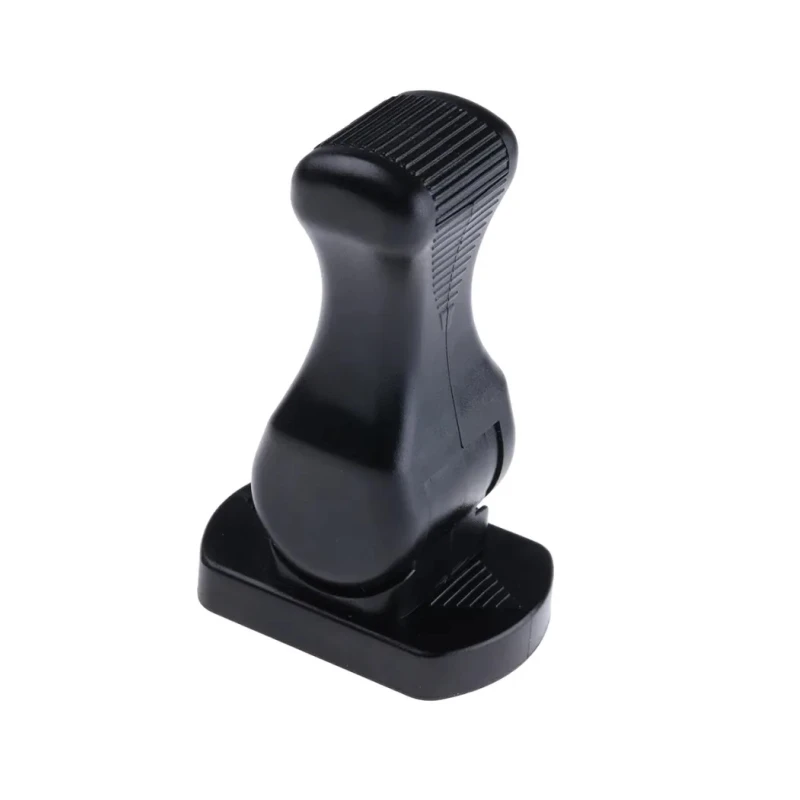

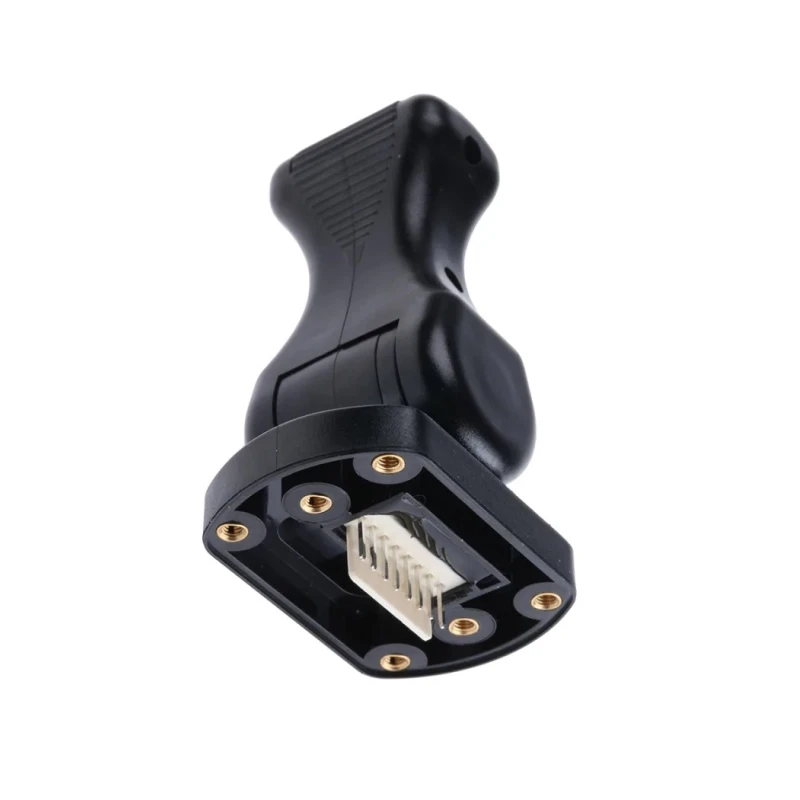

APEM BF Series 1-Axis Joystick Lever Hall Effect IP67 5 V dc 10mA
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | APEM |
| Model | IP67 |
| IP Rating | IP67 |
| Handle Type | Lever |
| Series | BF |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Through Hole |
| Number of Axes | 1 |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 5V dc |
| Switch Contact Current | 10mA |
| Mechanical Life | 2000000Cycles |
| Switch Technology | Hall Effect |
| Joystick Travel | ±25° |
| APEM BF 1-Axis Joystick Lever Hall Effect, IP67, 5 V dc, 10mABrand | APEM |
Key Features
- Constructed with Hall effect technology for contactless operation and enhanced durability.
- IP67 rated enclosure offers protection against dust and water ingress.
- Joystick lever is ergonomically designed with a 74mm paddle.
- Sprung to center with detents at 12.5° and 25° for precise switching positions.
- Operates with low current of 10mA and contact voltage of 5 V dc.
- Mechanical life rated for 2,000,000 cycles ensuring high reliability.
- Operates effectively across temperature range from -25°C to +70°C.
- Includes dual redundant outputs with inverse signal design for safety and accuracy.
Product Description
APEM BF240SD3BK1200 is a high precision 1-Axis Joystick Lever employing advanced Hall effect technology, providing contactless, reliable control suitable for demanding industrial and automation applications. This lever joystick features a robust IP67 sealed design ensuring protection from dust and water, making it ideal for harsh environments requiring dependable performance.
The joystick incorporates a 74mm sculpted paddle lever with a black insert and offers inverse dual outputs operated at 5 V dc with a low current rating of 10mA. Its ergonomic design and spring-centering mechanism include detents at 12.5° and 25°, delivering precise tactile feedback and repeatable switching points. With a mechanical lifespan rated at two million cycles, this device guarantees durability in continuous operation.
Operating temperature range from -25°C to +70°C enables usage in a wide variety of climates and industrial conditions. The joystick outputs analogue or PWM signals with effective EMC and magnetic shielding, offering excellent signal integrity. The device uses through-hole terminals for secure PCB mounting. Manufactured to RoHS standards in the United Kingdom, this joystick lever is well-suited for equipment in industrial automation, machinery controls, laboratory instrumentation, and vehicle control systems.
Contactless Hall effect technology ensures long service life and minimal maintenance. IP67 rating provides full protection against dust and temporary water immersion. Ergonomic lever handle enhances operator comfort and control accuracy.
Dual redundant outputs improve system reliability and safety. Robust construction supports high cycle mechanical life of 2,000,000 operations. Temperature rated from -25°C to +70°C for broad application range. Suitable for industrial, laboratory, HVAC, automotive, and manufacturing environments.
Through-hole terminals support reliable electrical connections. Complies with RoHS environmental standards. Explore the extensive range of APEM Joysticks and controls available at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this joystick lever is 70°C.
It employs Hall effect technology for contactless operation.
This model has an IP67 rating, providing protection against dust and temporary water immersion.
It operates at a contact voltage of 5 V dc with a low current rating of 10 mA.
The joystick has a mechanical life rated for 2,000,000 cycles, ensuring high reliability during use.
The joystick travel range is ±25°, with detents at 12.5° and 25° for precise switching positions.
It uses through-hole terminals for secure PCB mounting.
The joystick operates effectively within a temperature range from -25°C to +70°C.
This model complies with RoHS standards, ensuring it meets environmental regulations.
It outputs analogue or PWM signals with effective EMC and magnetic shielding for excellent signal integrity.
The joystick lever features a 74mm sculpted paddle design for ergonomic comfort and control accuracy.
This joystick is suitable for industrial automation, machinery controls, laboratory instrumentation, and vehicle control systems.
