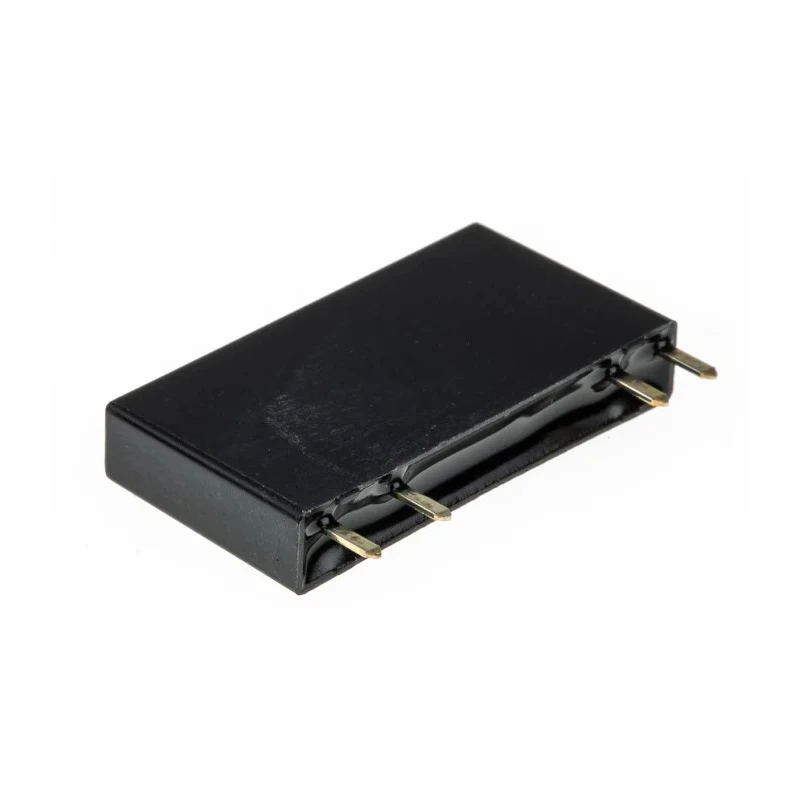

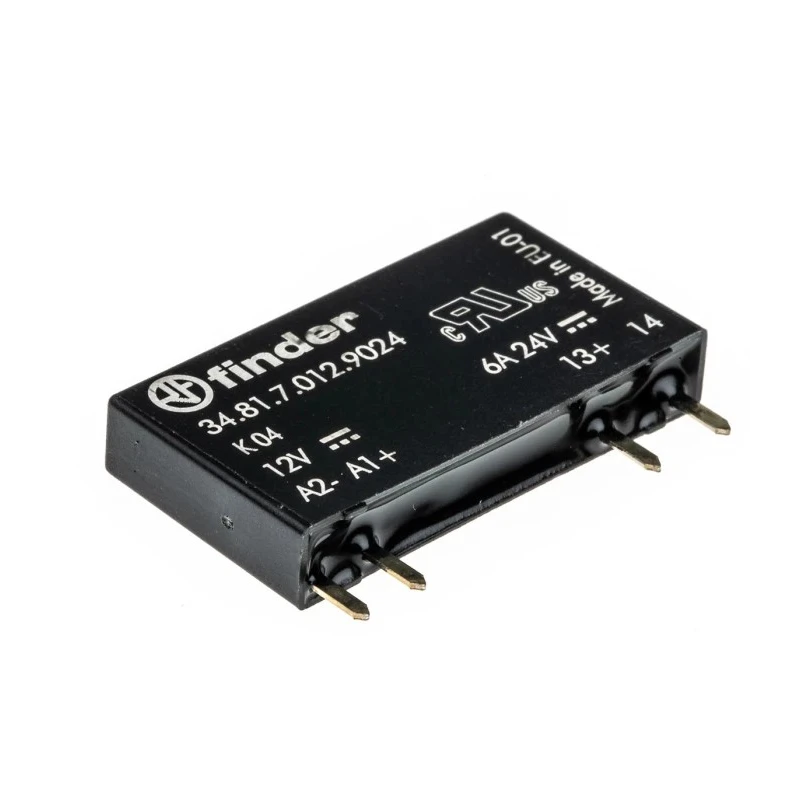

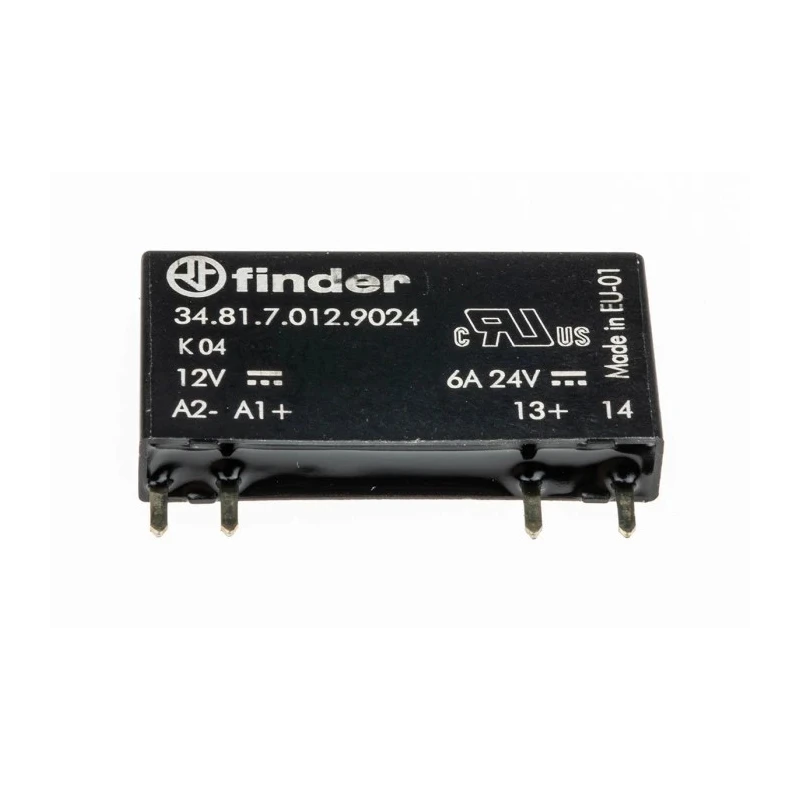

Finder 34 Series Solid State Relay, 2 A Load Current, PCB Mount, 24 V DC Load, 8-17 V Control Voltage 34.81.7.012.9024

Finder 34.81.7.012.9024 is a Solid State Relay designed for PCB mounting with a maximum load current of 2 A and operational load voltage up to 24 V DC. Its SIP-4 package and compact size of 28 mm length, 15 mm width, and 5 mm height allow efficient integration in electronic circuits where space optimization is critical.

This relay operates silently and provides high-speed DC switching with a turn-on time as fast as 0.1 ms, which extends the life cycle of electronic components by reducing mechanical wear. It is configured as a Single Pole Single Throw (SPST) device, allowing straightforward control of single electrical circuits.

Featuring a wide control voltage range from 8 to 17 V, the device offers flexible usage in diverse control circuit designs. The through-hole terminal construction ensures secure attachment to PCB boards, providing reliable electrical connections suitable for industrial settings.

It is rated for operating temperatures from -20°C to +60°C and carries IP20 ingress protection. Compliance with standards such as cLR, EAC, and RoHS underlines its quality and safety for industrial and commercial applications.

Typical applications include automation systems requiring dependable load control, HVAC electrical regulation, automotive circuit management, and embedded systems in industrial control panels.

Compact dimensions of 28 x 15 x 5 mm enable space-efficient circuit design. Supports maximum load current up to 2 A for low-power electronic applications. Wide control voltage range from 8 V to 17 V enhances compatibility.

Quick DC switching with a maximum turn-on time of 0.1 ms ensures efficient operation. Through-hole terminal type for secure and reliable PCB mounting. Operating temperature range of -20°C to +60°C suitable for industrial environments.

Single Pole Single Throw (SPST) relay configuration for simple on/off switching. Maximum load voltage of 24 V DC accommodates a variety of low-voltage circuits. IP20 rating provides basic protection against solid objects.
