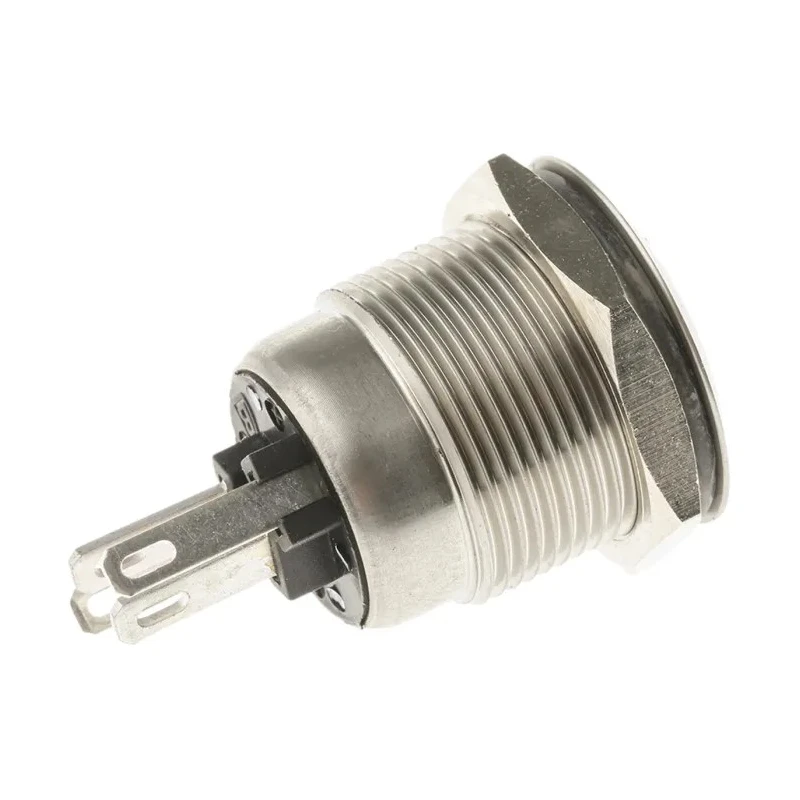

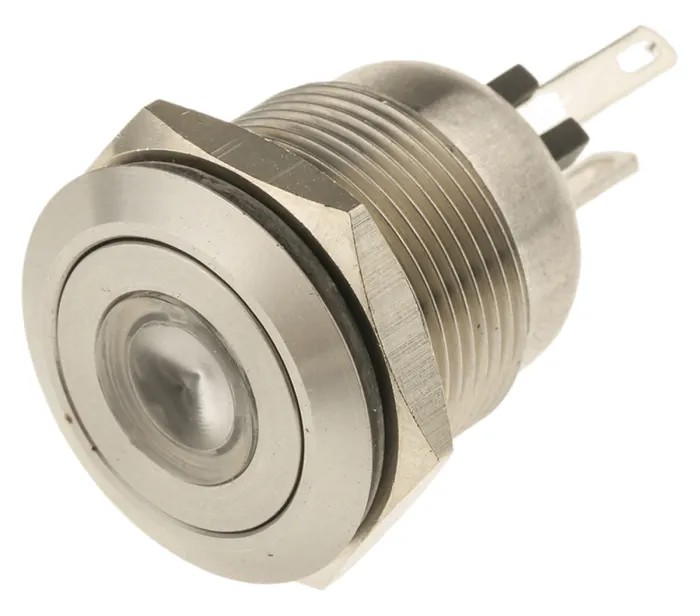

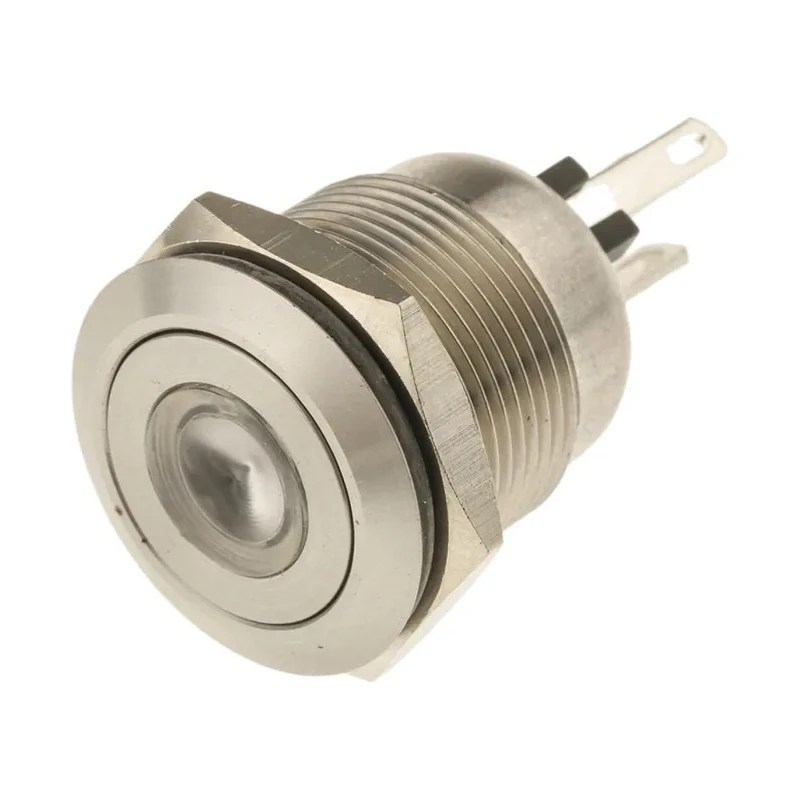

Bulgin Illuminated Push Button Switch, Momentary, Panel Mount, Stainless Steel, SPST, Blue and Green LED, IP66, 24 V MPI001

Bulgin MPI001 Illuminated Push Button Switch is a momentary, panel-mount switch designed for demanding industrial and automation applications. It features a durable stainless steel body and button that resists vandalism and mechanical wear.

This switch requires a 19.2 mm panel cutout size and provides a single pole, single throw (SPST) contact configuration with solder-type terminals for secure electrical connections.

The button is illuminated by bright daylight LEDs in blue and green colors, with separate LED terminals allowing flexible wiring options. The unit maintains an IP66 ingress protection rating, providing excellent resistance against dust and water, suitable for industrial environments.

It operates at a rated DC voltage of 24 V with a current rating of 50 mA, making it suitable for control and signaling circuits. The device is tested for a mechanical lifespan of at least 750,000 operations, ensuring durability and reliability.

The operating temperature range from -30°C to 70°C enables use in a wide range of industrial settings, including harsh ambient conditions. Manufactured to RoHS standards, this switch supports sustainable manufacturing and environmental compliance.

This product is ideal for use in electrical panels, automation systems, machinery control, and other industrial equipment requiring reliable, illuminated push button actuation. The switch features a 19.2 mm panel cutout size for easy installation.

Single pole, single throw (SPST) contact configuration ensures reliable switching operation. Illumination is provided by bright daylight blue and green LEDs with separate terminals. IP66 rated enclosure offers excellent protection against dust and water ingress.

Operates at 24 V DC with a contact current rating of 50 mA. Designed to withstand a minimum of 750,000 mechanical operations ensuring long service life. Operates reliably within a temperature range of -30°C to 70°C. Constructed from vandal-resistant stainless steel for rugged applications.

Complies with RoHS standards ensuring environmental safety. Explore additional Push Button Switches and components on EnvMart to meet your varied industrial automation needs.
