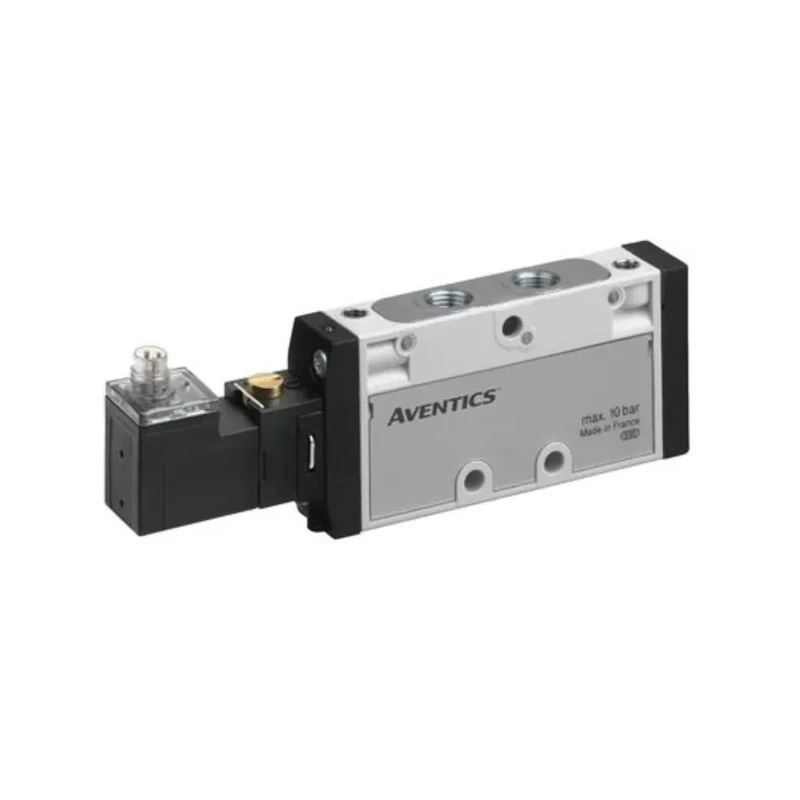

EMERSON ? AVENTICS Pneumatic Solenoid Valve 5/2 Solenoid G 1/8 Manifold Mount 24V DC TC08
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 24V dc |
| Brand | EMERSON ? AVENTICS |
| Body Material | Fibreglass, Polyamide |
| Maximum Operating Pressure | 10 bar |
| Model | TC08 |
| Mount Type | Manifold |
| Series | TC08 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Port Size | 1/8 in |
| Seal Material | Rubber |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 800L/min |
| Standards/Approvals | RoHS |
| Connection Thread Standard | G 1/8 |
| Minimum Pilot Pressure | 2.5bar |
| Valve Function | 5/2 |
| Electrical Connection Type | M 8 Connector |
| Solenoid Power Consumption | 2.2W |
Key Features
- The valve features a 1/8 inch G thread port size for fluid connections.
- Constructed with robust fibreglass and polyamide body materials for durability.
- Operates at a maximum pressure of 10 bar and maximum temperature of 50°C.
- Includes rubber seals suitable for industrial pneumatic environments.
- Maximum flow rate of 800 liters per minute for efficient air control.
- Equipped with M8 electrical connection connector for solenoid actuation.
- Supports manifold mounting and features manual override with detent.
- Designed for 100% duty cycle with non-overlapping spool valve design.
Product Description
EMERSON AVENTICS TC08 Pneumatic Solenoid Valve 5/2 Solenoid G 1/8 is a high-performance valve designed for precise pneumatic control in industrial automation and manufacturing applications. Operating at 24V DC, this valve offers robust 5-port configurations and manifold mounting capability suitable for complex pneumatic circuits.
Its fibreglass and polyamide reinforced body provides excellent mechanical strength and resistance to industrial wear. The valve supports a maximum operating pressure of 10 bar and a maximum temperature of 50°C, making it suitable for demanding environments.
The valve function is 5/2 with two positions, allowing flexible control of fluid power with a maximum flow rate of 800 liters per minute. Rubber seals ensure effective sealing and durable performance over prolonged use. The valve is actuated via an M8 connector type solenoid actuator and consumes 2.2W power, optimized for continuous operation at 100% duty cycle.
This product includes manual override with detent for manual actuation when necessary. It is non-overlapping spool valve design, reducing wear and increasing reliability. The valve can be externally piloted allowing vacuum applications, expanding its use cases across industries such as manufacturing, automotive, fluid power, and process control.
It complies with RoHS standards and has no hazardous area certifications. The TC08 series valves provide a versatile solution for pneumatic control requiring compact size, high flow, and durability. Manufactured in France, it meets stringent quality criteria.
The valve body is made from glass-fibre reinforced polyamide for chemical and mechanical resistance. Features 5 ports with manually overridable solenoid operation. Supports operating temperature range from -10°C to 50°C.
Rated maximum pilot pressure of 10 bar and minimum of 2.5 bar. Designed to handle particle sizes up to 5 microns and compressed air oil content 0 to 5 mg/m3. Maximum flow for 5/3 valve function is 700 L/min (not included in model function but noted for TC08 series).
Electrical connection via standard M8 connector for easy integration. Ideal for industrial pneumatic valve manifold assemblies. Browse our extensive range of Pneumatic Solenoid Valves and industrial automation products at EnvMart for flexible pneumatic control solutions tailored to your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It has a maximum flow rate of 800 liters per minute.
This valve operates at 24V DC.
The body of the valve is made from fibreglass and polyamide, providing strength and resistance to wear.
It supports manifold mounting, making it suitable for complex pneumatic circuits.
The valve operates within a temperature range of -10°C to 50°C.
This model features 5 ports.
It is equipped with an M8 connector for electrical connection.
Yes, it includes a manual override with detent for manual actuation when necessary.
The minimum pilot pressure for this valve is 2.5 bar.
Yes, it complies with RoHS standards.
The solenoid power consumption is 2.2W.
