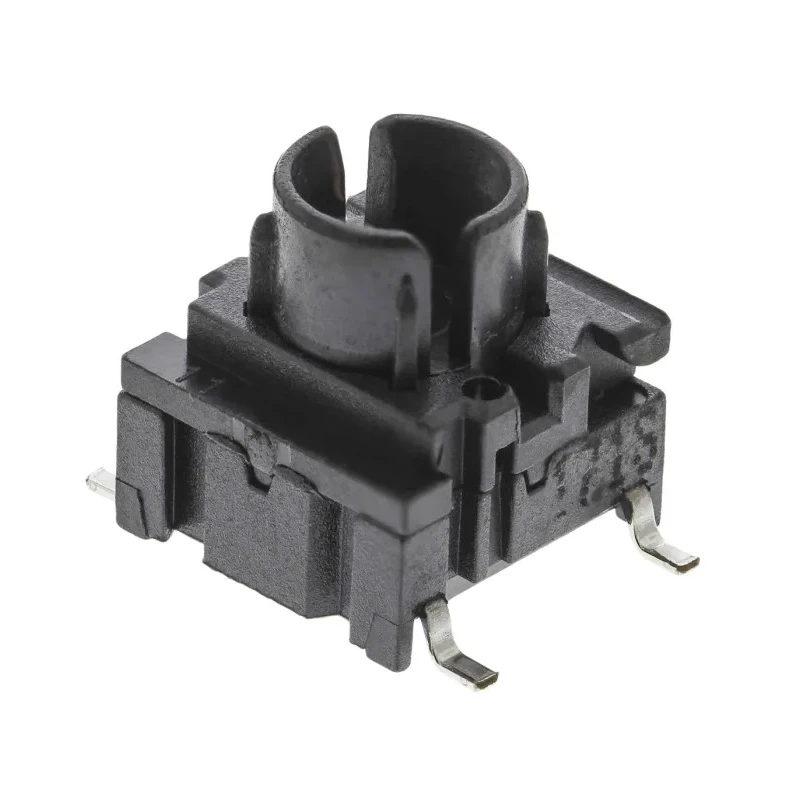

MEC IP67 Black Tactile Switch Plunger 10 mm SPST 50mA 24 V dc PCB IP67
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | MEC |
| Height | 10.4mm |
| Length | 14mm |
| Model | IP67 |
| IP Rating | IP67 |
| Width | 7.62mm |
| Mount Type | PCB |
| Series | 3F |
| Maximum Operating Temperature | 160°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Length | 10mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Plunger |
| Actuator Orientation | Straight |
| Switch Contact Current | 50mA |
| Operating Force | 2.5N |
| Mechanical Life | 10000000Operations |
Key Features
- The switch features a black plunger actuator with a length of 10 mm.
- Contact configuration is Single Pole Single Throw (SPST) rated for 50mA at 24 V dc.

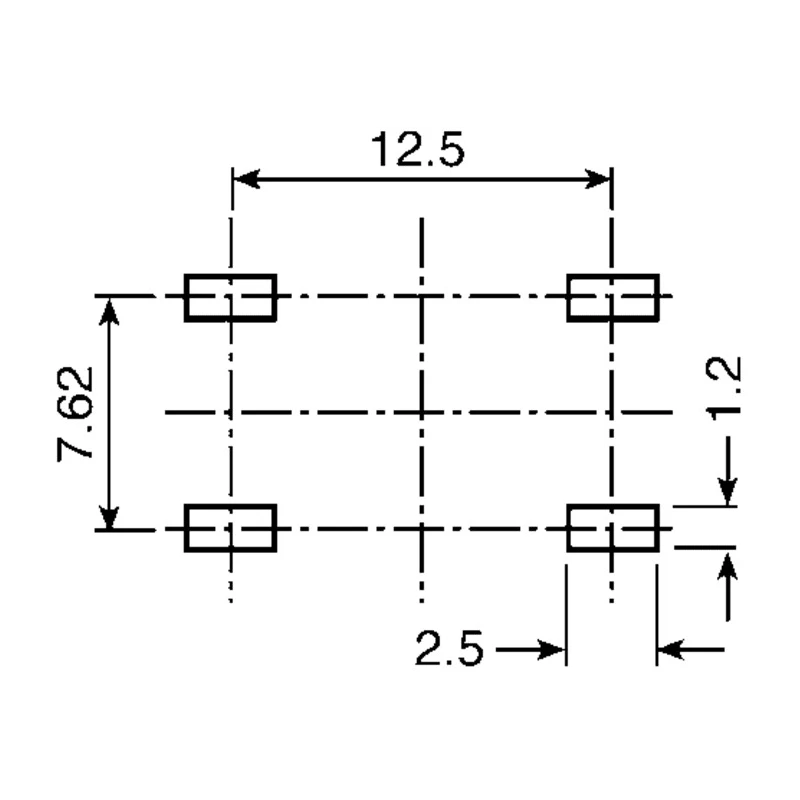

- It has a compact rectangular form factor with dimensions 14 mm length, 7.62 mm width, and 10.4 mm height.
- Operating temperature ranges from -40°C to 160°C ensuring durability under extreme conditions.
- The switch is sealed to IP67 standard, providing protection against dust and water ingress.
- Mechanical life expectancy is 10 million operations, indicating high reliability.
- Operating force required is 2.5 N, providing tactile feedback for user interface applications.
- This switch conforms to RoHS standards and originates from Denmark.
Product Description
The MEC IP67 3FSH9 tactile switch is a high-performance plunger type switch designed for use in demanding industrial, electronic, and automation applications. Featuring a robust IP67 rated enclosure, this switch provides excellent protection against dust and water ingress, making it suitable for harsh environmental conditions.
The black plunger actuator measures 10 mm in length, complementing the switch's compact dimensions of 14 mm length, 7.62 mm width, and 10.4 mm height. Designed for PCB surface mount installation, the switch operates on a momentary SPST contact configuration with a maximum contact current rating of 50mA at 24 V dc.
Operating temperatures range from -40°C to 160°C, allowing stable performance under extreme thermal conditions. The tactile switch provides an operating force of 2.5 N, delivering precise momentary feedback. With a mechanical life of up to 10 million operations, it ensures long-term reliability in continuous use scenarios.
The switch features a black plunger actuator with a length of 10 mm. Contact configuration is Single Pole Single Throw (SPST) rated for 50mA at 24 V dc. Compact size facilitates PCB surface mount installation in tight spaces.
IP67 sealing offers protection against dust and water ingress. Wide operating temperature range from -40°C to 160°C. Mechanical life expectancy of 10 million operations for durability. Operating force of 2.5 Newtons for tactile user feedback.
RoHS compliant ensuring environmentally safe manufacturing.
Ideal for electronics manufacturing, industrial automation control panels, and equipment requiring reliable tactile input switches exposed to environmental factors. The MEC IP67 3FSH9 tactile switch combines precision engineering, rugged sealing, and long life expectancy, suitable for modern PCB assemblies in electrical and automation systems.
Explore the full range of Tactile Switches and related components in our Electronics & Electricals category on EnvMart for comprehensive sourcing options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Single Throw (SPST) contact configuration.
It has a maximum contact current rating of 50mA.
The switch operates at a contact DC voltage of 24V.
The switch has dimensions of 14mm length, 7.62mm width, and 10.4mm height.
It operates within a temperature range of -40°C to 160°C.
The mechanical life expectancy of the switch is 10 million operations.
This model is designed for PCB surface mount installation.
The operating force required is 2.5 Newtons.
The switch is rated IP67, providing protection against dust and water ingress.
Yes, it conforms to RoHS standards.
The actuator is black in color.
It operates on a momentary switch operation.
