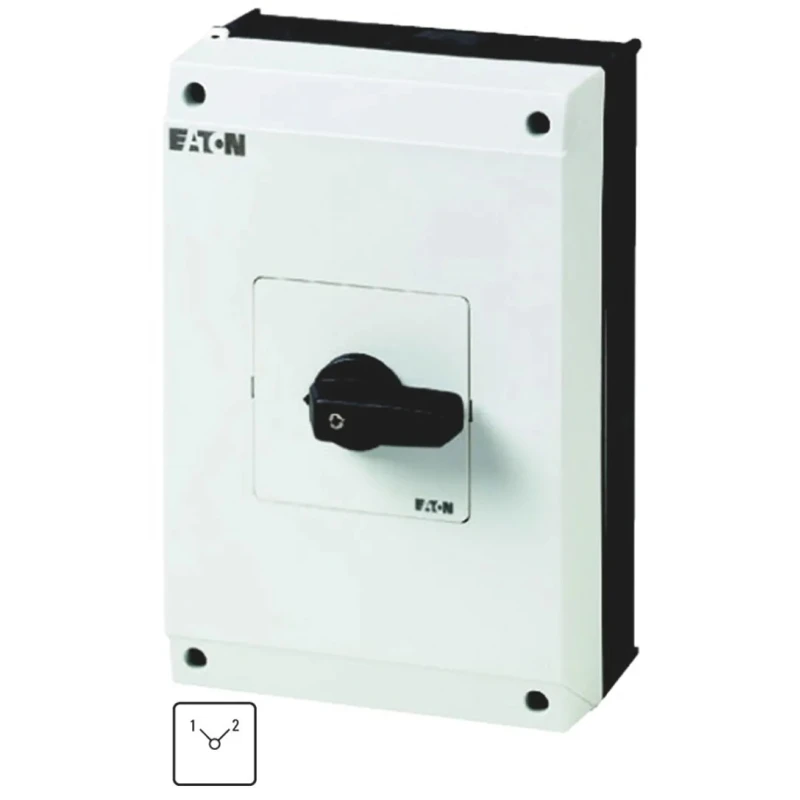

Eaton 3-Pole Surface Isolator Switch IP65 520A 22 kW Model

Eaton 207224 T5B-3-8222/I4 3-Pole Surface Isolator Switch IP65 520A 22 kW is a high-performance electrical isolator designed for industrial and commercial applications requiring dependable disconnection and safe maintenance isolation.

The switch features a thermoplastic enclosure that provides robust surface mounting, complete with M25 cable entries that facilitate secure connection of electrical wiring. This model is engineered to withstand harsh environments with an IP65 ingress protection rating, ensuring protection against dust and water jets.

Equipped with three poles and capable of handling switching currents up to 520A, the isolator is suitable for switching both AC and DC electrical circuits at voltages up to 230V AC and 60V DC respectively. It operates efficiently within a minimum temperature of -25°C and a maximum of 40°C, making it suitable for various installation conditions.

The rotary switch design includes two or three-position options, allowing for changeover switches with or without an OFF position, enhancing its versatility for diverse electrical circuit configurations. The black handle and screw terminal type ensure ease of operation and reliable electrical connectivity.

Conforming to recognized international standards such as CSA, IEC, and UL, this Eaton isolator switch assures quality and safety compliance. Its enclosure measures 240mm in length, 160mm in width, and 189mm in depth, providing a compact footprint for installation.

While this model does not support auxiliary contacts or padlock compatibility, its robust design and features make it suitable for use in industrial automation systems, manufacturing plants, electrical distribution boards, and other commercial electrical equipment installations.

The switch features a robust thermoplastic surface mounting enclosure with M25 cable entries. It supports three poles and a switching current of 520A. Suitable for 230V AC and 60V DC switching voltages. Operates within a temperature range from -25°C to 40°C.

The rotary switch offers two or three-position options including ON/OFF and changeover configurations. Complies with CSA, IEC, and UL standards for safety and performance. The handle is black and the terminal type is screw.

Enclosure dimensions are 240mm length, 160mm width, and 189mm depth. Padlock compatibility is not available on this model. Manufactured in the United Kingdom with quality assured design.

The Eaton brand is known globally for high-quality electrical components, and this surface Isolator Switch is no exception. Its reliability and durability make it ideal for demanding industrial environments requiring secure electrical isolation. Browse EnvMart’s selection of Eaton electrical switches for more options suitable to your application.
