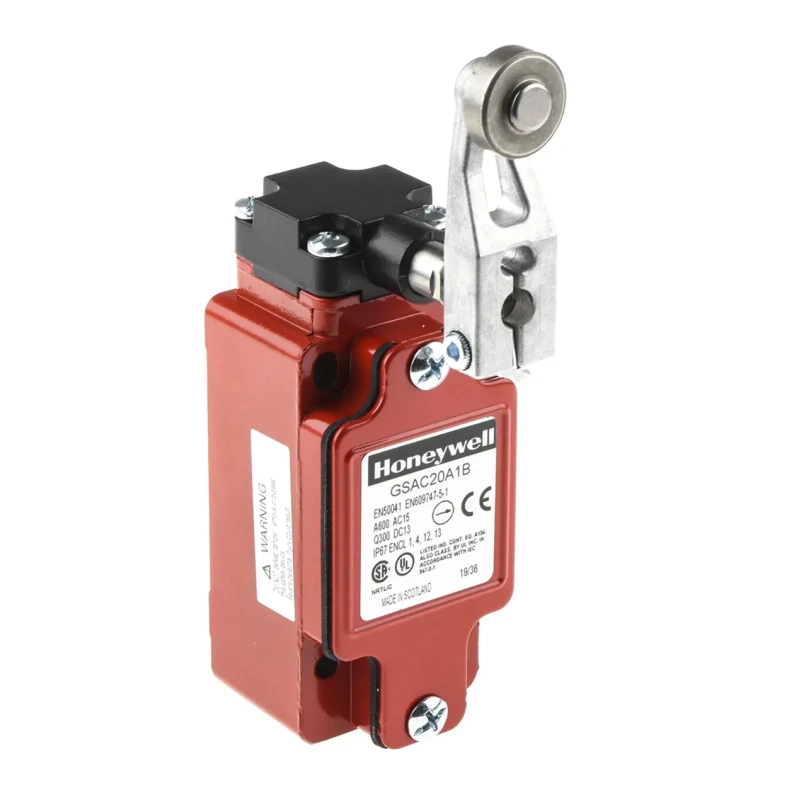

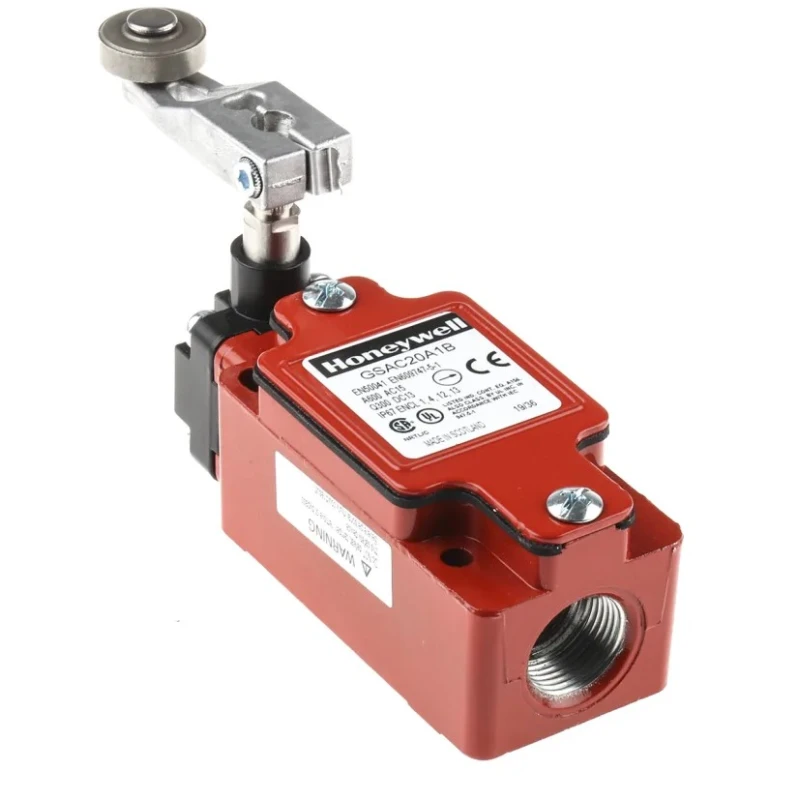

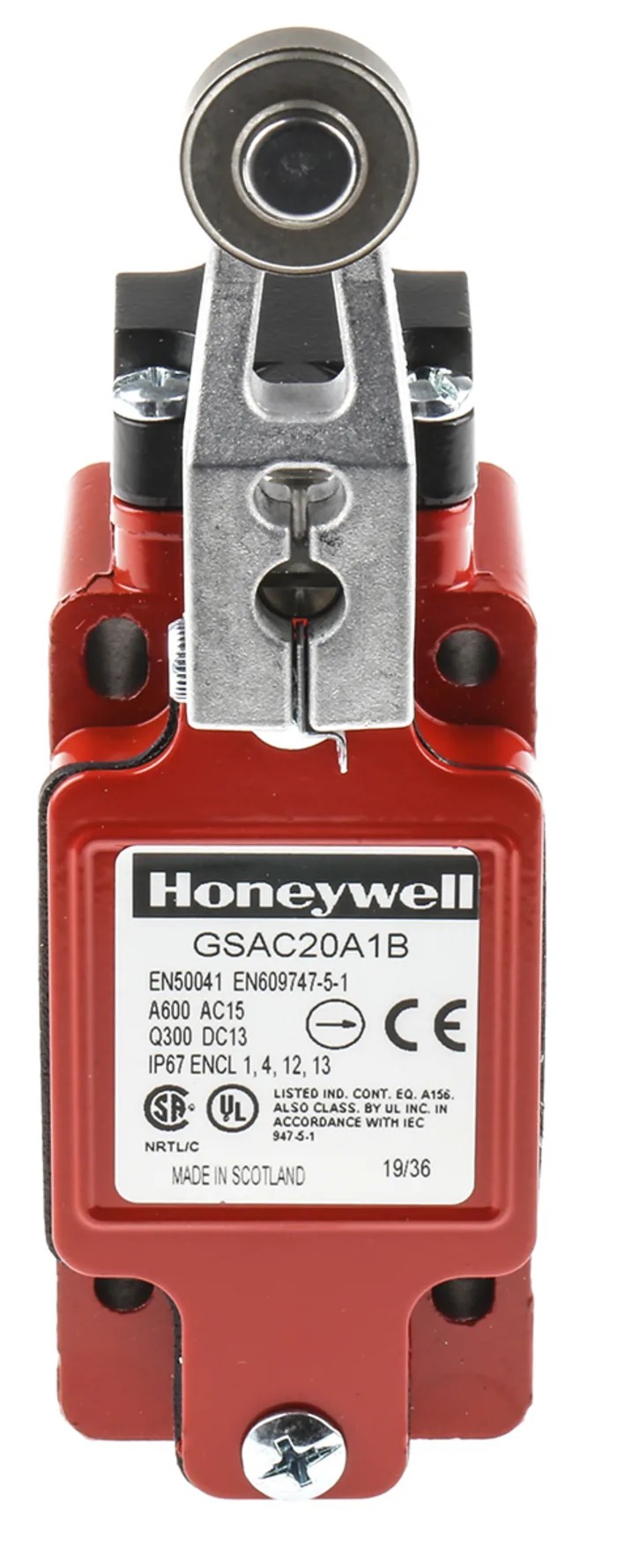

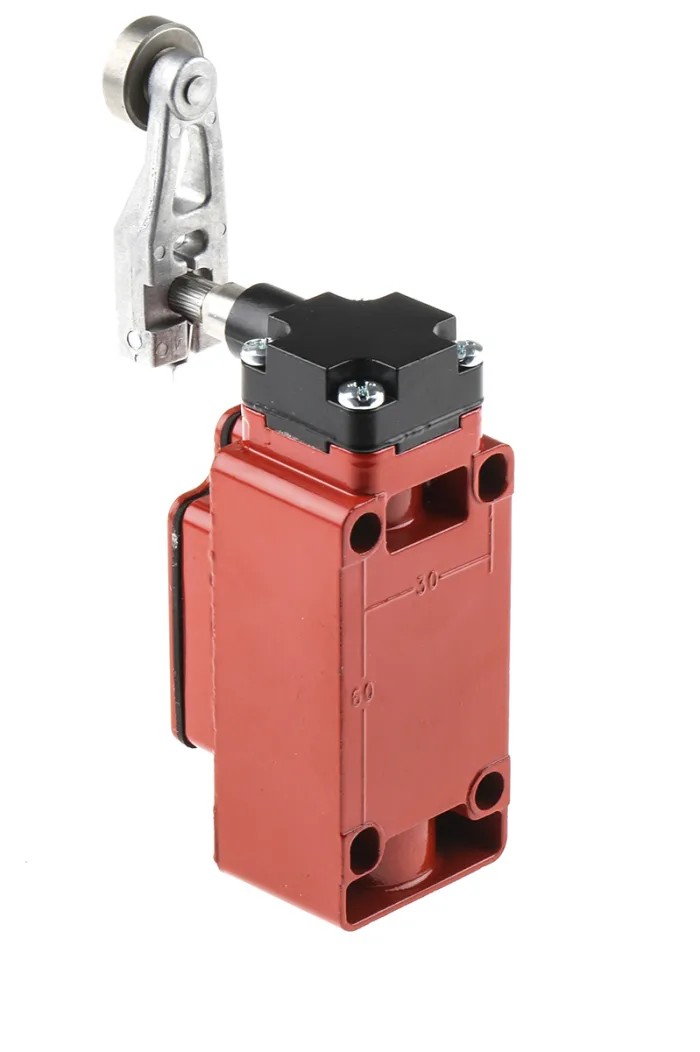

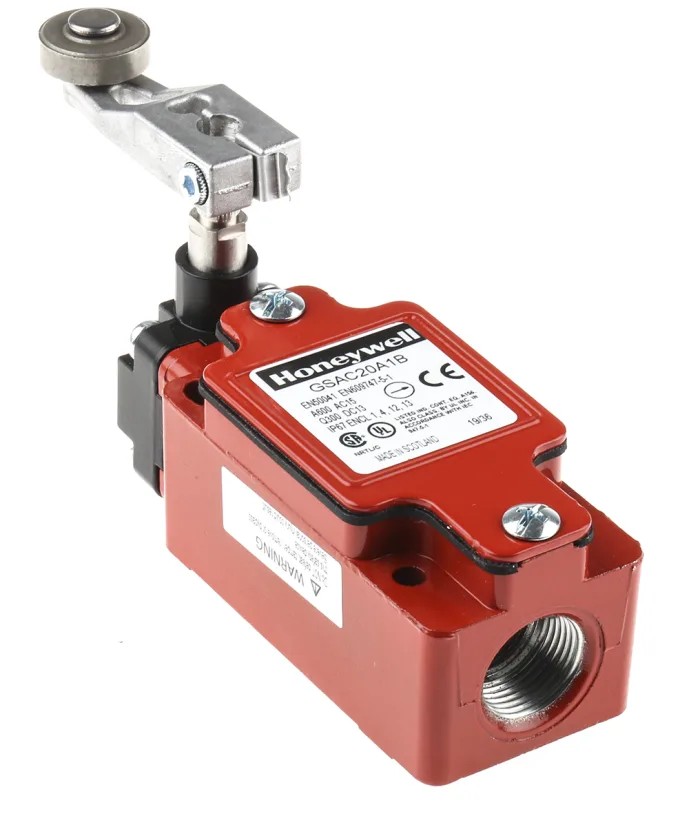

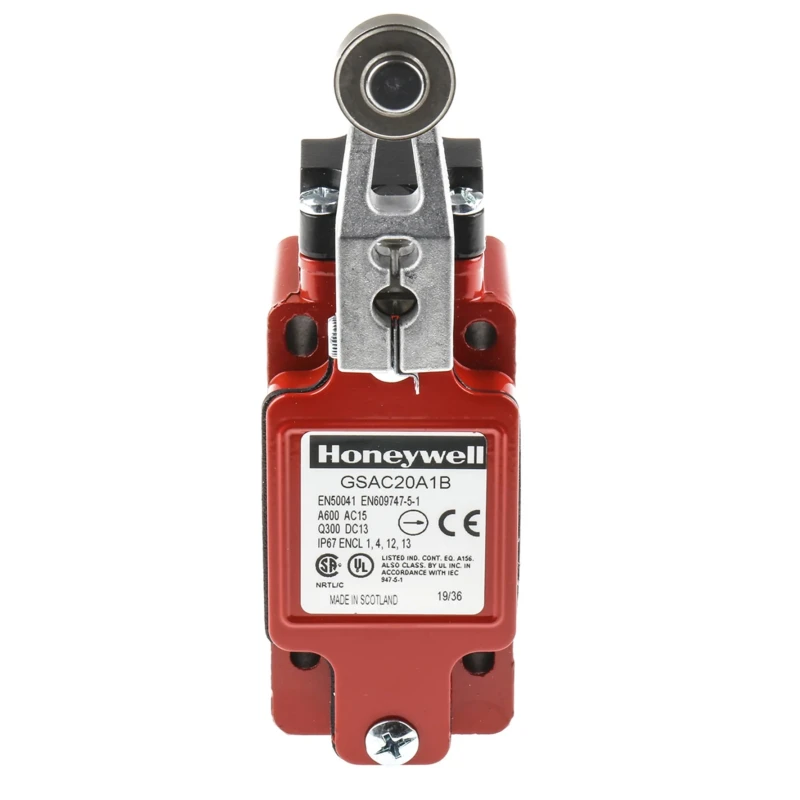

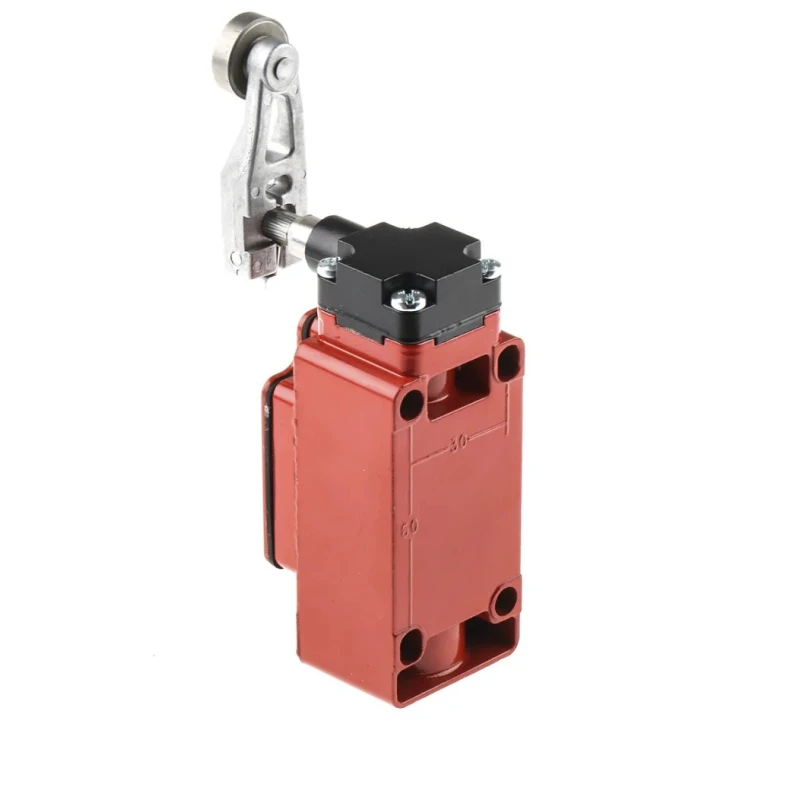

Honeywell Technologies GSA Series Roller Limit Switch, DPDT, IP67, Metal Housing, 600V AC, 6A GSAC20A1B
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Honeywell Technologies |
| Length | 145.8mm |
| Model | GSAC20A1B |
| Depth | 55.9mm |
| IP Rating | IP67 |
| Width | 42mm |
| Housing Material | Metal |
| Series | GSA |
| Maximum Operating Temperature | 85°C |

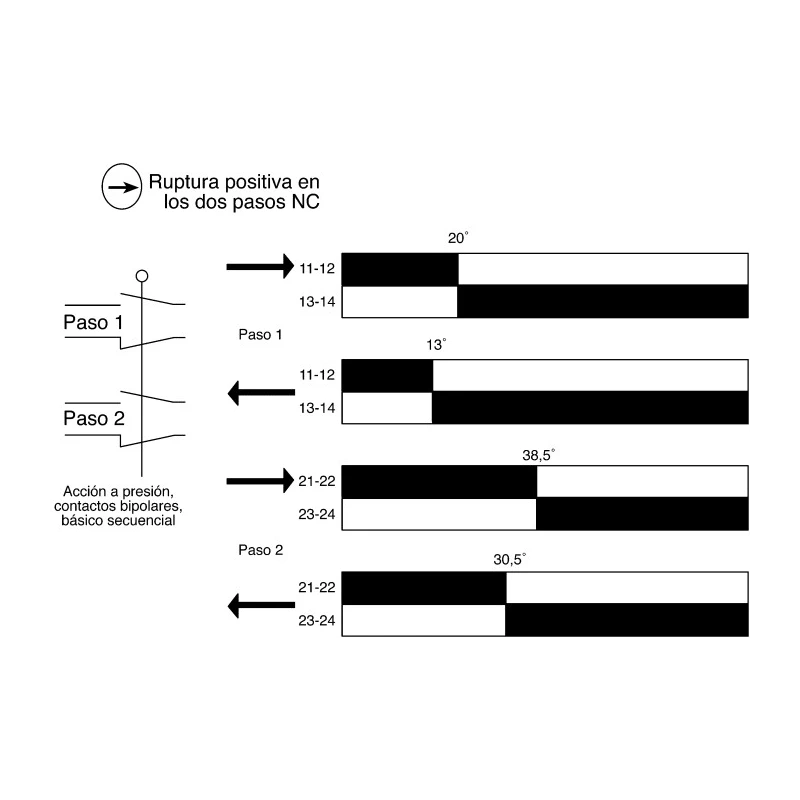

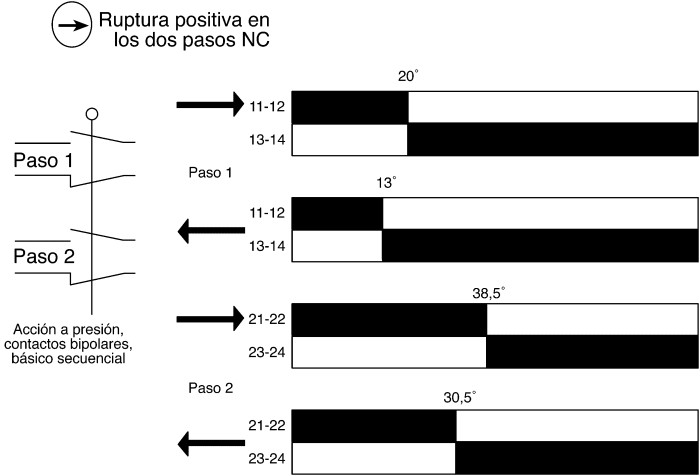

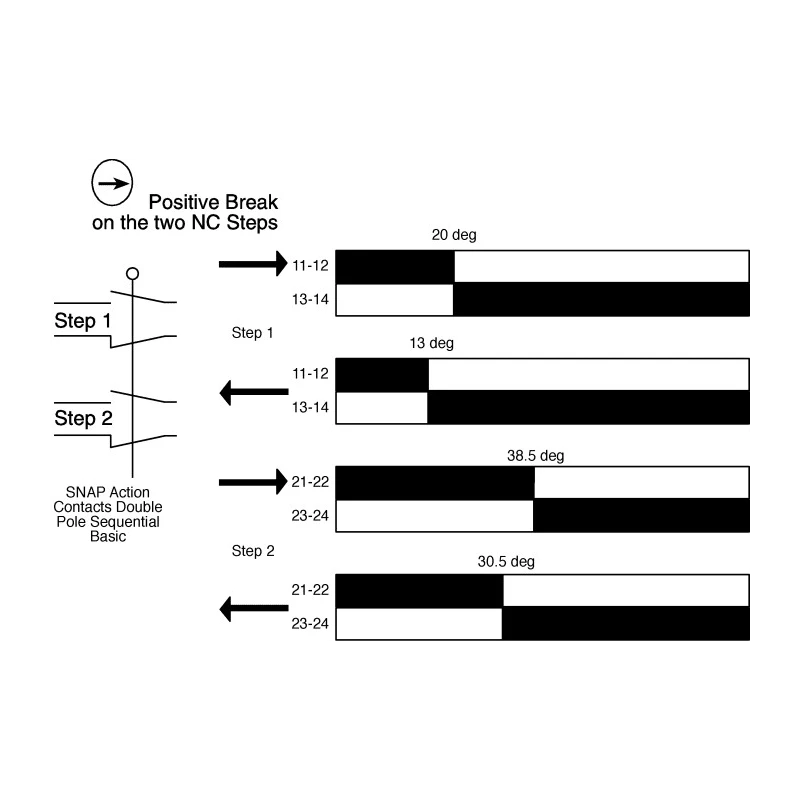

| Contact Configuration | DPDT |
| Actuator Type | Roller |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | UL, CSA, CE, BG |
| Operating Force | 9.7N |
| Mechanical Life | 15000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 600V ac |
| Conduit Entry | M20 x 1.5 |
Key Features
- Equipped with a roller actuator for direct mechanical interfacing.
- Rated for 600V AC and 250V DC voltage operation.
- IP67 metal housing ensures protection against dust and immersion.
- Operating temperature range from -40°C to 85°C enables versatile deployment.
- Mechanical life of 15,000,000 cycles supports long-term reliability.
- Terminals use screw connections for secure wiring and easy maintenance.
- Conduit entry accepts M20 x 1.5 standard cable fitting.
- Suitable for conveyor and factory automation end-of-travel detection.
Product Description
Honeywell Technologies GSAC20A1B Roller Limit Switch is a high-performance electro-mechanical device designed for precise position detection in industrial control systems. Featuring a DPDT snap-action contact configuration and a roller actuator, this switch provides reliable signal switching and quick repeatability in demanding industrial environments.
Constructed with a robust IP67 rated metal housing, it ensures excellent protection against dust ingress and water immersion, making it suitable for harsh manufacturing and automation settings. It supports an operational voltage of up to 600V AC and 250V DC, with a switching current capacity of 6A, enabling control of moderate electrical loads.
The switch operates effectively across a wide temperature range from -40°C to 85°C, supporting diverse environmental conditions. Its mechanical life expectancy is rated at 15 million cycles, ensuring durability for repetitive switching tasks.
The electrical connections are securely facilitated through screw terminal types, allowing straightforward field wiring and maintenance. The enclosure provides a conduit entry sized M20 x 1.5 for standard cable gland installations.
Industrial applications include use in conveyor end-of-travel limit sensing, factory automation systems, motor starters for positional interlocks, safety cut-out detection on material handling equipment, and PLC-based control signal input systems.
Equipped with a roller actuator for mechanical interface reliability. DPDT contact arrangement supports fast, stable switching response. Metal housing design provides dust and immersion resistance (IP67 rating). Wide operating temperature tolerance for varied applications.
Long mechanical lifecycle sustains industrial automation demands. Screw terminal connections offer reliable wiring and maintenance ease. Standard conduit entry allows compatibility with typical cable fittings. Certified to UL, CSA, CE, and BG standards for industrial safety and compliance.
This Honeywell Technologies limit switch is engineered for use in electrical, automation, manufacturing, and material handling sectors, offering dependable performance required in industrial controls. For comprehensive product selection and technical solutions, explore more Limit Switches and automation components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum voltage of 600V AC and 250V DC.
This model features a DPDT (Double Pole Double Throw) contact configuration.
The operating temperature range is from -40°C to 85°C.
The mechanical life expectancy is rated at 15 million cycles.
Electrical connections are made through screw terminals, allowing for secure wiring and easy maintenance.
The metal housing has an IP67 rating, providing protection against dust and immersion in water.

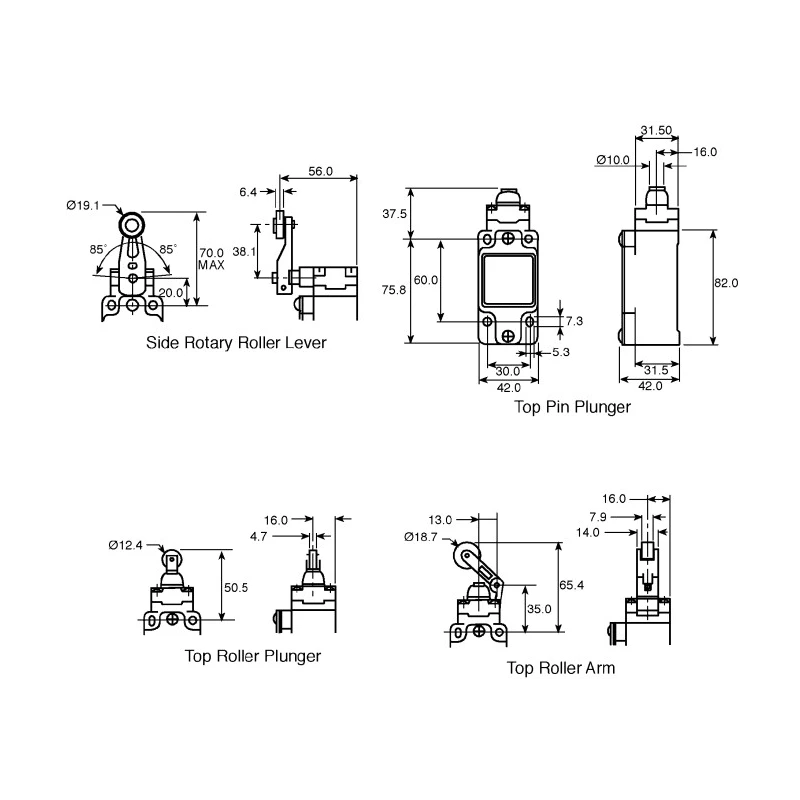

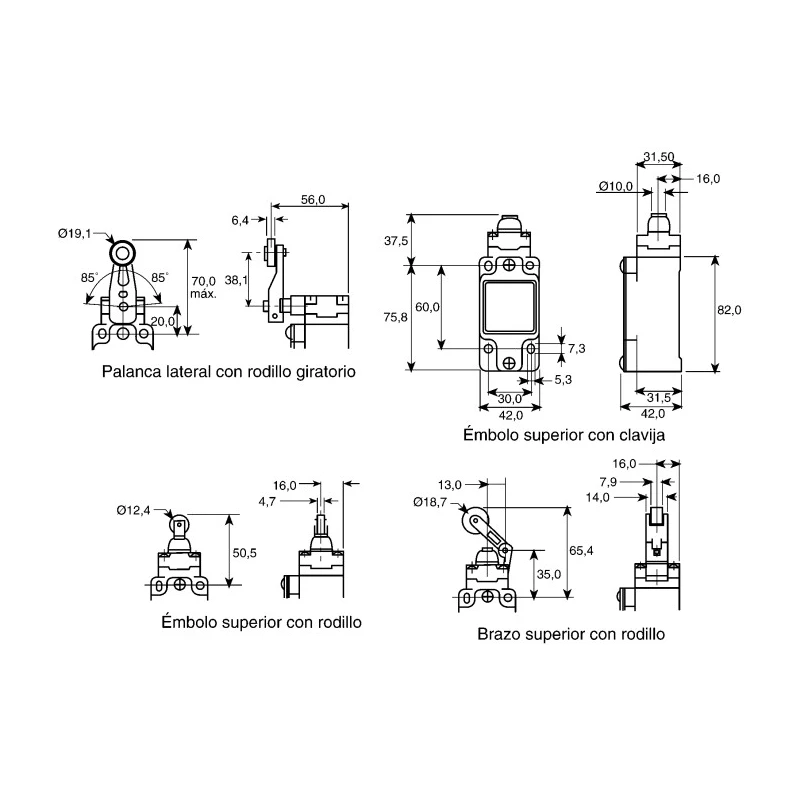

The dimensions are 145.8mm in length, 55.9mm in depth, and 42mm in width.
It uses a roller actuator for direct mechanical interfacing.
It is certified to UL, CSA, CE, and BG standards for industrial safety and compliance.
The switching current capacity is 6A.
It is suitable for applications such as conveyor end-of-travel limit sensing and factory automation systems.
It accepts a conduit entry of M20 x 1.5 for standard cable fittings.
