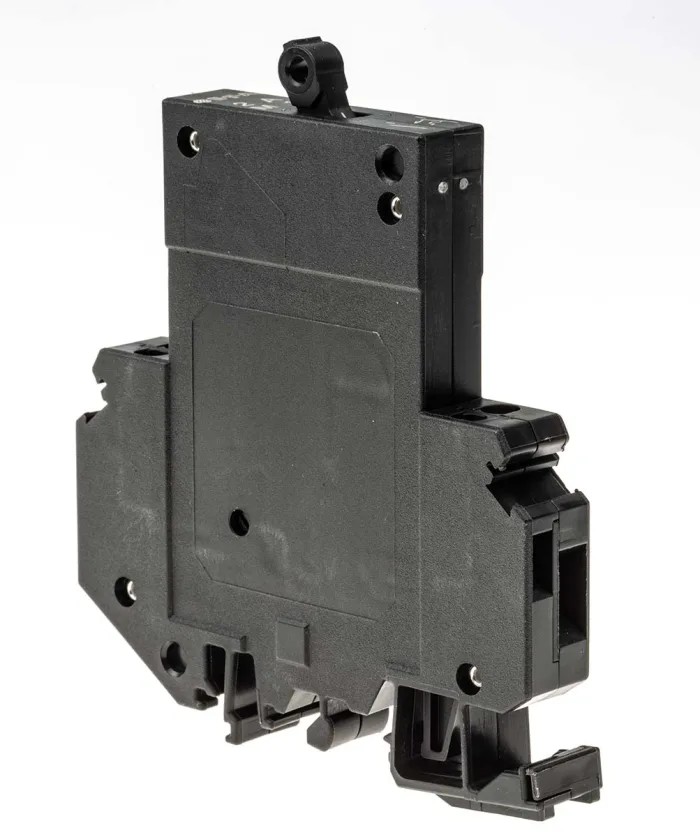

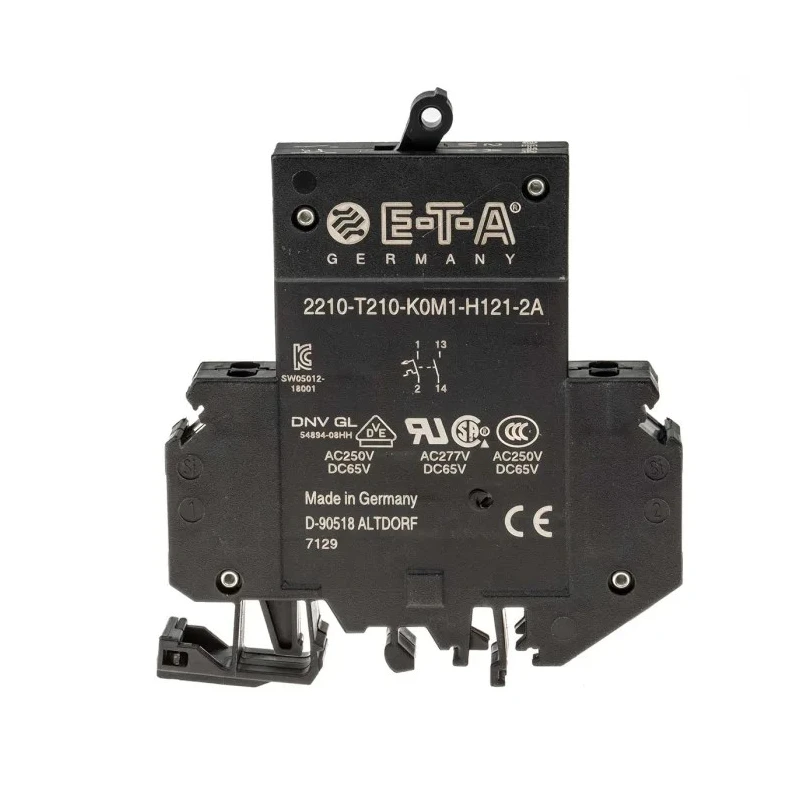

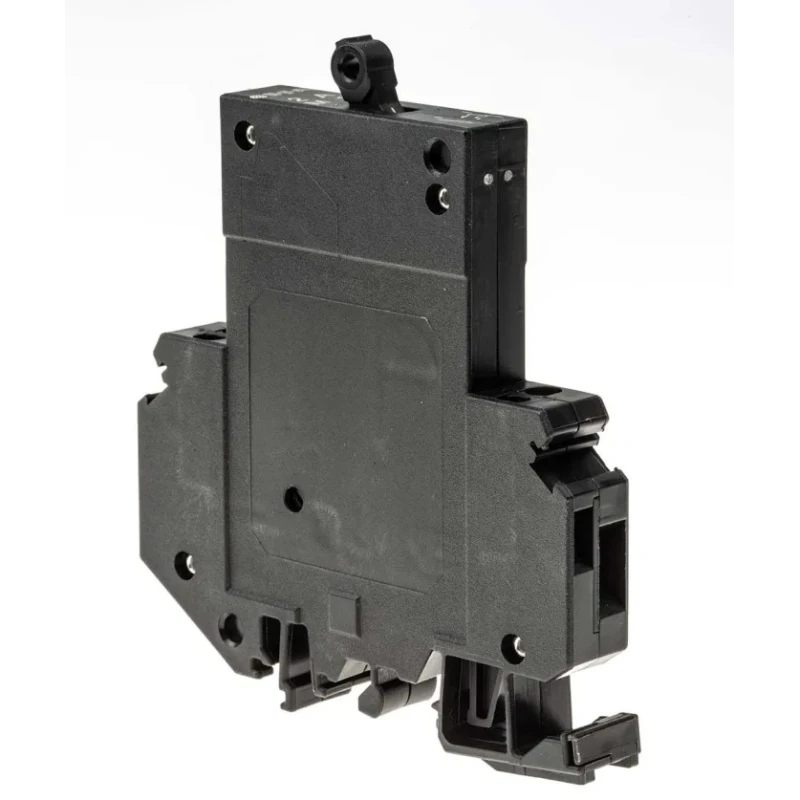

ETA Thermal Magnetic Circuit Breaker 2A Current Rating 1-Pole DIN Rail Mount 2210-T210-K0M1-H121-2A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ETA |
| Height | 29.6mm |
| Model | 2210-T210-K0M1-H121-2A |
| Width | 12.5mm |
| Mount Type | DIN Rail |
| Current Rating | 2A |
| Series | 2210 |
| Terminal type | Screw |
| Breaking Capacity | 25A |
| Number of Poles | 1 |
| Standards/Approvals | CE, RoHS |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 48V dc |
| Tripping Characteristics | Type R |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Medium |
| DIN RAIL MCB+1N/C 2.0ABrand | NEUTRAL |
Key Features
- This circuit breaker utilizes a thermal magnetic tripping mechanism to protect against overloads and short circuits.
- The device features a toggle switch reset actuator for easy operation.
- It supports medium break time and Type R tripping characteristics.
- Rated for 240V AC and 48V DC with a breaking capacity of 25A.
- The narrow 12.5mm width and 29.6mm height enable high-density panel installation.
- Compatible with both Top-hat and G-profile DIN rails and modular DIN 43880 housings.
- Includes an auxiliary contact (NC) for remote signaling of breaker status.
- Manufactured in Germany, meeting CE and RoHS standards.
Product Description
ETA 2210-T210-K0M1-H121-2A Thermal Magnetic Circuit Breaker is designed for precise overload and short circuit protection in industrial, commercial, and process control applications. This single-pole breaker is specifically engineered for DIN rail mounting with a slim profile of 12.5mm width and 29.6mm height, allowing efficient space utilization in electrical panels.
The breaker features a robust thermal magnetic tripping mechanism combined with a toggle switch reset actuator to ensure reliable operation and quick manual reset. Its Type R tripping characteristics and medium break time make it suitable for professional environments requiring consistent protection.
Rated for 2A current with 240V AC and 48V DC voltage ratings and a breaking capacity of 25A, this device provides dependable circuit interruption under fault conditions. The auxiliary normally closed contact permits remote signaling of breaker status, enhancing monitoring capabilities.
Constructed to comply with CE and RoHS standards and manufactured in Germany, the breaker guarantees superior quality and safety compliance. The unit supports both Top-hat and G-profile DIN rails and modular DIN 43880 housings, allowing versatile installation.
Typical life expectancy of this breaker is around 5000 operations, making it a durable choice for automation and control systems in industrial, telecommunications, and precision electronic environments.
Thermal magnetic tripping mechanism provides reliable overload and short circuit protection. Toggle switch reset actuator for easy manual resetting. Compatible with Top-hat and G-profile DIN rails and modular housings. Auxiliary contact (NC) enables remote signaling of breaker status.
Compact dimensions support high-density panel installations. Certified with CE and RoHS compliance, manufactured in Germany. Rated 2A current, 240V AC, 48V DC with 25A breaking capacity. Designed for precision applications in process control and telecom sectors.
Typical life of 5000 operations ensures long-term reliability. Explore more options in the Thermal Circuit Breaker category on EnvMart to find the right solution for automation, electrical distribution, and industrial safety needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 2A.
It is rated for 240V AC and 48V DC.
The breaking capacity is 25A.
It utilizes a thermal magnetic tripping mechanism for overload and short circuit protection.
It features a toggle switch reset actuator for easy manual resetting.
The breaker has a width of 12.5mm and a height of 29.6mm, allowing for compact installations.
Yes, it is compatible with both Top-hat and G-profile DIN rails.
The circuit breaker features Type R tripping characteristics.
It complies with CE and RoHS standards.
The typical life expectancy is around 5000 operations.
Yes, it includes an auxiliary normally closed contact for remote signaling of breaker status.
It is manufactured in Germany.
