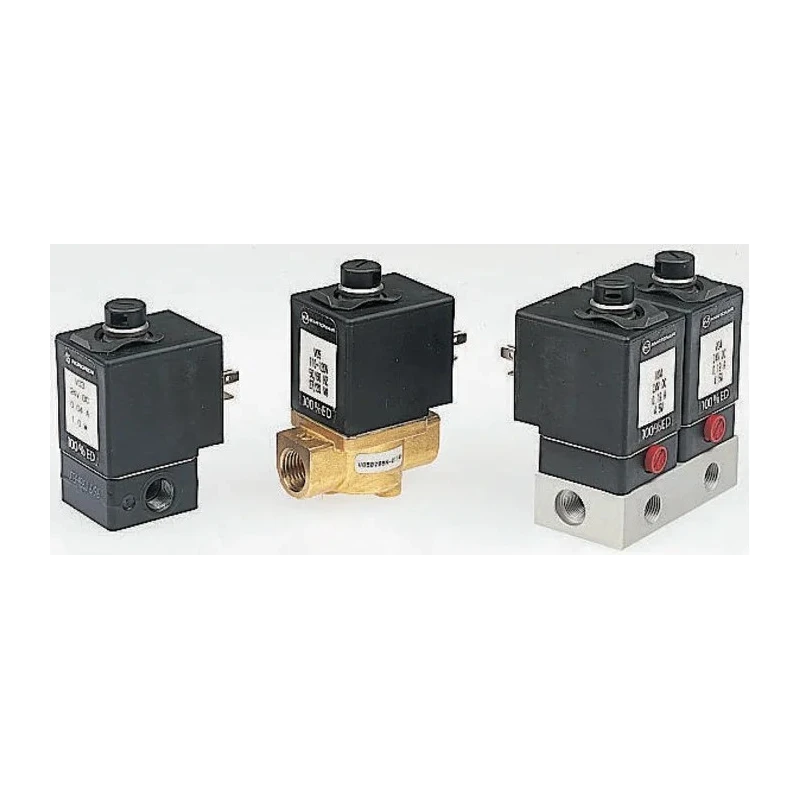

Norgren Pneumatic Solenoid Valve 3/2 NC Solenoid/Spring Manifold In-Line Mount 24V dc 4.5W V05X486M-B633A

Norgren V05X486M-B633A Pneumatic Solenoid Valve 3/2 NC Solenoid/Spring series operates on 24V dc voltage with 4.5W solenoid power, designed primarily for controlling air flow in pneumatic systems. It is suitable for manifold and in-line mounting configurations facilitating versatile installation options.

The valve is constructed with a polyethylene terephthalate body combined with nitrile rubber (NBR) seals, offering robust performance against moisture, oil, grease, and abrasion. It features a push-in port size of 1/4 inch with G thread standard, supporting a maximum operating pressure of 10 bar and pilot pressure range from 0 to 10 bar.

Its compact size, with 69mm length, 55mm height, and 24mm width, allows for reduced installation height and space utilization within industrial setups. The electrical connection is provided via a 3-Pin Plug compliant with DIN 43650 Form A standard, with connector plug to be ordered separately.

This valve series employs a poppet valve mechanism, ensuring a normally closed function with rapid response times and longevity due to low friction compared to spool valves. The valve is compatible with compressed air systems, whether filtered, lubricated, or non-lubricated, making it a versatile component in pneumatic controls.

The exhaust diffuser is supplied as standard, complemented by durable stainless-steel tube and spring components enhancing reliability under industrial conditions. The V05 series also features a glass-reinforced removable nylon coil with stainless iron armature for long-term durability.

Operates efficiently at 24V dc with 4.5W solenoid power consumption. 3-port push-in design with 1/4 inch port size and G thread standard. Nitrile Rubber seals ensure excellent resistance to environmental and operational wear.

Compact manifold or in-line mount with DIN mount pattern. Designed for a maximum operating pressure of 10 bar and temperature range from -20°C to 50°C. Provides fast response and durability with a 3/2 Normally Closed poppet valve function.

Compatible with filtered, lubricated, or non-lubricated compressed air. Includes standard exhaust diffuser and stainless steel spring components. Suitable for industrial pneumatic applications including automation, manufacturing, and fluid power control.

This Norgren Pneumatic Solenoid Valve is ideal for industrial, manufacturing, and automation pneumatic systems requiring reliable and compact valve control solutions. Explore more pneumatic valve options and accessories within EnvMart for comprehensive fluid power management.
