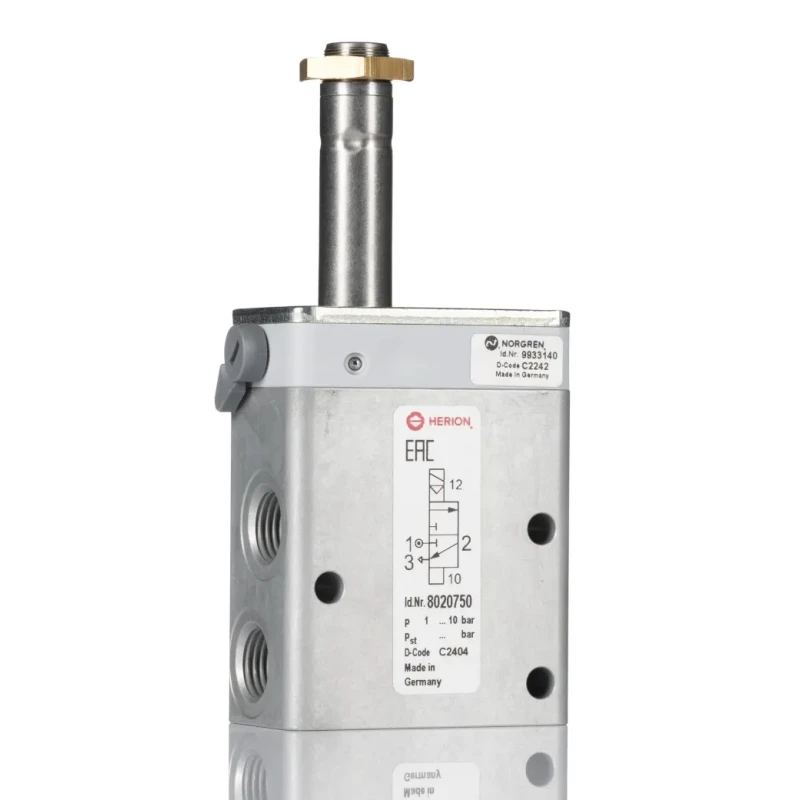

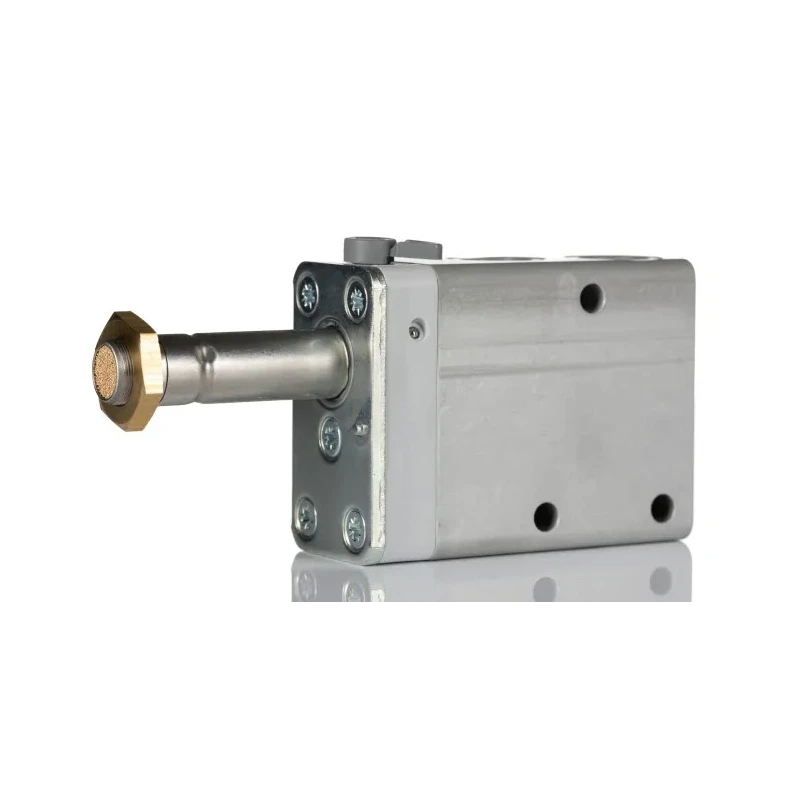

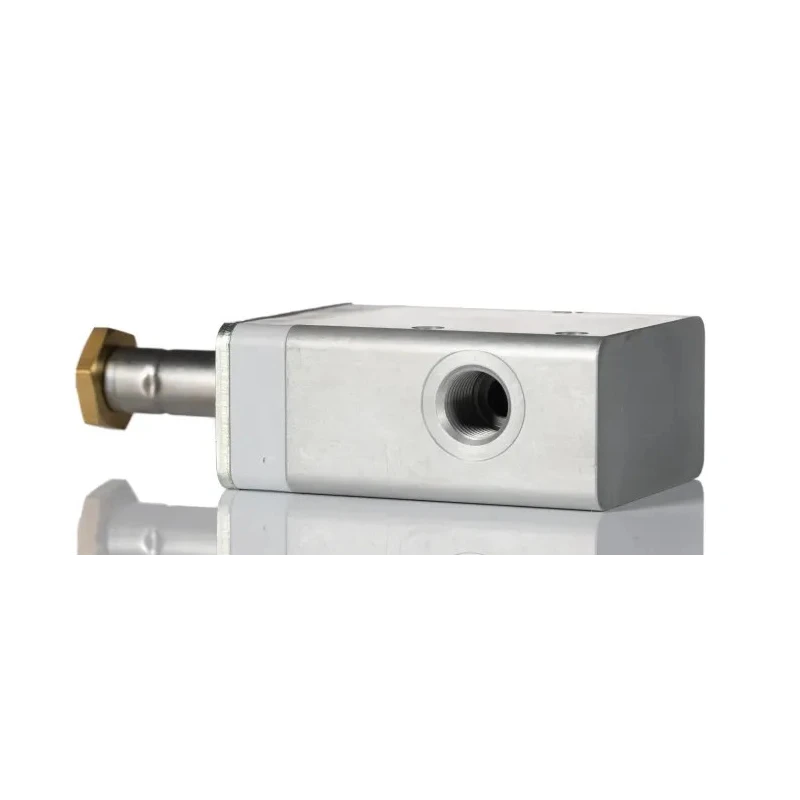

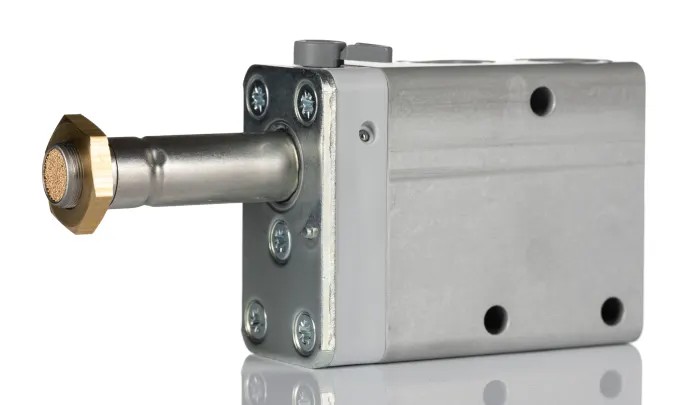

Norgren Pneumatic Solenoid Valve 5/2 Way, 3/2 Way G Series, 230V AC, 24V DC 4 Ports, 10 bar Pressure 8020750000000000

Norgren 8020750000000000 Pneumatic Solenoid Valve 5/2 Way, 3/2 Way offers robust control of compressed air in pneumatic systems. Operating at 230V AC or 24V DC, this valve features a corrosion-resistant anodised aluminium body and durable nitrile rubber (NBR) seals for long service life. With a maximum flow capacity of 3000 L/min and a working pressure up to 10 bar, it is well suited to industrial environments such as chemical processing, food production, and logistics.

This valve provides responsive control with a short switching time of 20ms. It mounts inline easily with common G1/4 threaded connections and functions effectively within operating temperatures ranging from -10 to 60 degrees Celsius. The design complies with ATEX IECEx FM standards, making it safe for hazardous areas where explosive atmospheres may occur.

Compact and lightweight, the valve measures 120mm in length, 41mm in width, and 30mm in height, allowing integration into complex pneumatic systems without requiring excessive space. The unit supports 2 positions and a valve function of 5/2 Way or 3/2 Way to suit varied operational needs.

Constructed with anodised aluminium body for corrosion resistance. Operates at voltages of 230V AC and 24V DC for versatile power supply options. Features nitrile rubber (NBR) seals for reliable air leakage protection. Supports a maximum flow rate of 3000 L/min suitable for heavy-duty industrial applications.

Designed for inline mounting to facilitate easy installation in existing systems. Operates efficiently between temperatures of -10°C to 60°C for various environments. Includes ATEX IECEx FM hazardous area certification for safe use in explosive atmospheres.

Compact dimensions of 120mm length, 41mm width, and 30mm height allow installation in tight spaces.

This Norgren pneumatic valve is ideal for industrial, manufacturing, chemical processing, and logistics applications where precise and reliable pneumatic control is critical. Its robust construction and hazardous area certifications ensure safe operation in demanding environments while maintaining high flow capacity and responsiveness.

Explore the full range of Pneumatic Solenoid Valves at EnvMart for products designed to enhance your industrial pneumatic systems.
