Pepperl + Fuchs Mounting Bracket for Use with +U1+, +U9, VariKont, DIN 43662, DIN 43694, EN 50024, EN 50025, EN MH 04-2681F

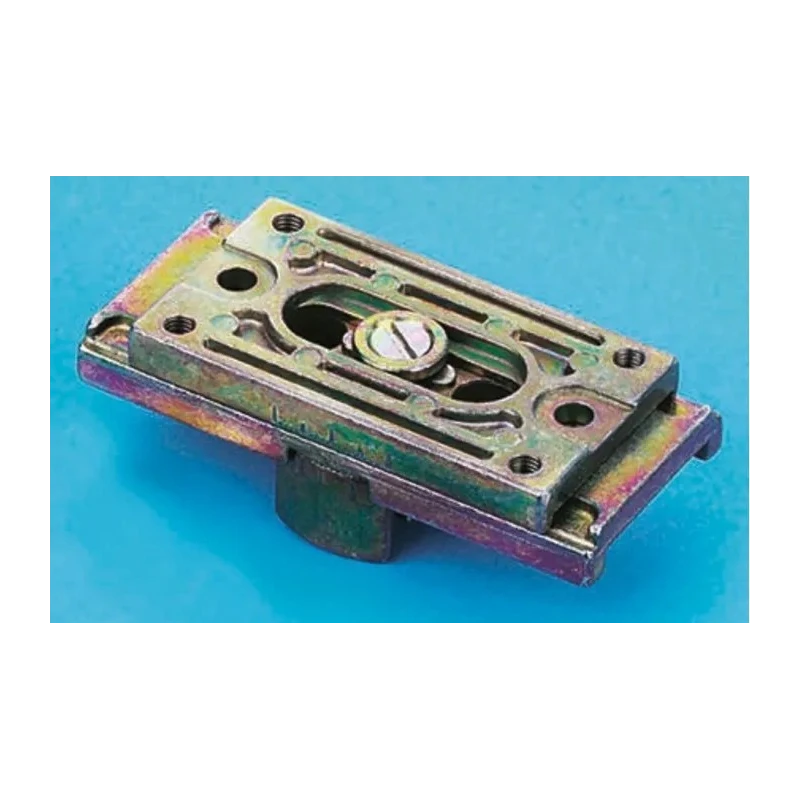

Pepperl + Fuchs MH 04-2681F mounting bracket is a precision-engineered two-part accessory designed for mounting sensor types +U1+, +U9, and the Varikont series. It offers sturdy and adaptable mounting solutions complying with multiple DIN and EN industrial standards.

The bracket features a compact design with dimensions of 4 mm height, 9 mm width, and 28 mm depth, ensuring secure and accurate sensor placement. Its semi-fixed construction allows up to 30 mm of movement along the sensor axis, enabling fine adjustments to sensor positioning for optimal operation.

Specifically, the 'M' type variant of this bracket provides 12 mm movement along the sensor axis and allows rotation in the horizontal plane, supporting versatile mounting arrangements to fit a variety of installations.

This Mounting Bracket has been manufactured to meet rigorous standards including DIN 43662, DIN 43694, and multiple EN standards (EN 50024, EN 50025, EN 50037), alongside IEC 68-2-27 and IEC 68-2-6, which cover environmental and mechanical durability.

Although it lacks hazardous area certification, the bracket's robust design makes it ideal for most industrial, manufacturing, automation, and control system applications. Its compatibility with varikont sensors and other sensor types allows integration into automated machinery, process control instrumentation, and factory assembly lines.

Constructed as a two-part semi-fixed bracket for flexible mounting with Varikont range sensors. Dimensions include height 4 mm, width 9 mm, and depth 28 mm for precise fitting. Enables up to 30 mm movement along the sensor axis for adjustable positioning.

Compatible with Varikont 'M' type sensors providing 12 mm axis movement and rotation in the horizontal plane. Meets stringent standards including DIN 43662, DIN 43694, EN 50024, EN 50025, EN 50037, IEC 68-2-27, and IEC 68-2-6.

Suitable for industrial sensor mounting in automation, manufacturing, and control applications. Explore the extensive range of Pepperl + Fuchs accessories and sensor mounting solutions on EnvMart for reliable industrial automation components.
