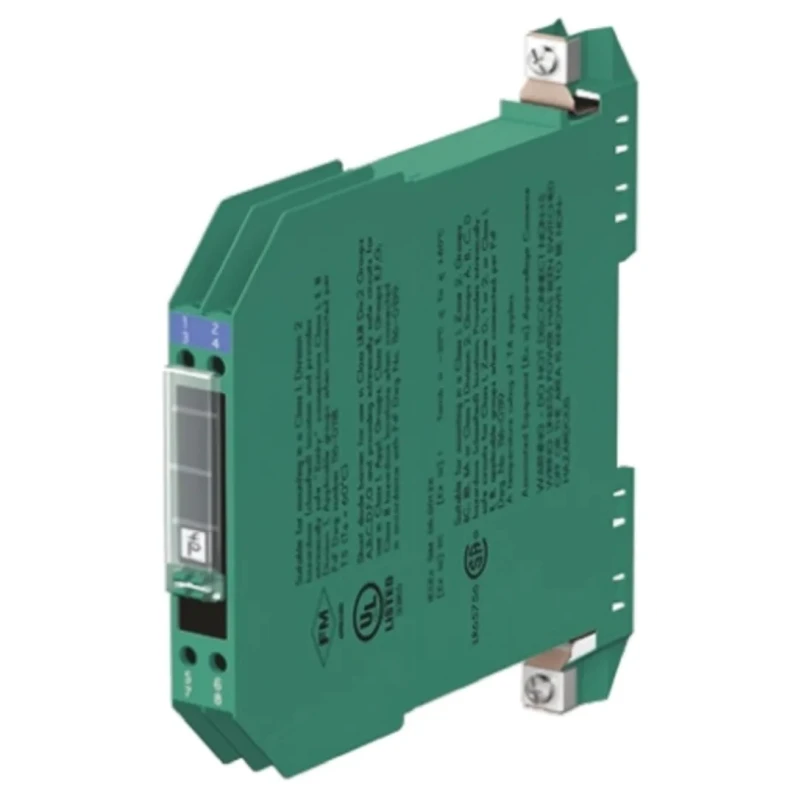

Pepperl + Fuchs 2 Channel Zener Barrier, ATEX Certified, DIN Rail Mount, 10.4V DC Supply Voltage Z764
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Pepperl + Fuchs |
| Model | Z764 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | Z764 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number Of Channels | 2 |
| Supply Voltage | 10.4V dc |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | TUV, IEC, EN, CE |
| Barrier Type | Zener Barrier |
| Safety Current Resistance | 1033Ω |
| Maximum Safety Current | 12mA |
| Maximum Safety Voltage | 250V |
Key Features
- Equipped with 2 channels for dual safety barrier protection.
- Mounts easily on DIN rail ensuring secure and compact installation.
- Operates on 10.4V DC supply voltage optimized for signal conditioning.
- Features screw terminal type for reliable electrical connections.
- Rated IP20 for basic protection against solid objects.
- Maximum safety current of 12mA with 1033Ω safety current resistance.
- Operational temperature range from -20°C to 60°C suited for industrial environments.
- Complies with TUV, IEC, EN and CE standards for safety and quality assurance.
Product Description
Pepperl + Fuchs Z764 2 Channel Zener Barrier is a specialized electrical component engineered for intrinsically safe applications in hazardous areas. Featuring ATEX certification, this dual-channel device prevents direct grounding and secures electrical signals between safe and hazardous zones to avoid ignition risks.
Designed to mount on a standard DIN rail, the Z764 barrier uses screw terminals for robust and simple electrical connections. It operates on a 10.4V DC supply and limits the maximum safety current to 12mA with a resistance of 1033Ω, ensuring optimal protection for connected instrumentation.
The product's IP20 rating offers protection against solid objects larger than 12.5mm, suitable for controlled industrial environments. Its operating temperature range of -20°C to 60°C allows use in a variety of conditions common to automation and electrical systems.
The housing is constructed with durable Makrolon®, providing excellent electrical insulation while maintaining mechanical strength. Complying with stringent international standards including TUV, IEC, EN, and CE, the barrier assures safety and regulatory compliance.
Typical applications include use as isolation barriers in signal conditioning circuits and thermocouple measurement systems, where intrinsic safety is critical. This device impedes direct grounding, only allowing safety ground in fault conditions, thereby maintaining circuit integrity and user safety.
Equipped with 2 channels for dual safety barrier protection. DIN rail mount type supports easy integration into existing control panels. Operates at 10.4V DC supply voltage optimized for hazardous area signal conditioning.
Screw terminal connection ensures reliable electrical contact. IP20 rated protection suitable for industrial indoor use. Maximum safety current of 12mA with 1033Ω safety current resistance. Operating temperature range from -20°C to 60°C.
Conforms to TUV, IEC, EN, and CE standards for hazardous area equipment. Durable Makrolon® housing provides electrical insulation and mechanical robustness. Intended for use in intrinsically safe circuits, isolators and thermocouple barrier applications.
Discover more Industrial Signal Conditioners and Safety Barriers at EnvMart for your hazardous area and automation safety requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum safety current for this model is 12mA, with a safety current resistance of 1033Ω.
This unit operates within a temperature range of -20°C to 60°C, making it suitable for various industrial environments.
It features screw terminals, ensuring reliable electrical connections for secure operation.
Yes, this Zener barrier is ATEX certified, making it suitable for use in hazardous areas.
The Z764 operates on a supply voltage of 10.4V DC, optimized for signal conditioning in hazardous areas.
The product has an IP20 rating, providing basic protection against solid objects larger than 12.5mm.
This model is equipped with 2 channels for dual safety barrier protection.
It complies with TUV, IEC, EN, and CE standards, ensuring safety and quality assurance.
The maximum safety voltage for this Zener barrier is 250V.
This unit is designed for DIN rail mounting, allowing for easy integration into existing control panels.
The housing is constructed with durable Makrolon®, providing excellent electrical insulation and mechanical strength.
It is typically used as an isolation barrier in signal conditioning circuits and thermocouple measurement systems, where intrinsic safety is critical.
