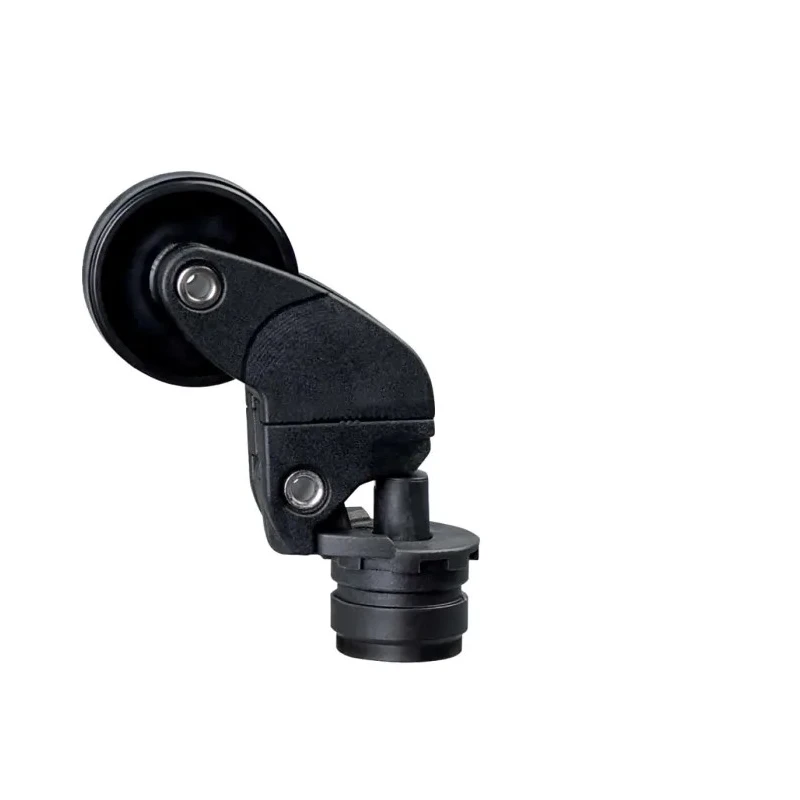

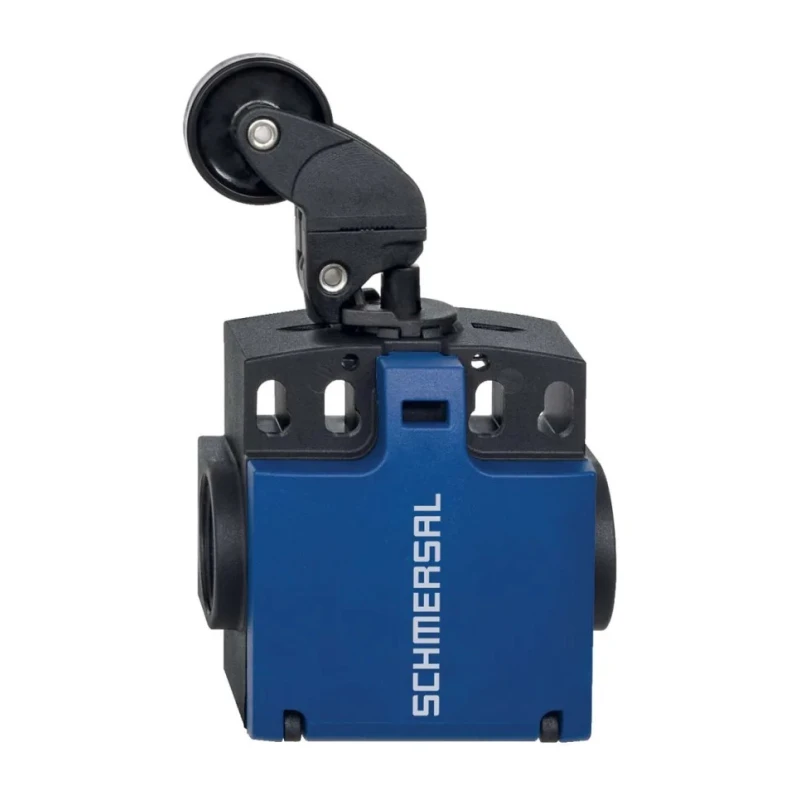

Schmersal PS226-T12-K250 Series Angle Roller Lever K250 Limit Switch, 1 NO 2 NC, IP67 IP66 Protection, Plastic 103015089
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 33mm |
| IP Rating | IP67, IP66 |
| Width | 59mm |
| Housing Material | Plastic, Fibreglass Reinforced |
| Protection Class | IP66, IP67 |
| Standards | ISO 13849-1 |
| Series | PS226-T12-K250 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 1 NO/2 NC |
| Actuator Type | Angle Roller Lever K250 |
| Contact Type | Silver |
| Minimum Operating Temperature | -30°C |
| Switching Current | 3A |
| Terminal type | Screw |
| Hazardous Area Certification | EAC, cULus, CCC |
| Operating Force | 40N |
| Mechanical Life | 10000000Operations |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | 2 x (M20 x 1.5) |
| Mechanical life, minimum | 10,000,000 Operations |
| B10d Normally-closed contact (NC) | 20,000,000 Operations |
Key Features
- The actuator is an Angle Roller Lever K250 suited for precise limit switching.
- The housing is made of durable plastic reinforced with fibreglass for industrial use.
- It provides protection ratings of IP66 and IP67 for harsh environmental conditions.
- Electrical contacts are silver type optimized for a switching current of 3A.
- Capable of operating across a temperature range from -30°C up to 80°C.
- Supports switching voltages of 24V DC and 240V AC.
- Mechanical life rated for 10 million operations ensuring durability.
- Features screw type terminals and 2 conduit entries (M20 x 1.5) for secure wiring.
Product Description
Schmersal 103015089 is an industrial-grade Angle Roller Lever K250 Limit Switch designed for reliable position detection and control in electrical automation systems. Manufactured in Germany, this limit switch features a plastic fibreglass reinforced housing that ensures robustness in demanding industrial conditions.
The device employs 1 Normally Open (NO) and 2 Normally Closed (NC) silver contact configurations, supporting a switching current of 3A. It operates effectively across a temperature range from -30°C to 80°C, making it suitable for diverse operational environments.
Equipped with IP66 and IP67 protection classes, the switch is well-sealed against dust and water ingress, thereby ensuring longevity and consistent performance. It accommodates screw terminals for reliable electrical connections and includes two conduit entries sized M20 x 1.5 for flexible installation options.
This model complies with internationally recognized standards ISO 13849-1 and IEC 60947-5-1 and holds certifications such as EAC, cULus, and CCC, assuring quality and safety for industrial applications.
The mechanical life expectancy of the switch is 10,000,000 operations, with a B10d value for normally-closed contacts rated at 20,000,000 operations, reflecting its endurance under frequent use.
The actuator type is an Angle Roller Lever K250 enabling precise movement detection. The housing material uses plastic with fibreglass reinforcement for impact resistance. Operating force required is 40N, suitable for control systems requiring reliable actuation.
Supports switching at 24V DC and 240V AC for versatile circuit integration. Designed for environments requiring protection levels of IP66 and IP67 against dust and water. Screw terminal type ensures secure electrical connections.
Conduit entries provide convenient wiring access for installation. Certified for industrial safety and quality standards including ISO 13849-1, IEC 60947-5-1, EAC, cULus, and CCC. This limit switch is ideal for use in industrial automation, manufacturing equipment, processing plants, HVAC systems, and other commercial electrical control applications.
Explore our Electronics & Electricals category for a comprehensive range of Limit Switches and other automation components from Schmersal and leading brands at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current rating of this limit switch is 3A.
This model has protection ratings of IP66 and IP67, making it suitable for harsh environmental conditions.
It operates effectively within a temperature range of -30°C to 80°C.
The mechanical life expectancy of this limit switch is rated for 10 million operations.
It employs silver contacts, configured as 1 Normally Open (NO) and 2 Normally Closed (NC).
The dimensions of this model are 33mm in length and 59mm in width.
This limit switch features an Angle Roller Lever K250 actuator type for precise movement detection.
It includes two conduit entries sized M20 x 1.5 for flexible wiring options.
It complies with ISO 13849-1 and IEC 60947-5-1 standards, ensuring quality and safety.
The required operating force for this model is 40N.
It supports switching voltages of 24V DC and 240V AC.
This limit switch is manufactured in Germany.
