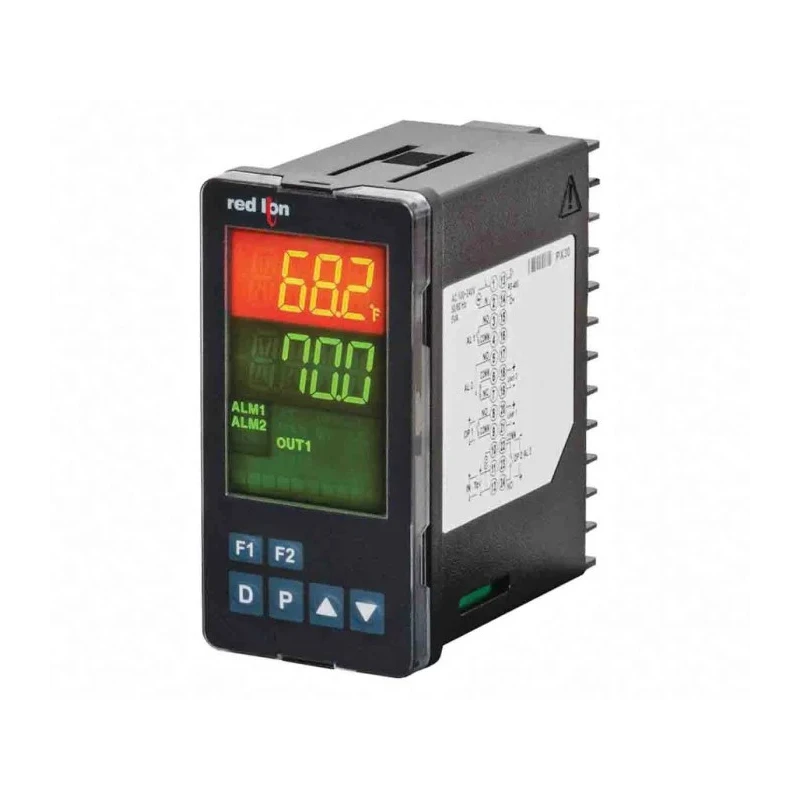

Red Lion PXU Panel Mount PID Temperature Controller 2 Input 1 Output Relay 240V AC PXU11A30

Free Delivery in India | Lowest Global Shipping Charges

Red Lion PXU Panel Mount PID Temperature Controller 2 Input 1 Output Relay 240V AC PXU11A30

Name: Red Lion PXU Panel Mount PID Temperature Controller 2 Input 1 Output Relay 240V AC PXU11A30
Brand: Red Lion
SKU: 320437
Price: 315.36 USD
Availability: InStock



Category Temperature Controllers Brand Red Lion Condition New

Specifications

Country of Origin	India
Display Type	LCD
Brand	Red Lion
Length	95.8mm
Model	PXU11A30
IP Rating	IP65
Width	48mm
Mount Type	Panel Mount
Number of inputs	2
Output type	Relay
Series	PXU
Input Type	Analogue
Maximum Operating Temperature	50°C
Control Type	PID Controller
Minimum Operating Temperature	0°C
Maximum Current	3A
Number of outputs	1
Terminal type	Screw
Maximum Voltage	250V
Standards/Approvals	EN 61326-1, EN 61010-1, CE Approved, UL Listed, RoHS Compliant, CISPR 11 Class A
Maximum Supply Voltage	240V ac
Digital Comms	RS485
Panel Depth	72mm

Key Features

Features PID control for accurate temperature management.
Equipped with 2 programmable user inputs for versatility.
Offers 1 output relay capable of handling up to 3A current.
Designed for panel mounting with IP65 rating for protection.
Includes RS485 digital communications for integration.
Accepts multiple input signals including TC, RTD, 0-10 V and 0/4-20 mA.
Front panel or PC programming for ease of use.
LCD display for clear user interface.

Product Description

Red Lion PXU11A30 is a robust panel mount PID temperature controller designed for industrial process control applications. It supports 2 analogue inputs and 1 output relay, enabling precise temperature regulation necessary for manufacturing, HVAC systems, water treatment, and laboratory processes. Operating on 240V AC power supply, it ensures reliable and consistent functioning within an operating ambient temperature range of 0°C to 50°C.

This device features advanced PID control algorithms, including on-demand auto-tuning to optimize control response. The controller accepts multiple input types such as thermocouples (TC), resistance temperature detectors (RTDs), 0-10 V voltage signals, 0/4-20 mA current loops, and low-level millivolt signals, making it highly adaptable for diverse sensing environments.

Its single output relay can handle up to 3 amperes, suitable for controlling heaters or other loads. Communication with external systems is supported via RS485 interface, facilitating integration into automation networks. The controller is configured either through an easy-to-read LCD front panel or via PC software, enabling flexible user programming and setting adjustments. IP65-rated housing offers protection against dust and water ingress, ideal for demanding industrial conditions.

PID control for precise temperature regulation. Two configurable analogue inputs supporting TC, RTD, voltage and current signals. Single relay output rated for a maximum of 3A. RS485 digital communication for network connectivity.

On-demand auto-tuning of PID parameters for optimal performance. Panel mount design with a compact 1/8 DIN form factor. LCD display for clear monitoring and control feedback. Wide operating temperature range from 0°C to 50°C.

Conforms to international safety and EMC standards including CE, UL, RoHS. Suitable for industrial manufacturing, HVAC control, process automation, and laboratory applications.

Set includes one Red Lion PXU11A30 PID temperature controller unit. Explore more Temperature Controllers and process automation solutions in the Electronics & Electricals category on EnvMart for reliable industrial control equipment.
