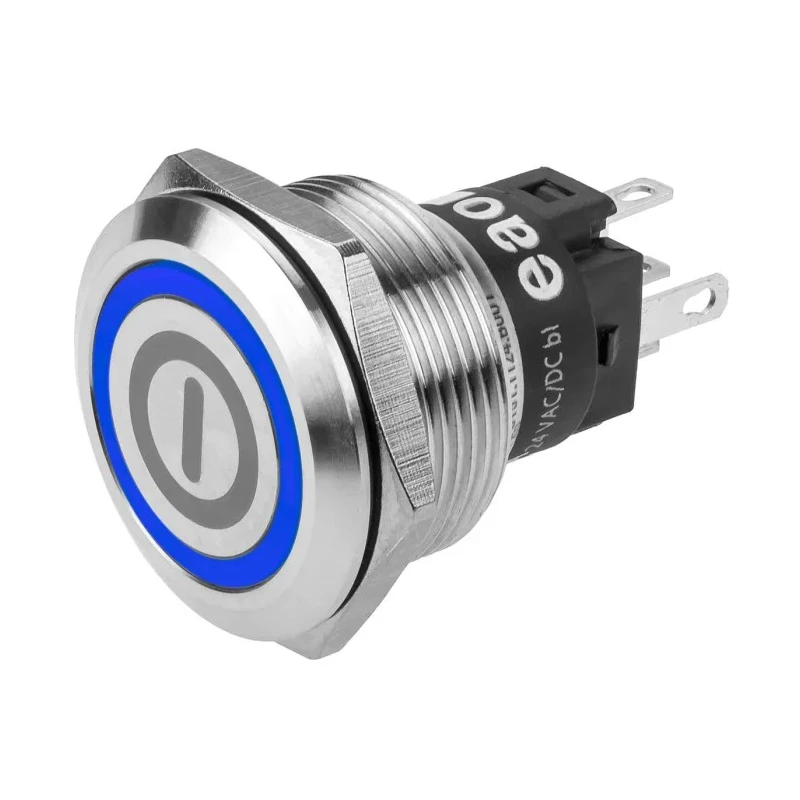

EAO 82 Series Illuminated Momentary Push Button Switch with Blue LED, Panel Mount, 22.3 mm Cutout, SPDT 82-6151.1124.B001

The EAO 82-6151.1124.B001 is an illuminated push button switch designed for momentary operation and panel mount installation, featuring a 22.3 mm cutout size. This switch integrates a blue LED to provide clear illumination and feedback, making it ideal for control and signaling applications in complex electrical and automation systems.

Constructed to meet rigorous industrial standards with approvals including CB, CCC, cUL, and UL, it offers reliable performance with a single pole double throw (SPDT) contact configuration. The switch supports both AC and DC contact voltages up to 240 volts and a contact current of 3 amps.

Its vandal-resistant and impact-resistant design, along with gold-plated silver contacts for low voltage/currents, delivers high reliability. The IP65 and IP67 ingress protection ratings ensure the switch performs well in wet, dusty, or harsh environments.

The device operates effectively within a wide temperature range from -30°C to 70°C and is crafted from robust materials such as stainless steel anodised aluminium or brass-coloured switches, providing durability for demanding industrial use.

Applications include exposed public areas like ticketing and vending machines, industrial machinery and factory equipment, elevators and people movers, building management systems including access control and security, as well as medical and food industry environments requiring corrosion and acid-resistant versions on request.

Features a round actuator style with blue LED illumination. Panel mount with a 22.3 mm cutout size. Single Pole Double Throw (SPDT) contact configuration. Rated for 240 V AC/DC and 3A contact current. IP65 and IP67 rated for ingress protection.

Vandal and impact resistant design. Gold-plated silver contacts for low voltage reliability. Wide temperature range: -30°C to 70°C. Service life of over one million cycles. Versatile use in industrial and public applications.

For buyers seeking robust, reliable, and long-lasting illuminated push button switches, the EAO 82-6151.1124.B001 offers excellent tactile feedback and adaptability across a wide range of industrial, commercial, and public sector applications. Explore more offerings in the Push Button Switches category at EnvMart for integrated automation solutions.
