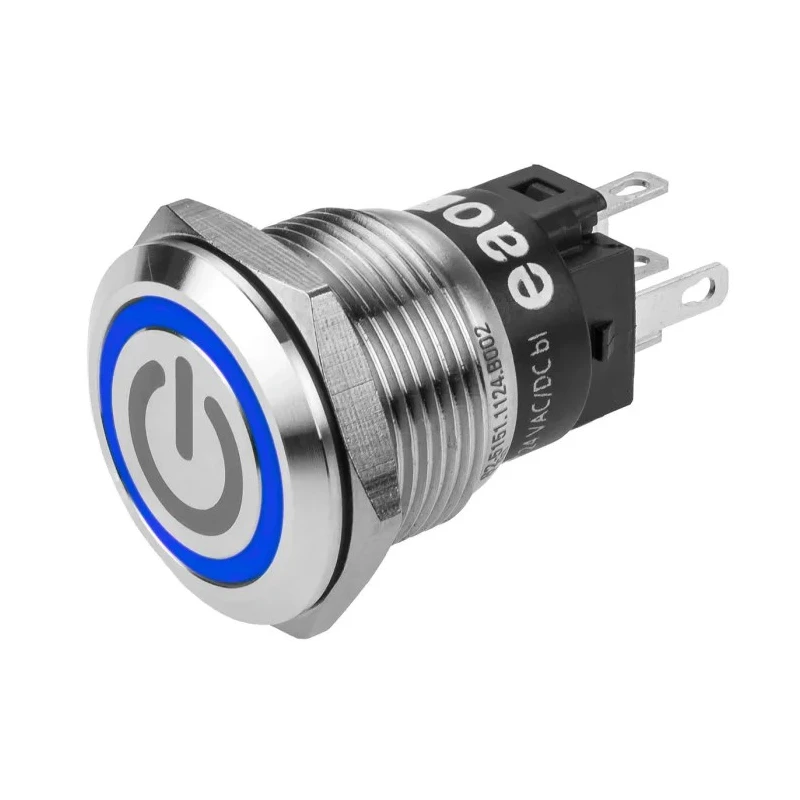

EAO 82 Series Illuminated Push Button Switch, Latching, Panel Mount, 19 mm Cutout, SPDT, Blue LED 82-5151.2123.B002

The EAO 82-5151.2123.B002 Illuminated Push Button Switch is a highly reliable, latching push button designed for panel mounting with a 19 mm cutout. It provides a Single Pole Double Throw (SPDT) contact configuration with blue LED illumination to ensure clear visual feedback. Engineered for industrial-grade applications, this switch supports a contact current of 3A at 240 V AC/DC, making it suitable for a wide range of electrical control systems.

This series features vandal-resistant and impact-resistant construction, ideal for exposed public areas such as ticketing and vending machines, as well as demanding industrial environments like machinery and factory equipment. The switch is equipped with gold-plated silver contacts for low voltage and current applications, improving reliability and contact life.

With excellent tactile feedback and a long service life exceeding one million cycles, the EAO 82 series push button switch ensures durable operation. Its ingress protection ratings of IP65 and IP67 provide resistance against dust and water, expanding its usability in harsh conditions. The round actuator style with a standby symbol legend offers intuitive operation and clear status indication.

Materials used include stainless steel anodised aluminium or brass-coloured options, enhancing corrosion and acid resistance. The switch operates over a temperature range from -30°C to 70°C, supporting diverse environmental conditions. It is widely used in industrial, building management, lifting and moving systems such as elevators, and audio/video equipment.

Package contents typically include one illuminated push button switch unit, ready for secure panel installation. This product conforms to various safety and quality standards, including CB, CCC, cUL, and UL certifications.

Operates at 240 V AC/DC with 3A contact current. Vandal-resistant, impact-resistant construction for durability. Gold-plated silver contacts for low voltage applications. Long operating life exceeding 1 million cycles. IP65 and IP67 ingress protection ratings.

Round actuator with blue LED illumination and standby symbol. Suitable for industrial, commercial, and public applications. Operates reliably between -30°C and 70°C. Available in stainless steel anodised aluminium or brass-coloured finishes.
