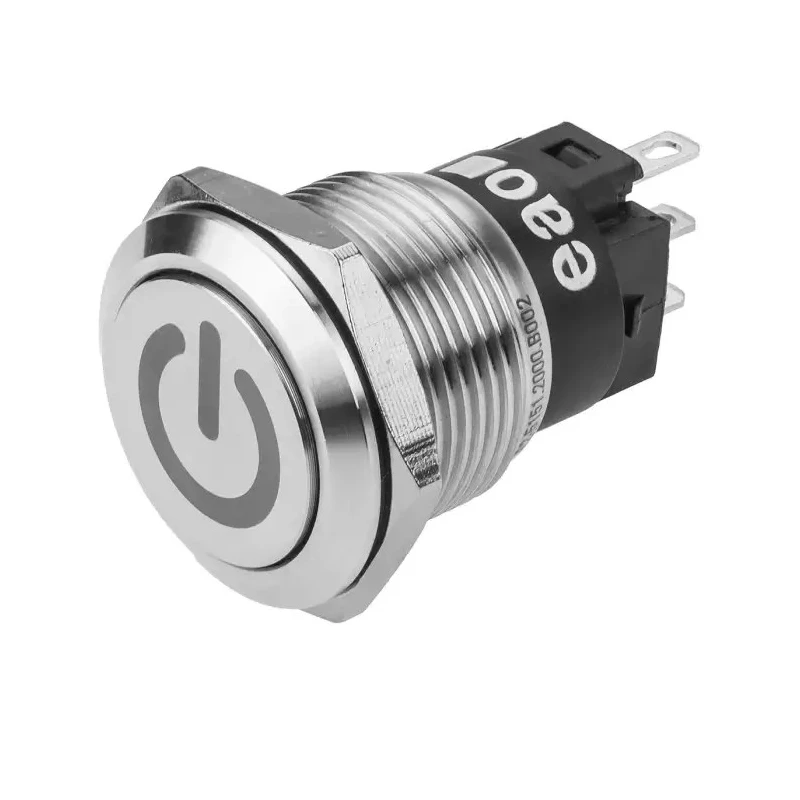

EAO 82 Series Push Button Switch, Latching, Panel Mount, 19 mm Cutout, SPDT, IP65 IP67, 240 V DC AC, 3A 82-5151.2000.B002

EAO 82-5151.2000.B002 Push Button Switch is a high-quality latching push button switch designed for panel mounting with a 19 mm cutout. It features an SPDT contact configuration rated for 3A with 240 V DC and AC voltage compatibility. The round actuator style offers excellent tactile feedback and vandal-resistant construction with impact-resistant materials including stainless steel anodized aluminum or brass finishes.

This switch achieves IP65 and IP67 ingress protection ratings, making it suitable for environments exposed to dust and water immersion, ideal for industrial, public access, and machinery control systems.

Designed to operate reliably within a temperature range of -30°C to 70°C, the switch ensures durability through more than 1 million mechanical operations. Gold-plated silver contacts are available to enhance performance especially in low voltage and current applications.

Typical applications include ticketing and vending machines in exposed public areas, industrial machine and factory equipment control, elevator and people mover controls, building management and access security systems, medical devices, audio-video equipment, and corrosion resistant options for the food industry upon request.

The switch complies with recognized industry standards including CB, CCC, cUL, and UL, supporting global safety and quality requirements. The round actuator provides excellent tactile feedback and vandal resistance. Rated for a switch contact current of 3A with gold-plated silver contacts for low voltage applications.

IP65 and IP67 rated for protection against dust and temporary immersion. Designed for industrial and public use with a durable stainless steel or brass finish. Operation temperature range from -30°C to 70°C ensures reliable performance.

Service life exceeds 1 million operations for long-term durability. Suitable for applications including access control, building management, elevators, machinery, and vending machines. Complies with CB, CCC, cUL, and UL standards for safety and quality.
