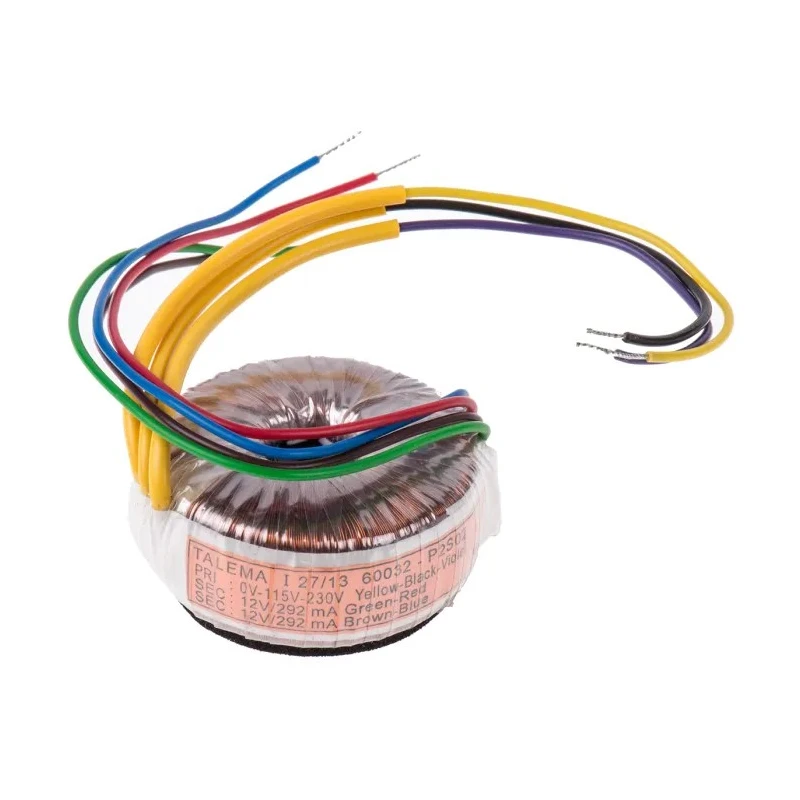

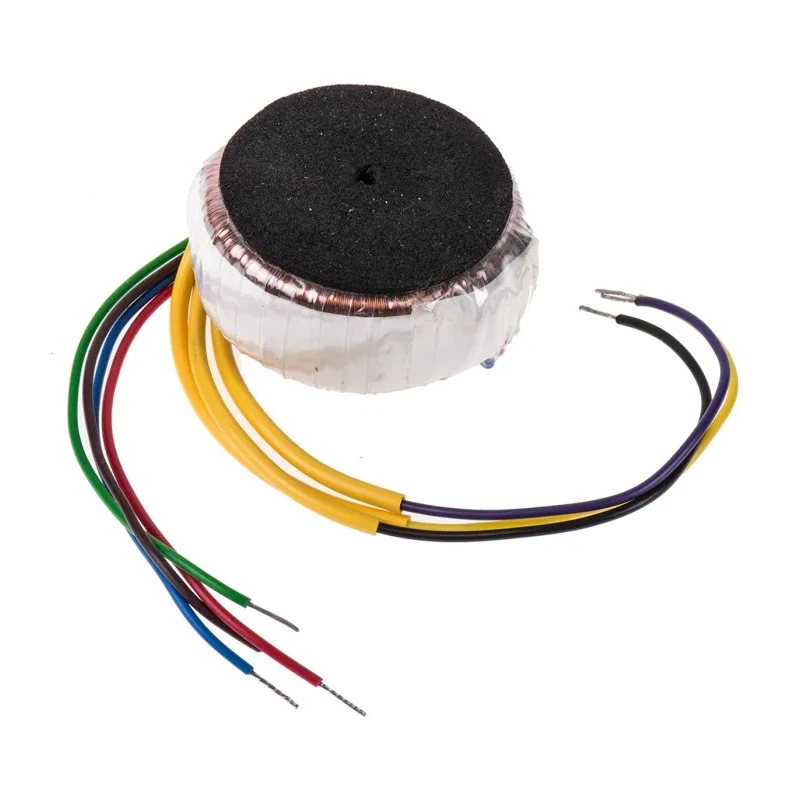

Nuvotem Talema 230 V ac 2 x 12 V ac Toroidal Transformer 2 Output 7 VA BS415 Class II 60032

Nuvotem Talema 60032 Toroidal Transformer offers superior electrical performance with a primary voltage of 230 V ac and dual 12 V ac secondary outputs delivering 7 VA power. This transformer features a double-insulated design with a potted center and M4 fixing hole, ensuring both safety and ease of installation.

Designed for industrial and electronic applications, this mini open style toroidal transformer supports frequencies from 50 Hz to 60 Hz. It is compact with a diameter of 48 mm and height of 24 mm, ideal for limited space environments.

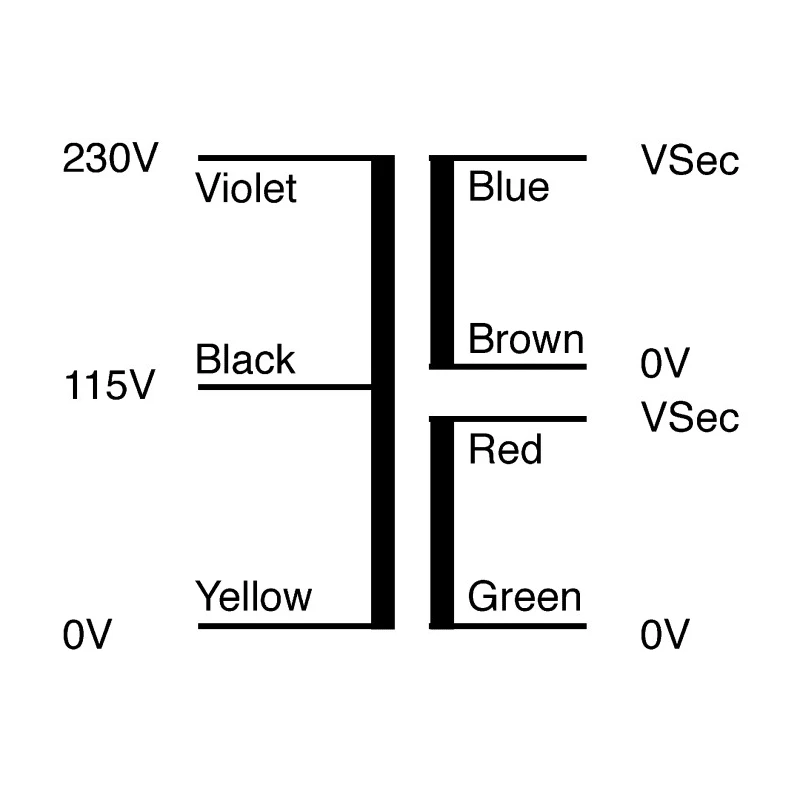

The transformer maintains a maximum operating temperature of 180°C, making it suitable for demanding operational conditions. Its secondary winding can be connected in series or parallel or used independently, adding to its application flexibility.

Key features include a low profile, lightweight construction, low radiated magnetic field, and minimal noise (hum) generation. It is manufactured and tested in compliance with standards such as BS415, VDE0551, EN60950, EN60065, and UL506.

These qualities make the 60032 toroidal transformer highly suitable for industrial automation, electronic power supply, manufacturing, HVAC, and laboratory applications requiring reliable voltage transformation and minimal electromagnetic interference.

High quality Toroidal Transformer with 2 output windings for versatile use. Primary voltage supports 230 V ac with a frequency range of 50 to 60 Hz. Secondary current rated at 292 mA for reliable performance. Compact design with 48 mm diameter and 24 mm height for easy mounting.

Maximum operating temperature up to 180°C for durability in demanding environments. Complies with BS415 Class II and multiple international safety standards. Double insulated primary leads and potted center with M4 fixing hole for secure installation.

Low radiated magnetic field and very low induced noise ensure optimal electrical performance. UL recognised and tested according to IEC and EN standards for quality assurance. Explore more transformers and electronic components with EnvMart for your industrial needs.
