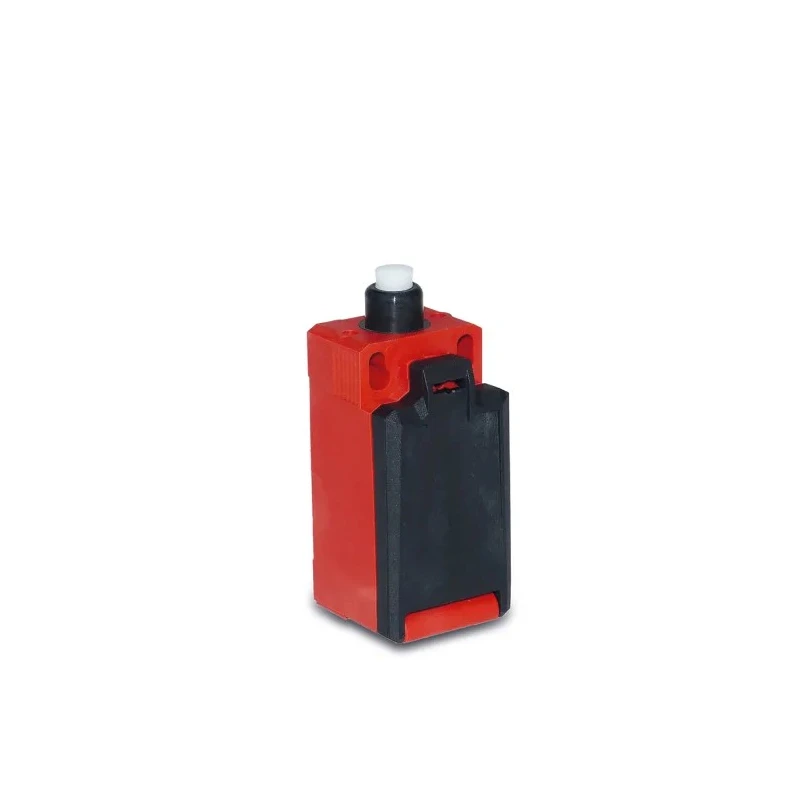

Bernstein AG Series Plunger Limit Switch, 2 NC Contacts, 240V AC, 5A, IP67, Fibreglass Reinforced Thermoplastic Housing IN62

Bernstein AG IN62 Series Plunger Limit Switch with 2 NC (normally closed) contacts is engineered for high reliability in industrial position monitoring and safety control systems. This switch features a plunger actuator providing precise slow action switching suitable for safety facilities and various industrial automation applications. Equipped with a robust fibreglass reinforced thermoplastic housing, it offers superior mechanical and chemical resistance while ensuring protection at an IP67 rating against dust and temporary water immersion.

The switch operates at an AC voltage of 240V with a switching current capacity of 5A, making it suitable for a wide range of electrical load requirements. With an impressive mechanical life span of up to 30 million switching cycles, this limit switch delivers sustained performance in demanding industrial environments.

Dimensionally compact, it measures 31mm in length, 74mm in width, and 30.3mm in depth, fitting easily into constrained spaces. The M20 conduit entry facilitates secure and reliable cable connections, while the screw mounting ensures stable and adjustable installation. The operating temperature range from -30°C to 75°C allows it to function reliably in severe temperature conditions.

Additional features include screw-type terminals for easy wiring and compliance with RoHS standards, demonstrating environmental responsibility and safety compliance. The IN62 series limit switch is ideal for use in industrial machinery, manufacturing automation, building control systems, and other commercial or laboratory settings requiring precise position and safety monitoring.

Equipped with a plunger actuator providing reliable slow action switching. Fibreglass reinforced thermoplastic housing ensures robust durability and chemical resistance. Rated for 5 amp switching current with screw terminal connections.

Operating temperature range from -30°C to 75°C for versatile industrial environments. High mechanical endurance with up to 30 million switching cycles. IP67 rated for dust-tight and water immersion protection. Compact dimensions with length 31mm, width 74mm, and depth 30.3mm.

M20 conduit entry for secure cable management. Mounting via screws for stable installation orientation. Compliant with RoHS environmental standards. Explore the complete range of industrial Limit Switches and automation components available at EnvMart for reliable, high-quality electrical control solutions.
