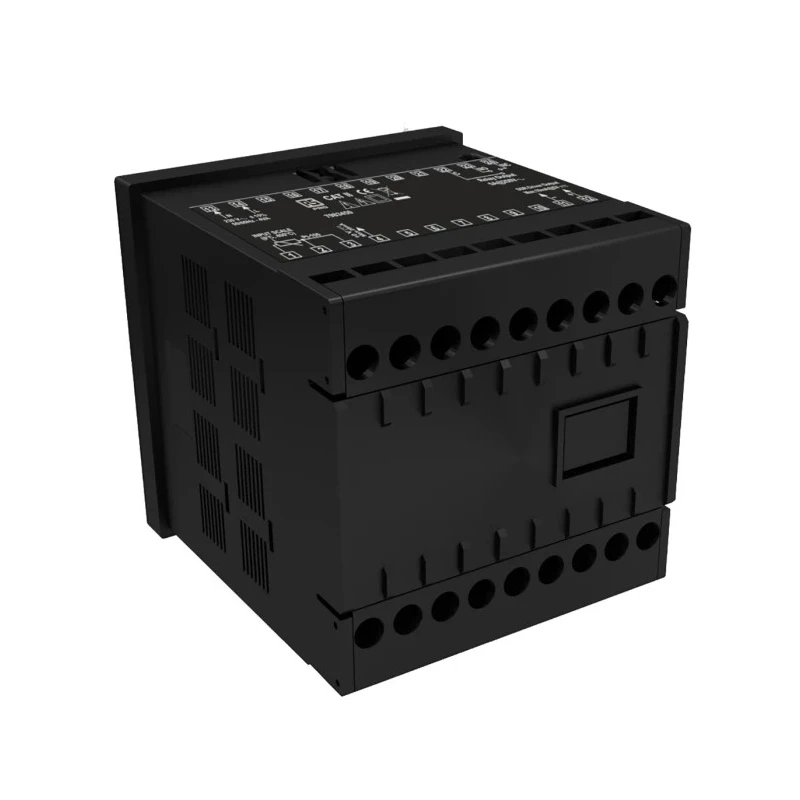

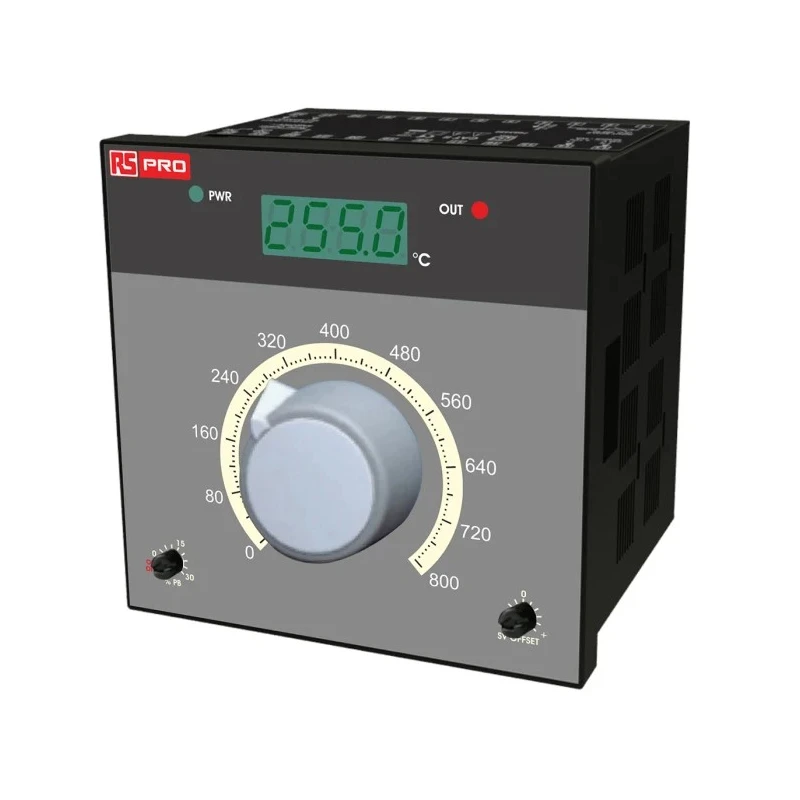

RS PRO DIN PID Temperature Controller 1 Input 2 Relay Output 230V ac 188-5163

Free Delivery in India | Lowest Global Shipping Charges

RS PRO DIN PID Temperature Controller 1 Input 2 Relay Output 230V ac 188-5163

Name: RS PRO DIN PID Temperature Controller 1 Input 2 Relay Output 230V ac 188-5163
Brand: RS PRO
SKU: 319952
Price: 595.2 USD
Availability: InStock



Category Temperature Controllers Brand RS PRO Condition New

Specifications

Country of Origin	India
Display Type	7 Digit
Brand	RS PRO
Humidity	0-90%RH (non-condensing)
Length	96mm
Model	188-5163
IP Rating	IP20, IP65
Width	96mm
Mount Type	DIN
Number of inputs	1
Output type	2 Relay
Series	RS PRO
Input Type	J Type Thermocouple
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Control Output	Relay (5A@250VV at resistive load) SSR Driver Output (Maximum 50mA, Maximum 18VZ) output
Maximum Current	7A
Number of outputs	2
Terminal type	Screw
Maximum Voltage	250V
Standards/Approvals	IEC 584.1 (ITS90)
Maximum Supply Voltage	230V ac
Panel Depth	76mm
Thermocouple (TC)	J, (IEC 584.1) (ITS90) input
RS PRO Panel PID Temperature Controller 1 Input, 2 Output Relay 230V acBrand	RS PRO

Key Features

Features J type thermocouple (IEC 584.1, ITS90) input for accurate temperature sensing.
Equipped with two relay outputs supporting up to 7A current for versatile control.
7 digit display and compact 96 x 96mm housing suitable for DIN mounting.
Operating temperature range from 0°C to 50°C with humidity tolerance up to 90% RH non-condensing.
Includes adjustable control parameters such as set offset, hysteresis, and control period via DIP switches.
Durably rated IP20 at the rear and IP65 at the front for robust industrial environments.
CE certified and compliant with IEC 584.1 standards for temperature measurement.

Product Description

RS PRO 188-5163 DIN PID Temperature Controller is designed for precise temperature control using a J type thermocouple input. Operating at 230V AC supply, this device features dual relay outputs capable of handling up to 7A current, suitable for various industrial process control applications.

The compact 96 x 96 mm unit is DIN mounted with a panel depth of 76 mm, equipped with a 7 digit display to clearly show temperature readings and status. It supports ON/OFF or time proportional operation modes and offers adjustable parameters such as control period, set offset, and hysteresis via DIP switches, enabling fine tuning of control response.

With a temperature operating range of 0°C to 50°C and a humidity tolerance of 0-90% RH (non-condensing), the controller is robust enough for typical automation and HVAC environments. The device is IP20 rated at the rear and IP65 rated at the front to ensure protection against dust and water ingress. It complies with IEC 584.1 (ITS90) standards ensuring accurate temperature measurement with J type thermocouples.

The control output includes relay (5A @ 250V resistive load) and SSR driver outputs with a maximum of 50mA at 18V, allowing it to integrate seamlessly into different industrial automation systems.

Features J type thermocouple input for precise temperature sensing. Supports 2 relay outputs with maximum current of 7A each. Rugged DIN mount housing with compact dimensions 96x96x76 mm. Operation temperature range 0°C to 50°C with high humidity tolerance.

Adjustable control and hysteresis period via DIP switches for optimal tuning. IP20 rear and IP65 front rated enclosure for enhanced durability. Complies with IEC 584.1 (ITS90) standard and CE certified.

This temperature controller is ideally suited for industrial automation, process control, HVAC systems, manufacturing environments, and any application requiring reliable temperature regulation. Its compact size and flexible control outputs make it a versatile solution for control panel integrations.
