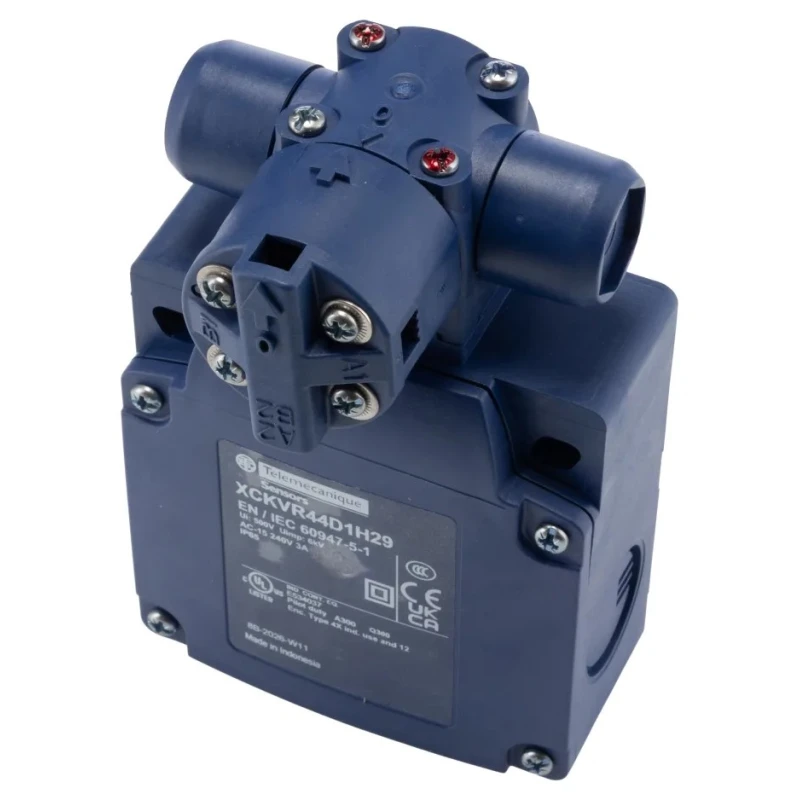

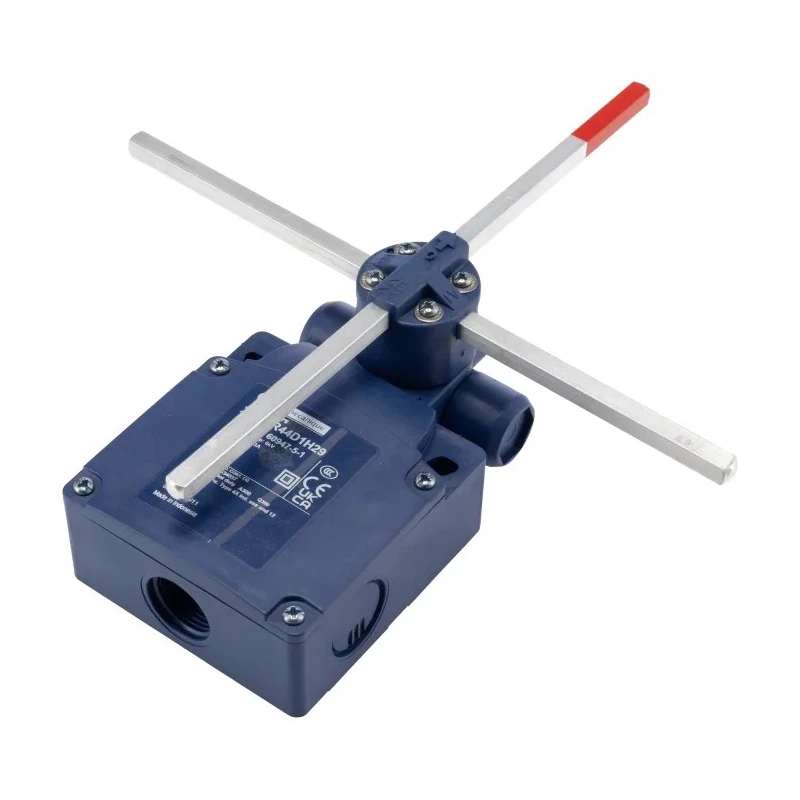

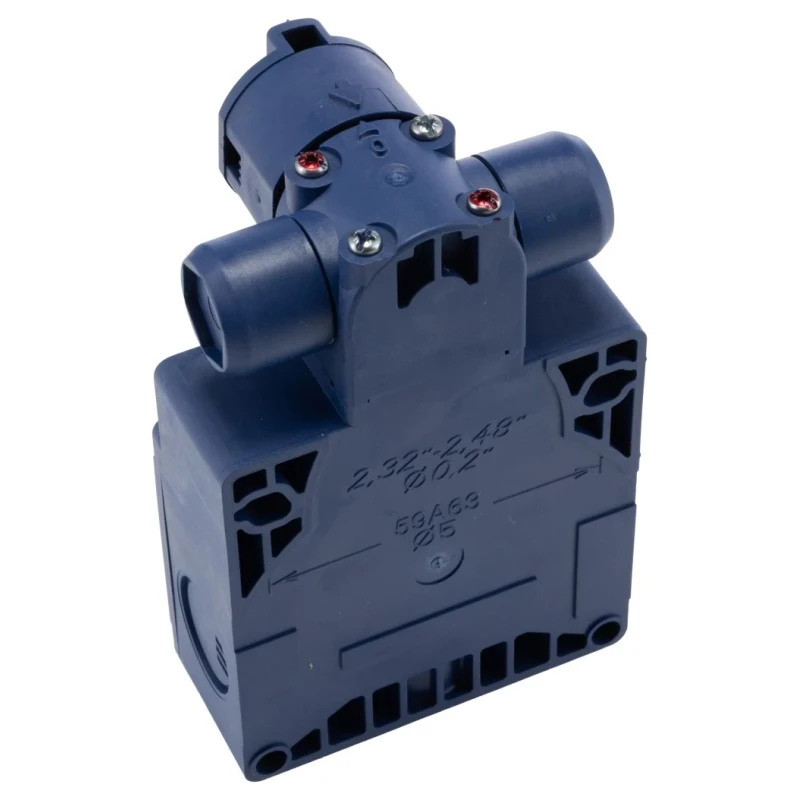

Telemecanique Sensors XCKV Series Rod Limit Switch 2 NC/2 NO Contact with IP65 Plastic Housing 240V AC 3A

Telemecanique Sensors XCKVR44D1H29 Rod Limit Switch is a compact, high-performance position sensing device optimized for industrial control and safety interlock applications. Featuring a rod actuator designed for vertical installation, this limit switch provides robust, reliable change-of-state signals through a combination of two Normally Closed (NC) and two Normally Open (NO) contacts. It is housed in a durable plastic enclosure rated IP65, ensuring protection against dust ingress and low-pressure water jets, making it suitable for harsh industrial environments.

The device supports control circuits switching up to 240V AC at currents up to 3A and includes screw clamp terminals that facilitate secure, easy wiring alongside an M20 conduit entry for standardized cable gland installation. This ensures mechanical and electrical safety during installation and operation. The mechanical endurance of 1,000,000 cycles combined with slow break contact technology minimizes arc formation, thus extending switch life and reducing maintenance needs.

Its operating temperature range from -25°C to 70°C makes it flexible for use in varied environmental conditions such as cold storage or warm process areas. Typical applications include end-of-travel detection on linear actuators, machine safety interlocks on vertical gates or doors, conveyor stop signaling, packaging machinery limit detection, and control panels requiring IP65-rated field devices.

Rod actuator for precise and reliable actuation. 2 NC/2 NO contacts provide versatile wiring options. Plastic housing with IP65 rating ensures environmental protection. Switching current capacity of 3A at 240V AC. Screw clamp terminals for durable electrical connections.

M20 conduit entry for industrial cable management. Mechanical durability rated at 1,000,000 cycles. Operating temperature range from -25°C to 70°C for broad applicability. Slow break contacts reduce arcing and wear. Compact dimensions of 200mm length, width, and depth.

This device is ideal for controlling and safeguarding industrial automation machinery in sectors including manufacturing, packaging, material handling, and safety interlock systems.
