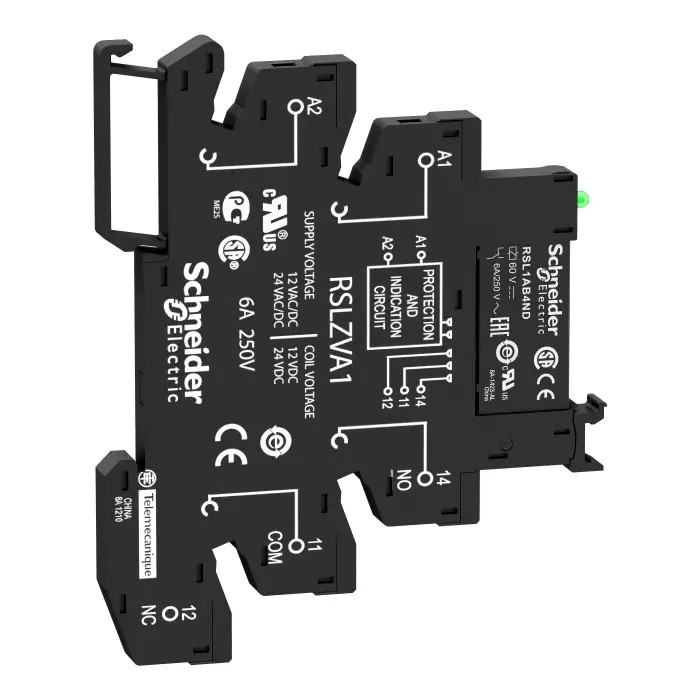

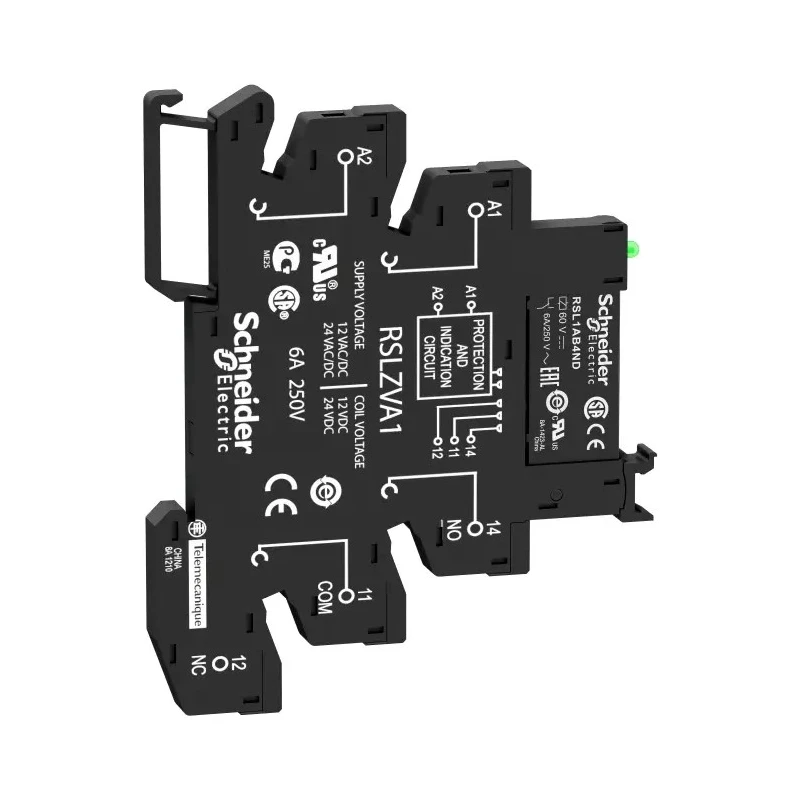

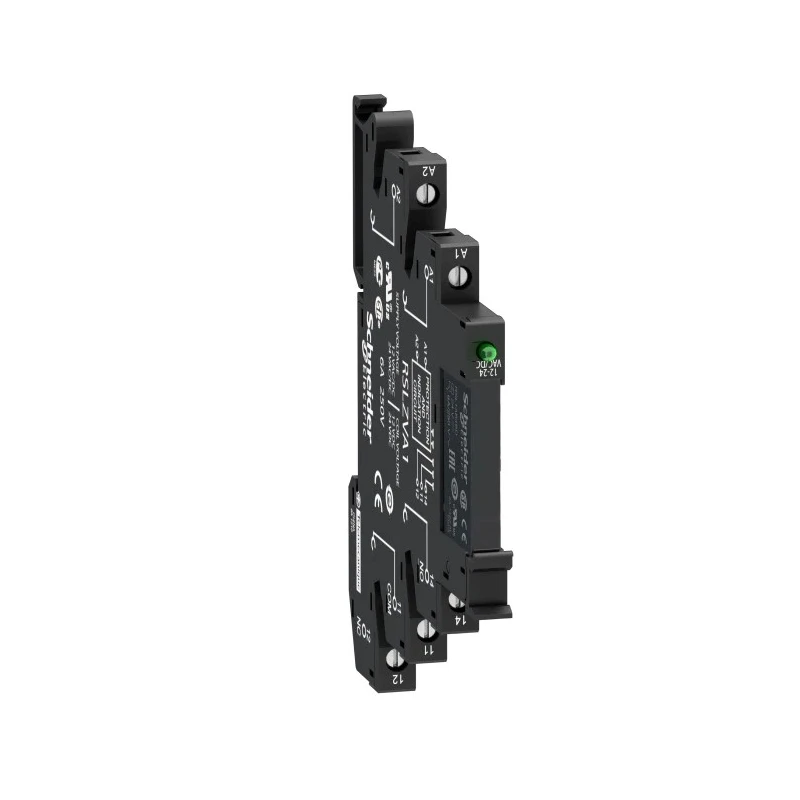

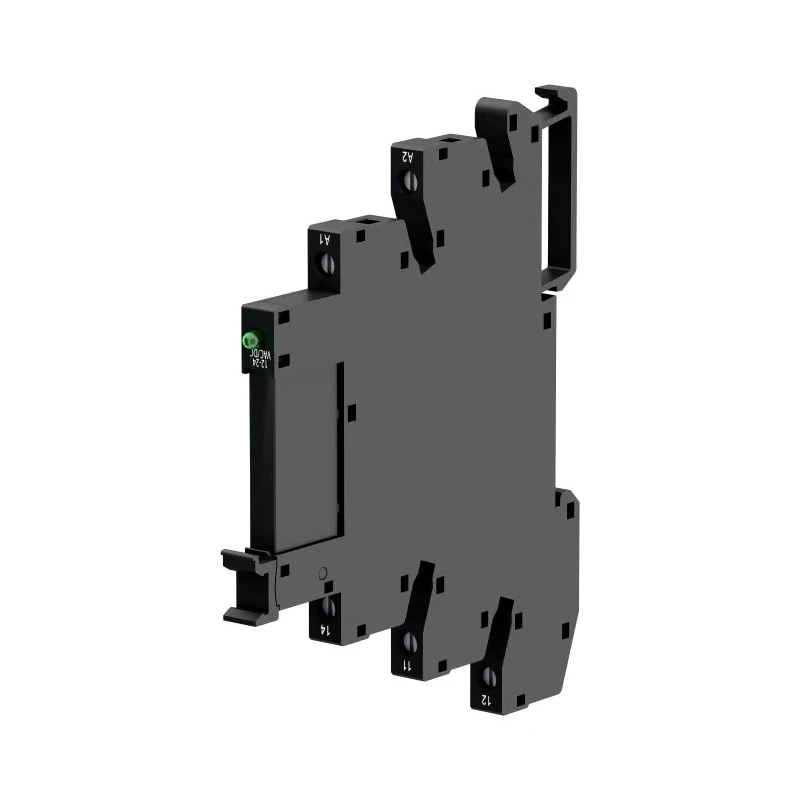

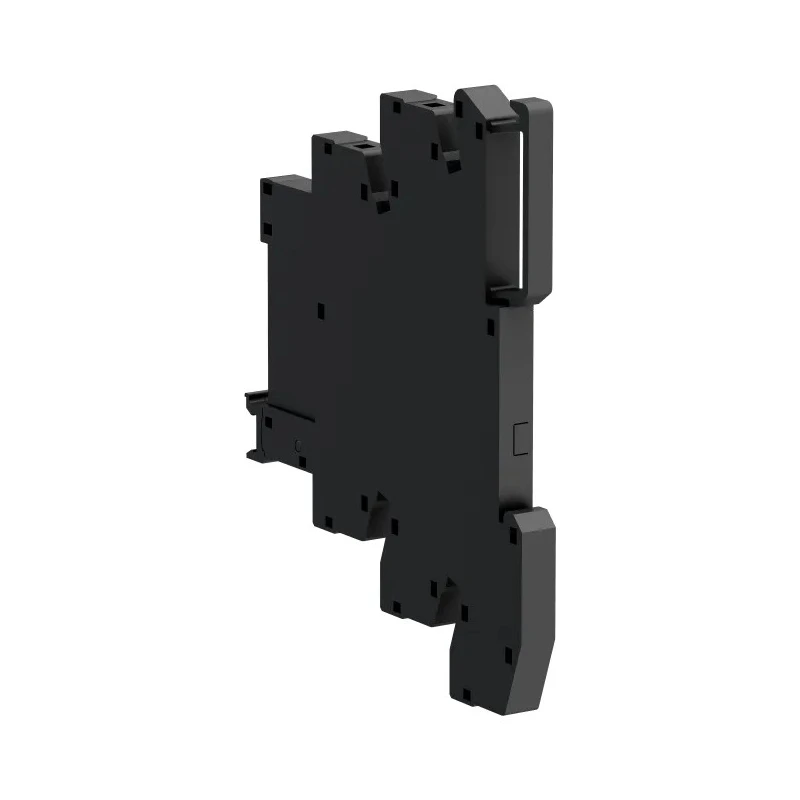

Schneider Electric DIN Rail Interface Relay 12V ac/dc Coil 6A Switching Current SPDT RSL1PVJU
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 96mm |
| Length | 6.2mm |
| Model | RSL1PVJU |
| Width | 78.7mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RSL |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Coil Resistance | 848Ω |
| Coil Voltage | 12V ac/dc |
| Switching DC Voltage | 12V dc |
| Switching AC Voltage | 277V |
| Coil Power | 170mW |
| Switching Power | 150W |
Key Features
- Operates with a coil voltage of 12V AC/DC for versatile power supply compatibility.
- Single Pole Double Throw (SPDT) contact configuration for flexible switching options.
- Mountable on DIN rail for secure and organized installation.
- Supports a switching current up to 6A suitable for various electrical loads.
- Equipped with silver alloy contacts for enhanced conductivity and durability.
- Operating temperature range from -40°C to 55°C for reliable industrial use.
- Compact dimensions measuring 96mm height, 78.7mm width, and 6.2mm length.
- Coil resistance is 848 ohms to ensure proper coil performance and power consumption.
Product Description
Schneider Electric RSL1PVJU is a DIN Rail-mountable Interface Relay featuring a 12V AC/DC coil voltage and a 6A switching current designed for industrial electrical and automation systems. This electromechanical relay offers a single pole double throw (SPDT) contact configuration delivering versatile switching capabilities. The relay's silver alloy contacts ensure long-lasting conductivity and resist wear, making the device reliable under continuous operation.
The product supports an operating temperature range from -40°C to 55°C, allowing it to perform effectively in harsh industrial environments. Its compact size - 96mm in height, 78.7mm in width, and 6.2mm in length - facilitates easy integration within electrical panels and control systems.
The coil power consumption of 170mW and coil resistance of 848Ω ensure efficient energy usage. The relay complies with RoHS standards, confirming absence of hazardous substances and environmental compliance. The screw terminal type facilitates secure wiring connections, enhancing installation safety and reliability.
This relay belongs to Schneider Electric's Harmony Relay RSL series well-known for their quality and durability. It is ideal for applications such as machine control, signal switching, and interface tasks in industrial, manufacturing, building automation, and HVAC control systems.
Operates at a coil voltage of 12V AC/DC. SPDT contact configuration for flexible control. DIN rail mount for standard panel installation. Switching current rated at 6A for moderate loads. Silver alloy contacts for superior conductivity.
Wide temperature range -40°C to 55°C for robustness. Compact dimensions allow easy integration. Low coil power of 170mW improves efficiency. RoHS compliant, environmentally friendly. Part of the trusted Harmony Relay RSL series.
Explore this Schneider Electric Interface Relay along with more Relays & Contactors on EnvMart for advanced electrical automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V AC/DC, allowing for versatile power supply compatibility.
It supports a maximum switching current of 6A, making it suitable for various electrical loads.
This relay features a Single Pole Double Throw (SPDT) contact configuration for flexible switching options.
The relay has compact dimensions of 96mm in height, 78.7mm in width, and 6.2mm in length.
It operates effectively within a temperature range of -40°C to 55°C, suitable for harsh industrial environments.
The relay is equipped with screw terminals, facilitating secure wiring connections for installation.
The coil resistance is 848 ohms, ensuring proper coil performance and power consumption.
The coil power consumption is 170mW, which helps improve energy efficiency during operation.
Yes, it complies with RoHS standards, confirming the absence of hazardous substances and environmental compliance.
The contacts are made of silver alloy, which enhances conductivity and durability.
It is ideal for applications such as machine control, signal switching, and interface tasks in industrial and building automation systems.
This model is designed for DIN rail mounting, allowing for secure and organized installation within electrical panels.
