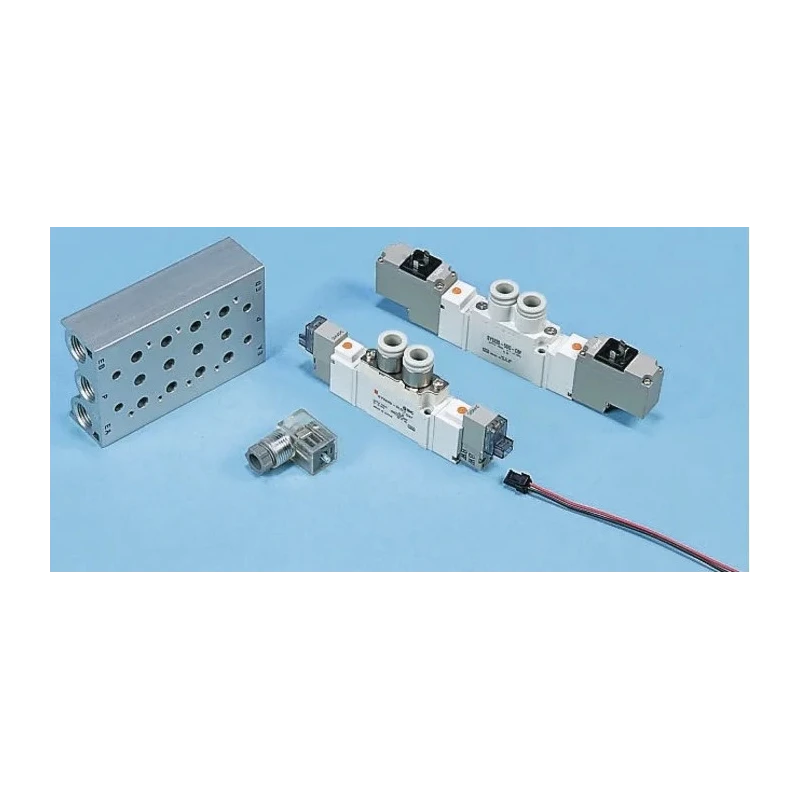

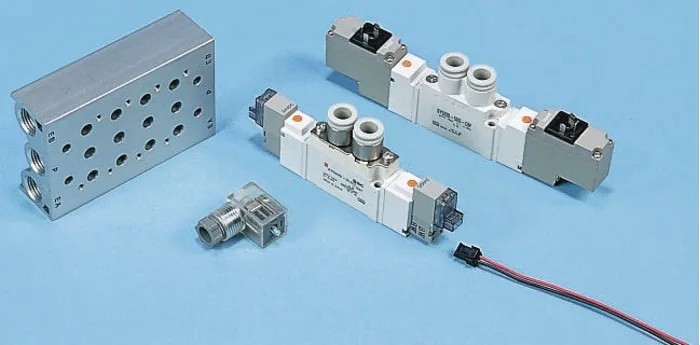

SMC Pneumatic Solenoid Valve 5/2 Solenoid G 230V AC Die Cast Aluminium Body SY5000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 5/2 Solenoid G 230V AC Die Cast Aluminium Body SY5000



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	India
Voltage	230V ac
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	49mm
Length	117.1mm
Model	SY5000
Width	49mm
Mount Type	Stand Alone
Series	SY5000
Number Of Ports	5
Maximum Operating Temperature	50°C
Port Size	M5
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	863.7NL/min
Connection Thread Standard	G
Mount Pattern	DIN
Minimum Pilot Pressure	0.1MPa
Valve Function	5/2
Electrical Connection Type	DIN Connector

Key Features

Constructed with a die cast aluminium body for durability.
Features a 5-port 2-position function with M5 port size.
Operates at 230V AC voltage ensuring industrial compatibility.
Sealed with nitrile rubber (NBR) for resistance and longevity.
Designed for a maximum operating pressure of 0.7 MPa and max flow rate of 863.7 NL/min.
Supports a temperature range from -10°C to 50°C for flexible application.
Mounting via DIN pattern with standalone mount type.
Equipped with a DIN connector electrical interface for easy installation.

Product Description

SMC SY7120-4DO-C10F-Q Pneumatic Solenoid Valve 5/2 Solenoid G 230V AC is engineered for precise pneumatic control in industrial environments. Featuring a die cast aluminium body, it delivers robust mechanical strength while maintaining lightweight design.

This valve supports a 5-port 2-position (5/2) function, connected via G thread standard with an M5 port size. The solenoid actuation type ensures fast and reliable valve switching, suitable for systems requiring rapid response and flow control.

Operating at 230V AC and consuming just 1.39 VA of power, this valve is energy efficient and compatible with standard industrial electrical systems. The nitrile rubber (NBR) seal material offers excellent resistance to wear and tear, thereby extending the valve's service life.

Designed with a maximum operating pressure of 0.7 MPa and maximum pilot pressure also at 0.7 MPa, the valve can maintain steady control flow rates up to 863.7 NL/min. It operates effectively in temperature ranges from -10°C minimum to 50°C maximum, supporting versatile industrial use cases.

The valve is mounted standalone using a DIN pattern for secure installation and connects electrically via a DIN connector, ensuring streamlined setup and maintenance. Die cast aluminium body for strength and durability. 5/2 valve function enables precise directional control.

230V AC voltage with low solenoid power consumption of 1.39 VA. Nitrile rubber seals for leak resistance and longevity. Compact dimensions suited for space-constrained installations. Supports flow rate up to 863.7 NL/min at 0.7 MPa operating pressure.

Wide temperature operating range of -10°C to 50°C. Standard G connection threads and M5 port sizing. Stand-alone mounting with DIN connector electrical interface.

This Pneumatic Solenoid Valve is ideal for industrial automation, manufacturing, fluid power control, pneumatic machinery, and process control applications. Its robust construction and reliable specifications support diverse environments such as factory automation, HVAC systems, and laboratory pneumatic setups.

Explore the full line of SMC pneumatic components on EnvMart for complementary products and system integration.
