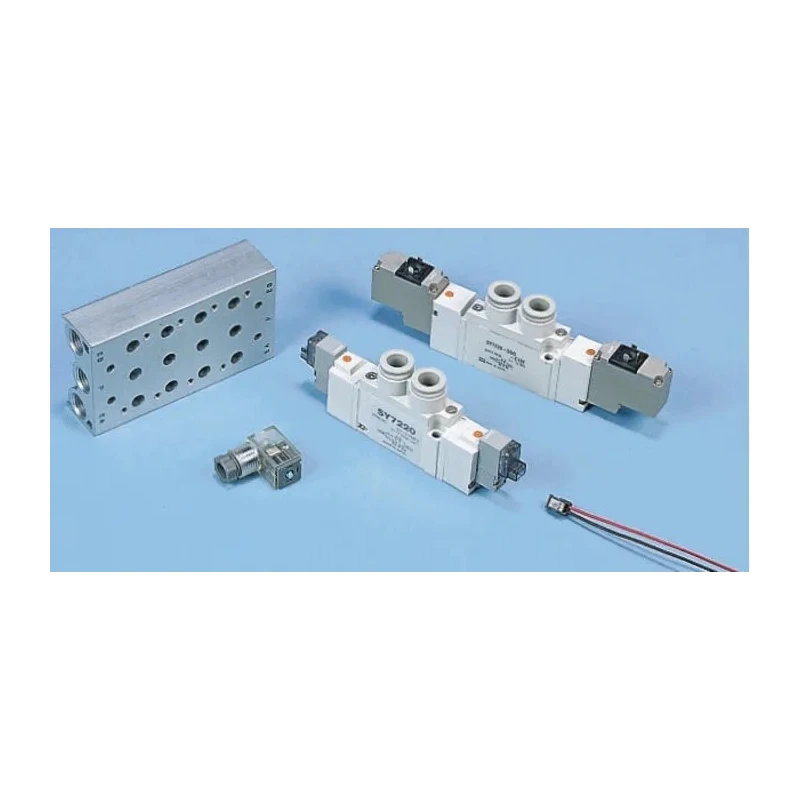

SMC Pneumatic Solenoid Valve 5/2 Solenoid G SY5000 Series 24V DC Die Cast Aluminium

The SMC SY5120-5LOU-C8F-Q is a precision-engineered pneumatic solenoid valve from the renowned SY5000 series, designed for controlling pneumatic circuits in industrial environments. This 5/2 solenoid valve operates on 24 volts DC power and features a robust die cast aluminium body, ensuring both durability and resistance to harsh operating conditions.

This valve’s 5 ports equipped with G connection thread standards and M5 port sizes enable seamless integration into various pneumatic systems. Its maximum operating pressure and maximum pilot pressure ratings of 0.7 MPa make it suitable for moderate-pressure applications. The valve reliably functions within a temperature range of -10°C to 50°C, offering versatility across industrial, manufacturing, and automation use cases.

The maximum flow rate of 530 NL/min supports efficient pneumatic flow, while nitrile rubber (NBR) seals provide excellent sealing and chemical resistance for sustained valve performance. It features an L-plug connector for secure electrical connections and an integrated non-locking manual override for operational convenience.

This valve supports use in automated machinery, pneumatic control systems, and fluid power applications in sectors such as manufacturing, packaging, and assembly lines. The compact form factor (117.1 mm length, 49 mm width, and 49 mm height) allows for flexible installation in constrained spaces.

Operates at 24 volts DC with low power consumption of 0.4 watts. Constructed with robust die cast aluminium body for durability. Features 5 ports with G standard connection thread and M5 port size. Handles maximum operating pressure of 0.7 MPa and maximum pilot pressure of 0.7 MPa.

Operates within temperature range of -10°C to 50°C for versatile applications. Maximum flow rate of 530 NL/min for efficient pneumatic system performance. Includes nitrile rubber (NBR) seals ensuring reliable sealing and resistance.

Compact dimensions: 117.1 mm length, 49 mm width, and 49 mm height. Electrical connection via L-plug connector for secure and convenient wiring.

With its precision, reliable performance, and robust construction, the SMC SY5120-5LOU-C8F-Q is an excellent choice for demanding pneumatic control needs in industrial, manufacturing, and automation applications. Explore more Pneumatic Solenoid Valve options to fit specific system requirements and optimize plant operations.
