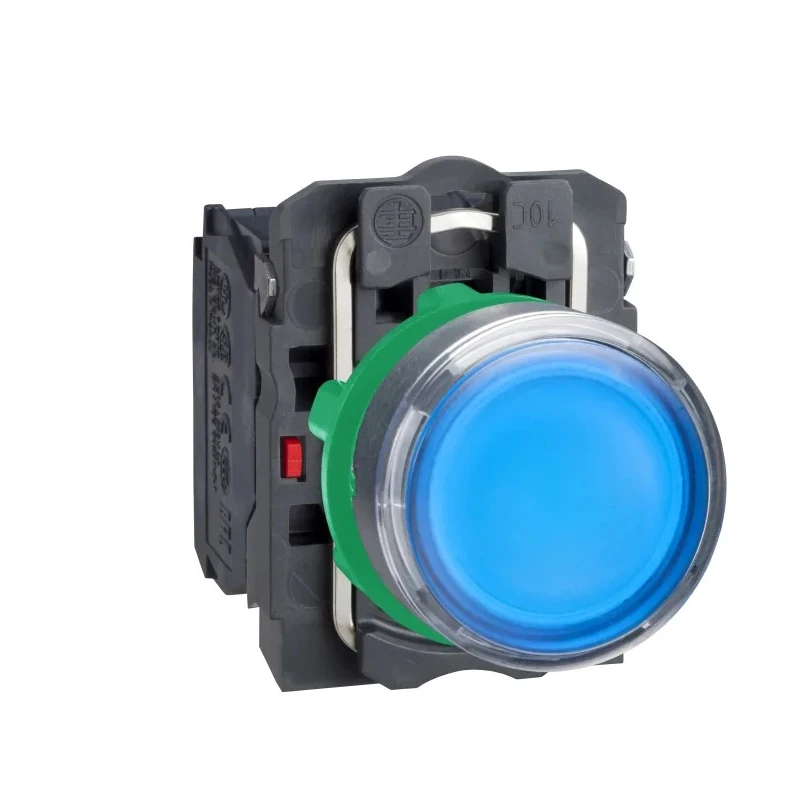

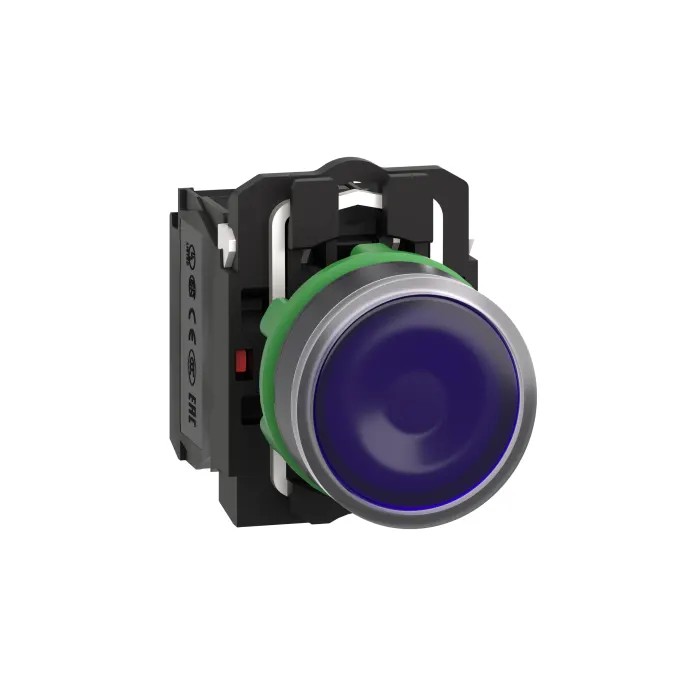

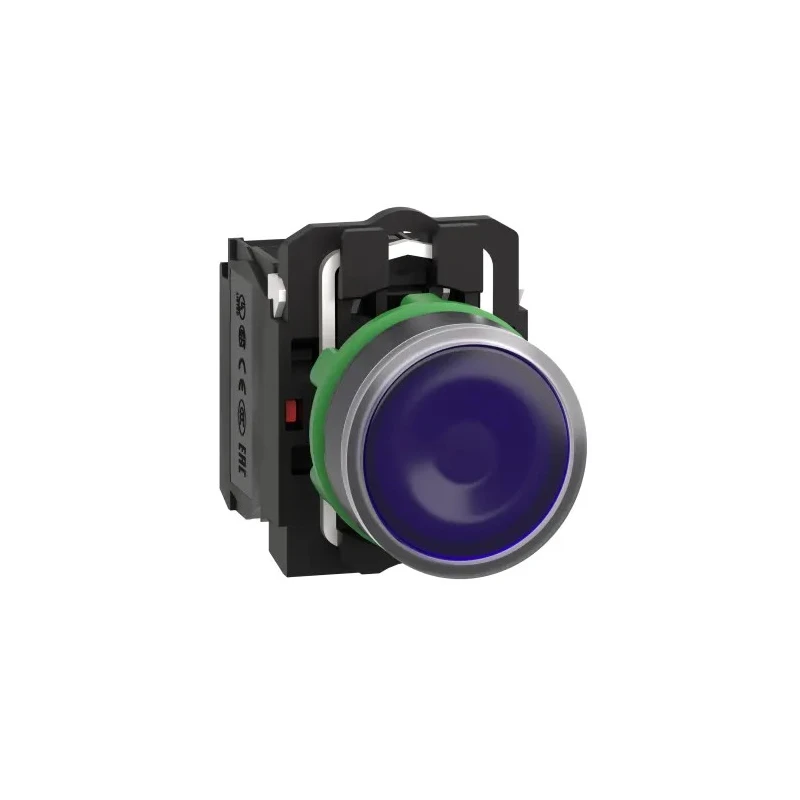

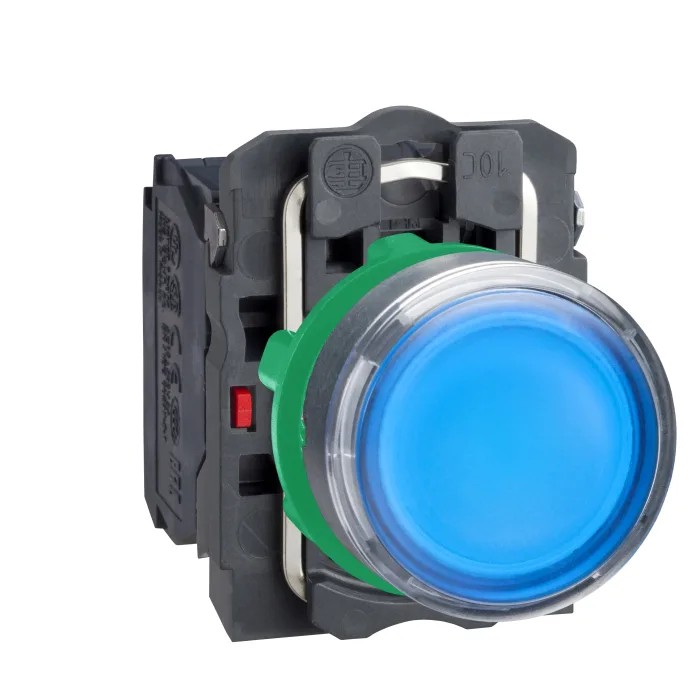

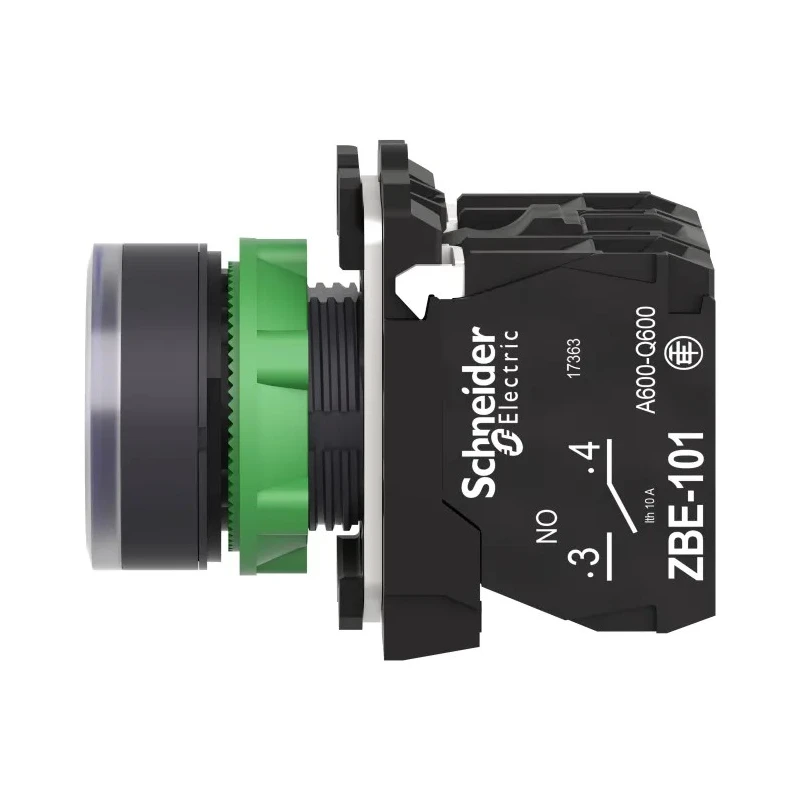

Schneider Electric Harmony XB5 Series Illuminated Push Button Switch Spring Return Panel 22 mm Cutout SPDT Blue LED XB5AW36M5

Schneider Electric XB5AW36M5 is an illuminated push button switch from the Harmony XB5 series, ideal for control stations and safety boards in industrial and commercial environments. Featuring a blue round actuator with a spring return mechanism, this panel-mounted switch requires a 22 mm cutout and offers both 1 normally open (NO) and 1 normally closed (NC) contacts through its SPDT contact configuration.

The integral blue LED illumination enhances visual status monitoring. Designed for durability, it is rated for operation between -25°C and 70°C, making it suitable for varied climatic conditions. The switch is built with double insulated plastic, resistant to liquids and easy to clean, meeting protection ratings IP66, IP67, and IP69K, assuring protection against dust, dirt, immersion, high-pressure jets, and steam cleaning.

The compact size with dimensions 42 mm height, 57 mm length, and 30 mm width facilitates integration in panels with screw terminal connections for secure wiring. Compliant with international standards such as CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, and UL 508, the switch ensures safety and reliability.

This high mechanical durability switch offers up to 10 million operation cycles, suitable for control applications in factories, automation lines, warehouses, restaurants, and commercial food units, especially where frequent cleaning and robust performance are critical.

Set includes an illuminated push button switch with a blue LED and spring return functionality, designed to be repairable by the end user, supporting sustainability goals. The switch features a blue round actuator colour for clear indication.

It supports spring return switch operation for automatic resetting. Contact configuration is SPDT with 1 NO/1 NC contacts for versatile control functions. The panel mount type with a 22 mm cutout size ensures easy installation.

LED colour is blue, providing efficient and visible illumination. Operates reliably within -25°C to 70°C temperature range. Constructed with durable double insulated plastic resistant to liquids. Meets IP66, IP67, and IP69K protection standards for harsh environments.

Complies with CSA, IEC, JIS, and UL approvals ensuring safety. Ideal for industrial, commercial, and automation applications requiring robust performance. Browse our extensive range of Push Button Switches and components at EnvMart to find tailored solutions for your industrial control needs.
