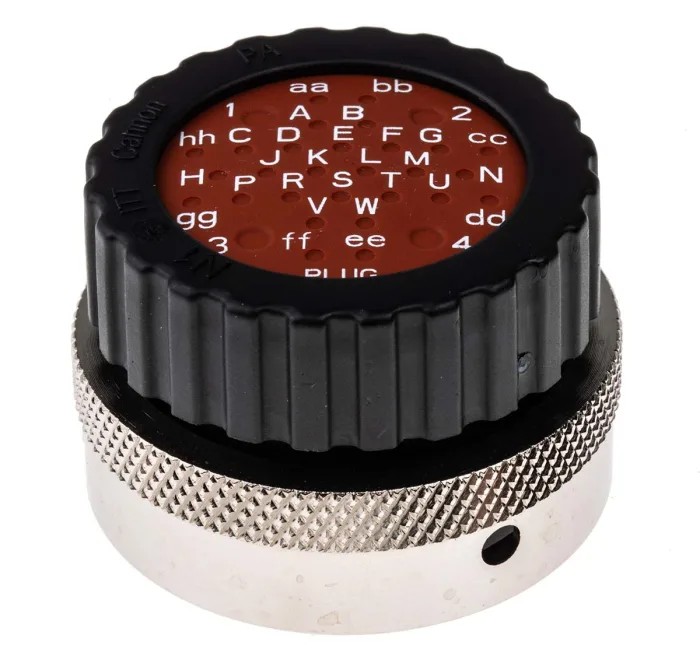

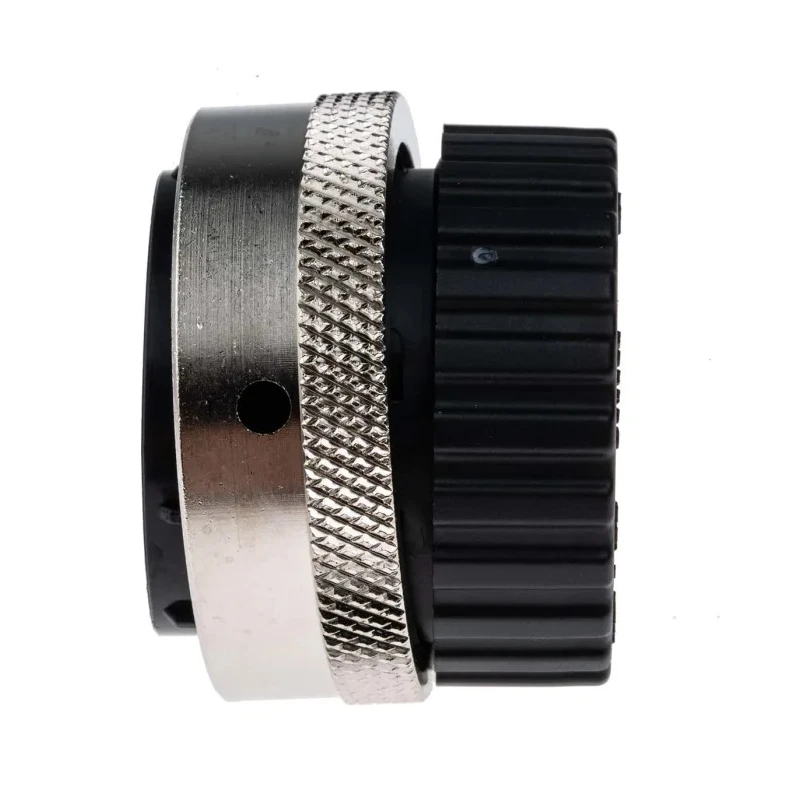

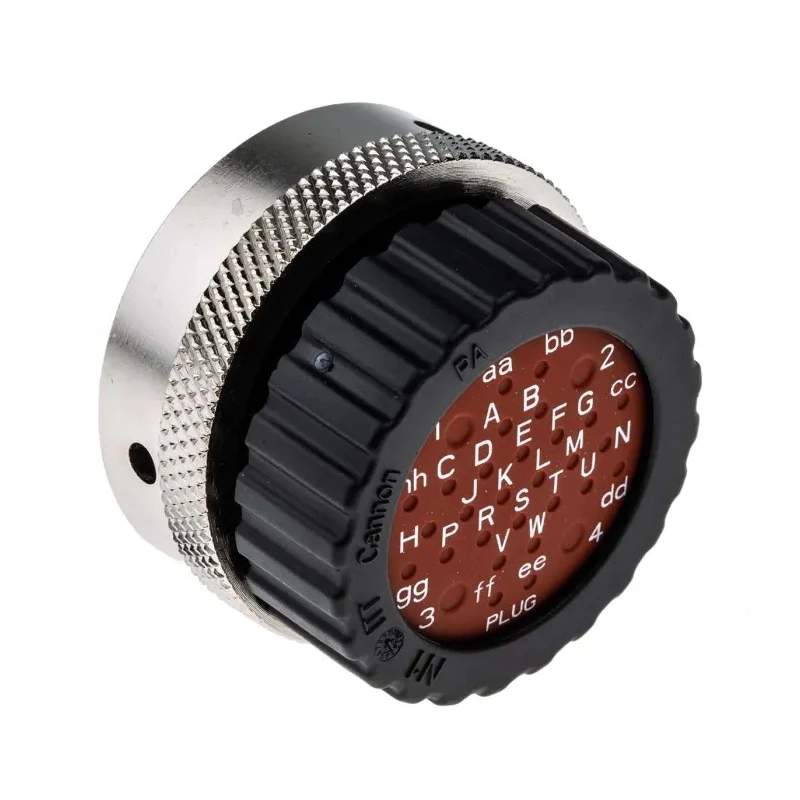

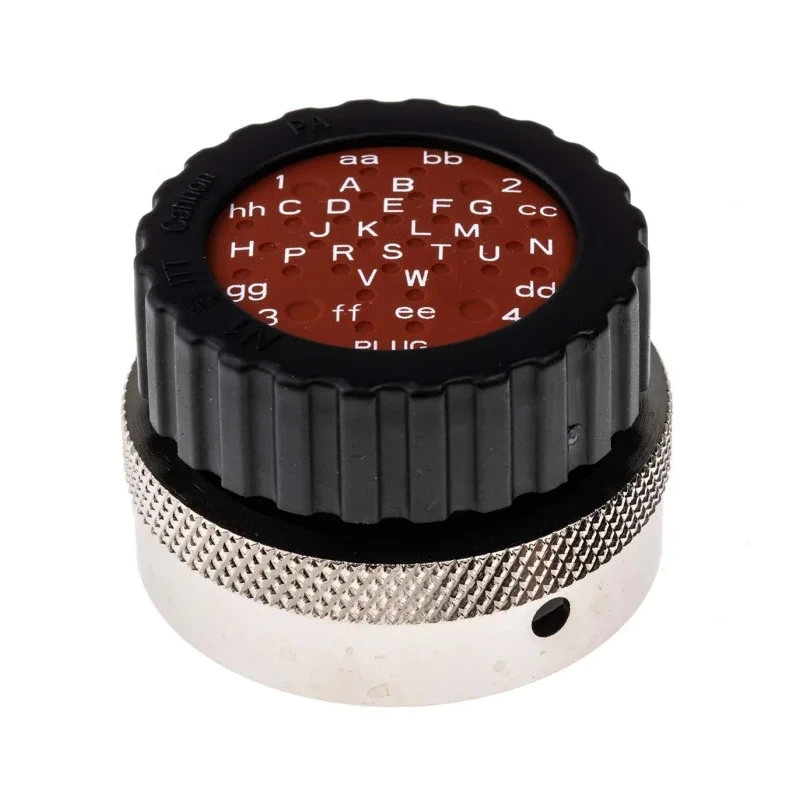

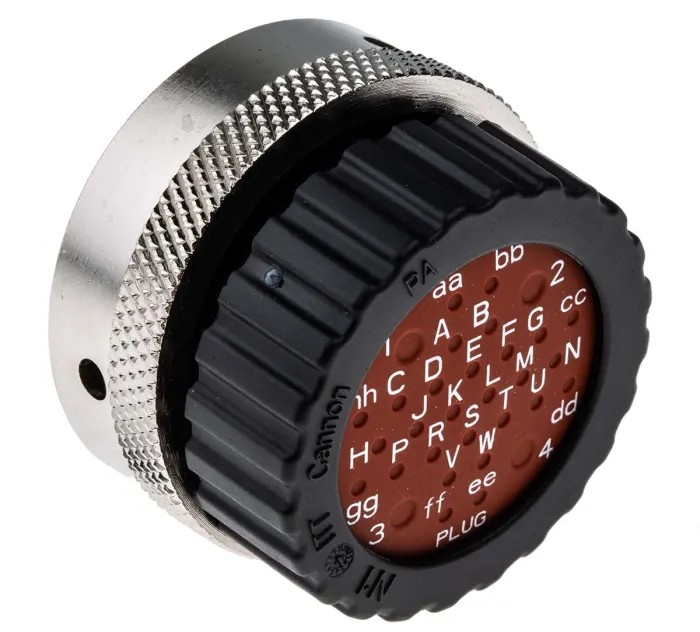

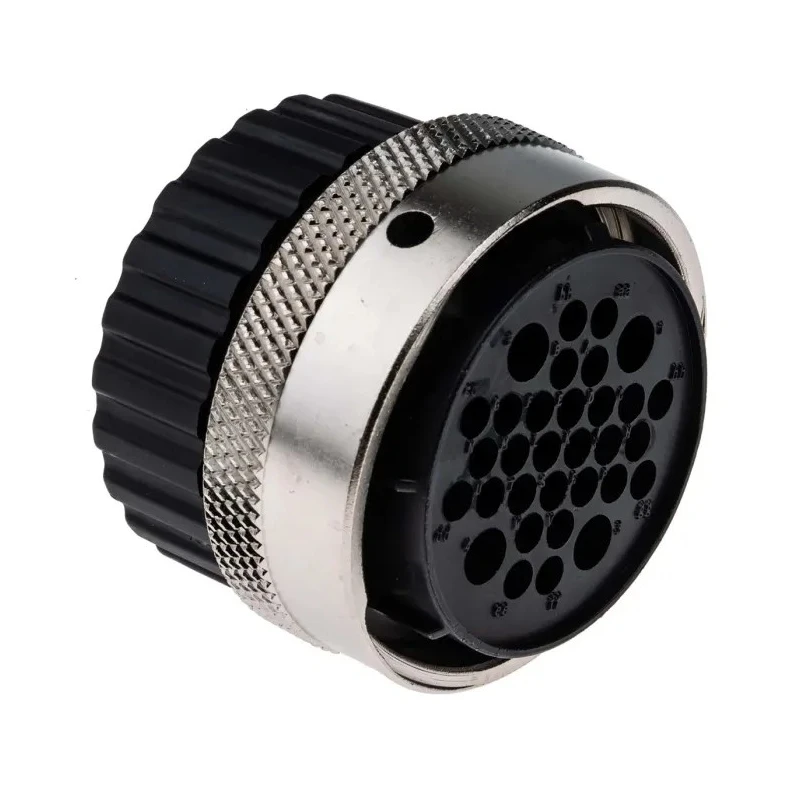

ITT Cannon Circular Connector 32 Contacts Cable Standard Plug Female IP67 Trident Neptune Series TN6S24-0428S1L / 192900-0055
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 250V |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 30A |
| Model | TN6S24-0428S1L / 192900-0055 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Contact Material | Copper |
| Series | Trident Neptune |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 32 |
| Contact Plating | Nickel |
| Number of Contacts | 32 |
| Contact Gender | Female |
| Shell Size | 24 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- Designed for industrial use with durable polymer housing.
- Provides secure bayonet mating with metal coupling ring.
- Rated for 250V and 30A current capacity.
- Operates reliably between -55°C and 105°C.
- Contact plating of nickel over copper material ensures corrosion resistance.
- Suitable for automotive, marine, and outdoor electronics applications.
- Maintains IP67 ingress protection with a robust wire seal and screw ring.
- Compatible with standard bayonet mount panel sockets only.
Product Description
ITT Cannon TN6S24-0428S1L / 192900-0055 Circular Connector is a cable mount plug featuring 32 female contacts and a standard connector size. This industrial-grade connector belongs to the Trident Neptune Series, designed to provide robust and reliable connections in harsh environments including automotive, marine, process control, and outdoor electronics systems.
The connector housing is made from durable polymer material providing lightweight yet sturdy protection. Featuring a metal coupling ring and bayonet mating system, the connector ensures secure engagement and resistance against mechanical stresses. It supports a current rating of 30A and is rated for 250V operating voltage.
Rated IP67, this connector sustains waterproof and dust-tight performance. Its wire seal includes a membrane design held by a screw ring that is replaceable with backshell accessories to maintain sealing integrity. Operating temperature ranges from -55°C minimum up to 105°C maximum, suitable for demanding industrial and automotive climates.
Contacts are constructed of copper with nickel plating to prevent corrosion and enhance conductivity. This plug accepts pin contacts and is compatible only with panel mount sockets featuring corresponding bayonet and gender configurations.
Designed for industrial use with durable polymer housing. Provides secure bayonet mating with metal coupling ring. Rated for 250V and 30A current capacity. Operates reliably between -55°C and 105°C. Contact plating of nickel over copper material ensures corrosion resistance.
Suitable for automotive, marine, and outdoor electronics applications. Maintains IP67 ingress protection with a robust wire seal and screw ring. Compatible with standard bayonet mount panel sockets only. Crimp termination for reliable cable connection.
This connector is ideally suited for demanding environments requiring sealed, robust connections with reliable signal and power transmission. Its versatility in industrial, laboratory, automotive, marine, and process control applications makes it a trusted choice.
Explore more in the Industrial Circular Connector category for a wide range of connectors suitable for diverse electrical and electronic installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 250V and a current capacity of 30A.
It operates reliably between -55°C and 105°C, making it suitable for demanding industrial environments.
It features a bayonet mating system with a metal coupling ring for secure engagement.
This connector has 32 female contacts.
The contacts are made of copper and are plated with nickel to enhance conductivity and prevent corrosion.
It has an IP67 rating, ensuring it is waterproof and dust-tight.
This connector uses crimp termination for reliable cable connection.
Yes, it is designed for automotive, marine, and outdoor electronics applications due to its robust construction and IP67 rating.
The housing is made from durable polymer material, providing lightweight yet sturdy protection.
It is compatible only with standard bayonet mount panel sockets that correspond to its gender and bayonet configuration.
The shell size of this model is 24 mm.
The country of origin for this product is Hungary.
