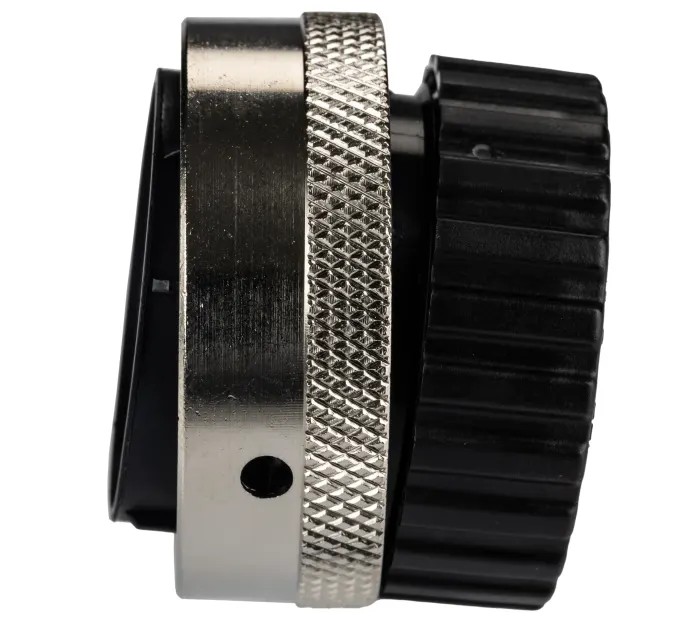

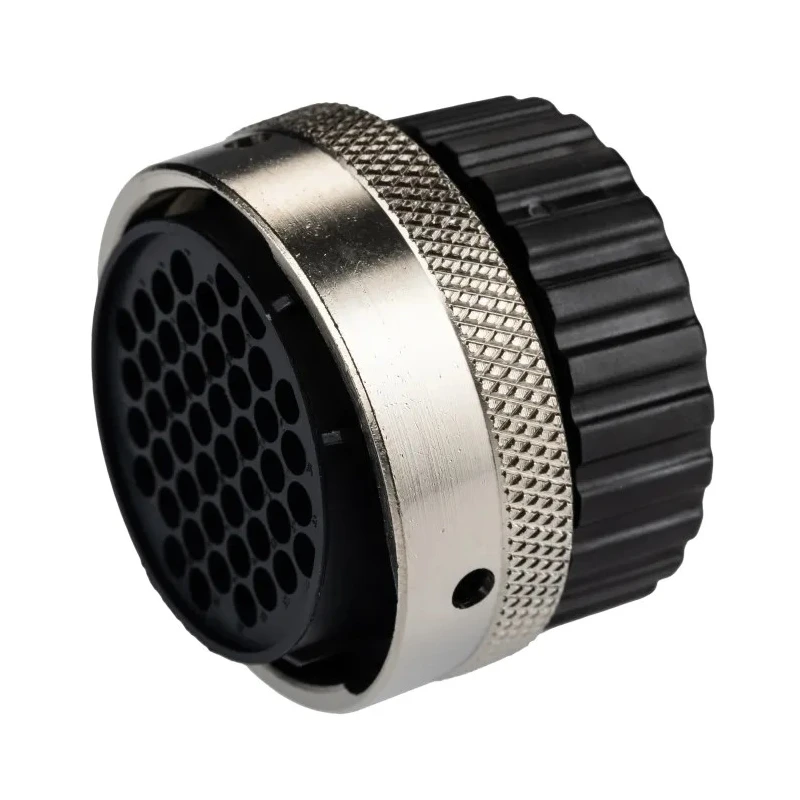

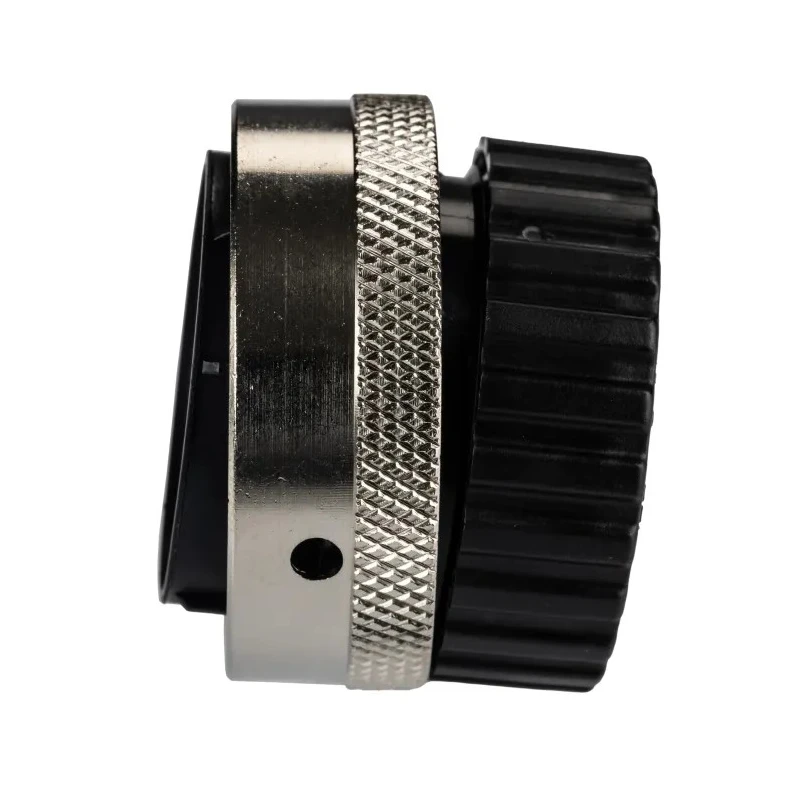

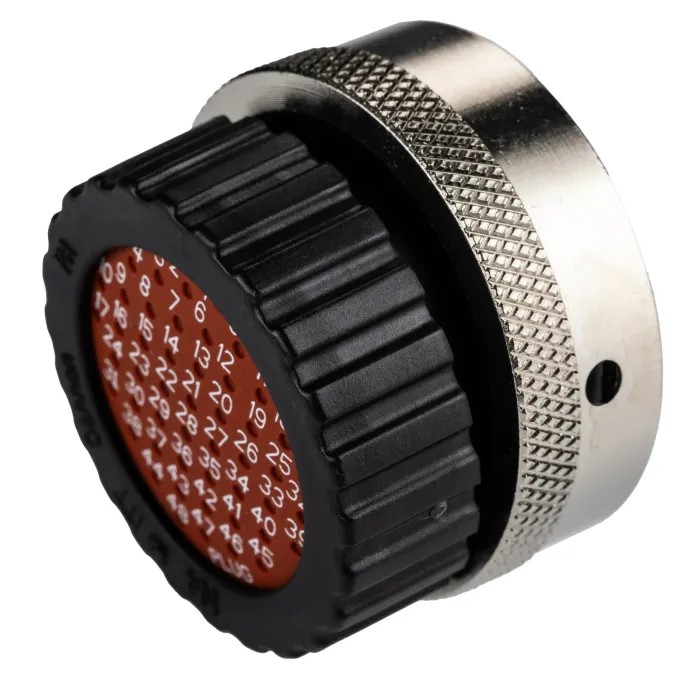

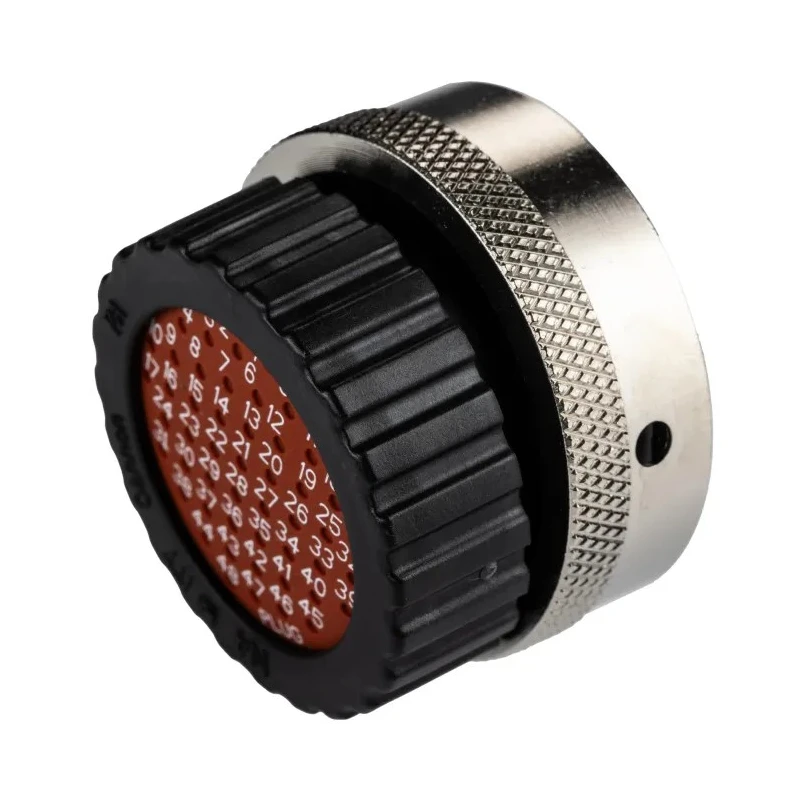

ITT Cannon Circular Connector 48 Contacts Cable Standard Plug Female IP67 Trident Neptune Series TN6S24-0048S1L / 192900-0425
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 250V |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 30A |
| Model | TN6S24-0048S1L / 192900-0425 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Contact Material | Copper |
| Series | Trident Neptune |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |

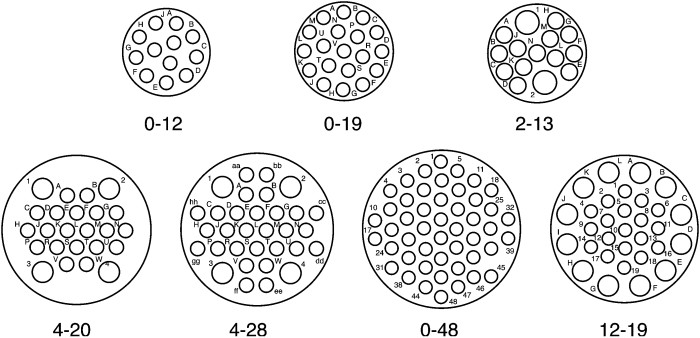

| Pole Format | 48 |
| Contact Plating | Nickel |
| Number of Contacts | 48 |
| Contact Gender | Female |
| Shell Size | 24 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- Designed for demanding outdoor electronics and automotive use.
- Features a strong metal coupling ring ensuring secure bayonet locking.
- Rated for 250 volts and 30 amperes current capacity.
- Constructed with polymer housing and copper contacts with nickel plating.
- Operates reliably between -55°C and 105°C temperature range.
- Termination via crimp type for secure wiring connections.
- Maintains IP67 ingress protection with membrane wire seals and screw ring.
- Compatible with panel sockets and cable mount sockets with matching pin/socket configurations.
Product Description
ITT Cannon TN6S24-0048S1L / 192900-0425 circular connector is an industrial-grade cable mount plug featuring 48 contacts optimized for harsh environments. This connector is part of the Trident Neptune Series, known for robust performance in outdoor electronics, automotive, marine, and process control industries.
The connector incorporates a durable polymer housing combined with a metal coupling ring that provides a strong bayonet locking mechanism for reliable connections. It supports a voltage rating of 250 volts and can handle currents up to 30 amperes, ensuring efficient power and signal transmission through its combined power and signal contacts.
Equipped with a wire membrane seal held securely by a screw ring, the connector maintains an IP67 ingress protection rating, safeguarding against dust and water ingress. It tolerates wide operating temperatures from -55°C up to 105°C, suitable for demanding industrial applications. The contact materials include copper with nickel plating for corrosion resistance.
The connector size is standardized at 24 mm shell diameter with a straight orientation and uses crimp termination for secure and durable wire connections. It is designed to mate specifically with panel sockets and cable mount sockets that have compatible pin and socket contacts respectively.
Durable construction suitable for harsh outdoor and automotive environments. IP67 protection rating for dust and water ingress sealing. Rated for 250 V voltage and 30 A current capacity. Polymer housing with nickel-plated copper contacts for longevity.
Wide temperature tolerance from -55°C to 105°C. Bayonet coupling system ensuring secure mated connection. Crimp termination type for reliable wiring. Standard shell size 24 mm with straight orientation. Compatible with related panel and cable mount connectors.
This connector is ideal for industrial, automotive, marine, and electrical manufacturing uses requiring durable, weatherproof circular connectors. Browse the Industrial Circular Connector category on EnvMart for related ITT Cannon connectors and accessories.
