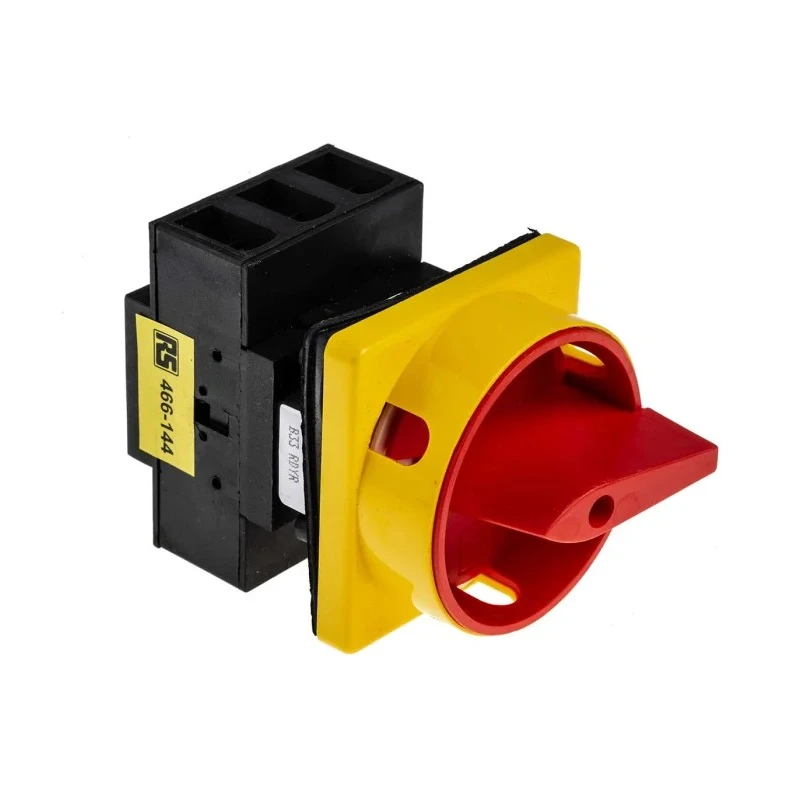

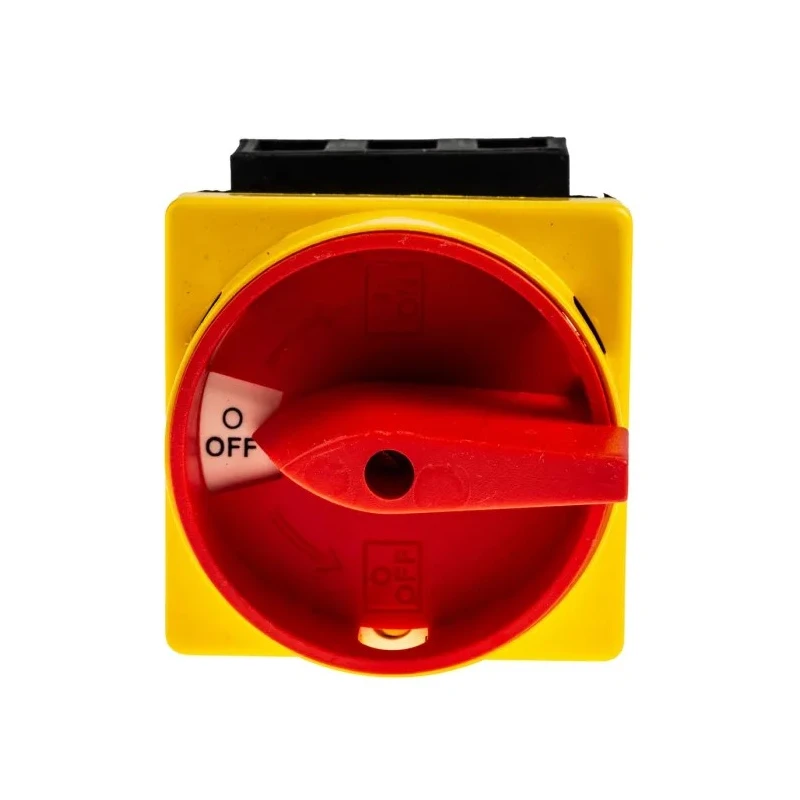

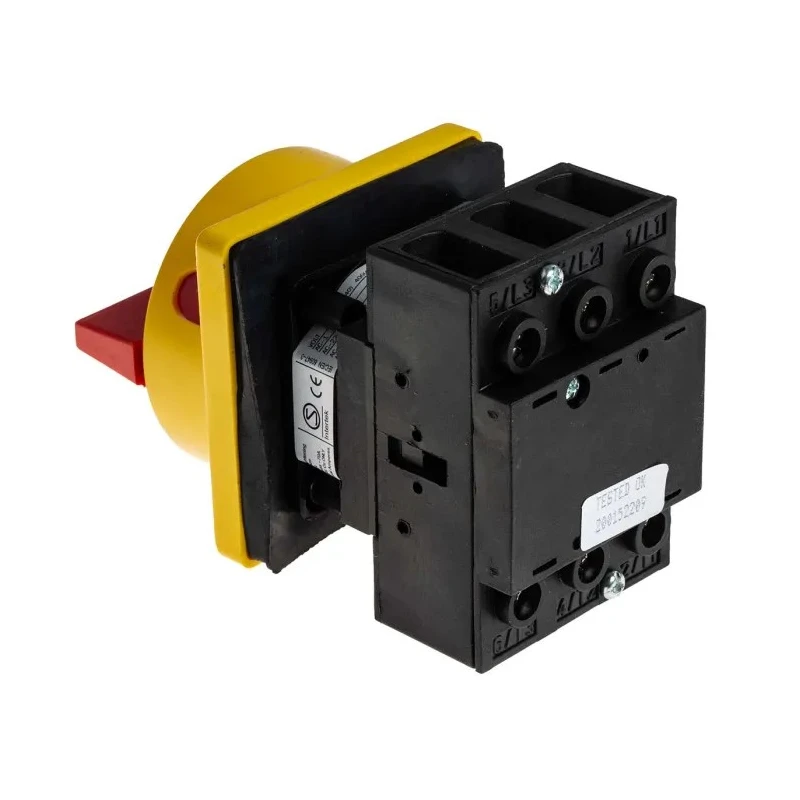

RS PRO 3-Pole Panel Mount Isolator Switch, IP65, 40A, 45 kW IP65

RS PRO IP65 3-Pole Panel Mount Isolator Switch is an advanced, padlockable non-fused isolator designed for low voltage switchgear applications such as power distribution, load isolation, and motor start/stop functions. It is engineered for panel mounting with a single hole and compact actuator dimensions of 64x64x32mm.

This isolator switch is rated for a switching current of 40A and a switching power of 45 kW, suitable for 3-phase electrical systems with switching AC voltage up to 750V. The device features a red handle for clear identification and uses screw terminals for secure electrical connections.

Designed with IP65 rating, the switch provides excellent protection against dust ingress and offers finger protection during operation. The padlock compatibility enhances safety by enabling secure locking during maintenance or isolation procedures.

The switch’s operational temperature range from -25°C to 40°C makes it suitable for diverse industrial environments. It meets international standards including IEC, EN, UL, and RoHS, ensuring compliance, reliability, and environmental safety.

Additional features include forced open contacts to prevent accidental closure and a 90° switching angle for clear on/off positions. Its compact size allows installation in panels with a maximum thickness of 3mm and depth requirements between 102mm and 117mm behind the panel.

This product is ideal for use in industrial, manufacturing, electrical panel installations, and other commercial applications requiring safe and reliable circuit isolation. Designed for panel mounting with compact dimensions of 125mm length and 100mm width.

Features IP65 protection rating ensuring total dust ingress protection. Equipped with a red handle and screw terminal type for secure wiring. Padlock compatible for enhanced safety during maintenance. Suitable for 3-phase electrical systems with 750V AC switching voltage.

Supports operating temperatures ranging from -25°C to 40°C. Complies with IEC, EN, UL, and RoHS standards to ensure quality and safety. Provides finger protection, forced open contacts, and 90° switching angle. Explore more high-quality Isolator Switches and electrical components in the Electronics & Electricals category at EnvMart.
