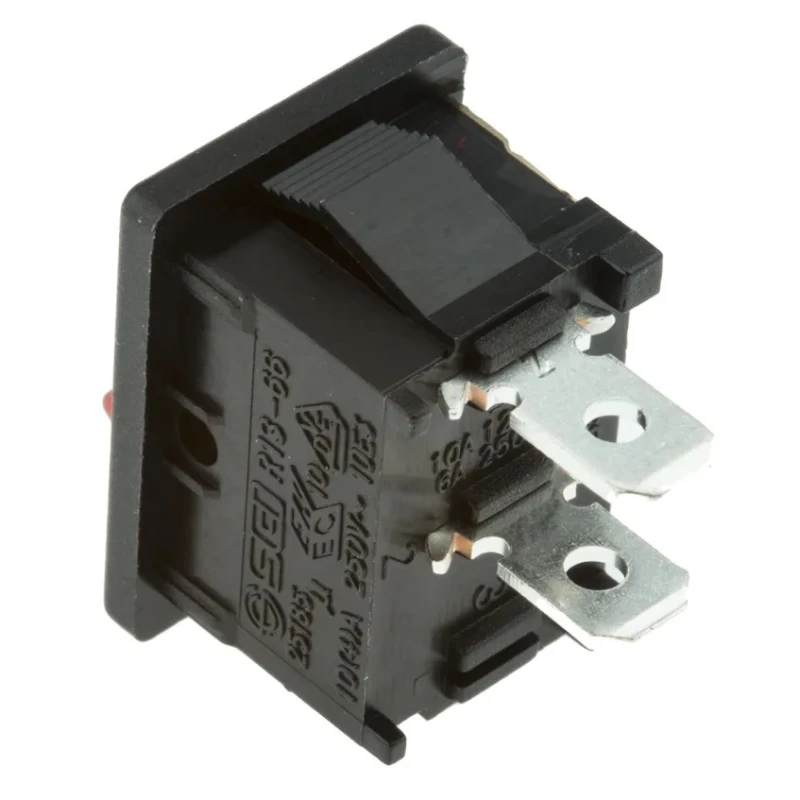

RS PRO Panel Mount Nylon Housing SPST On-Off Rocker Switch Red Actuator 16A 250V AC 28V DC 419-750

RS PRO 419-750 is a high-quality panel mount rocker switch characterized by its SPST (Single Pole Single Throw) On-Off switch configuration, designed for use in diverse electrical applications requiring secure and reliable switching.

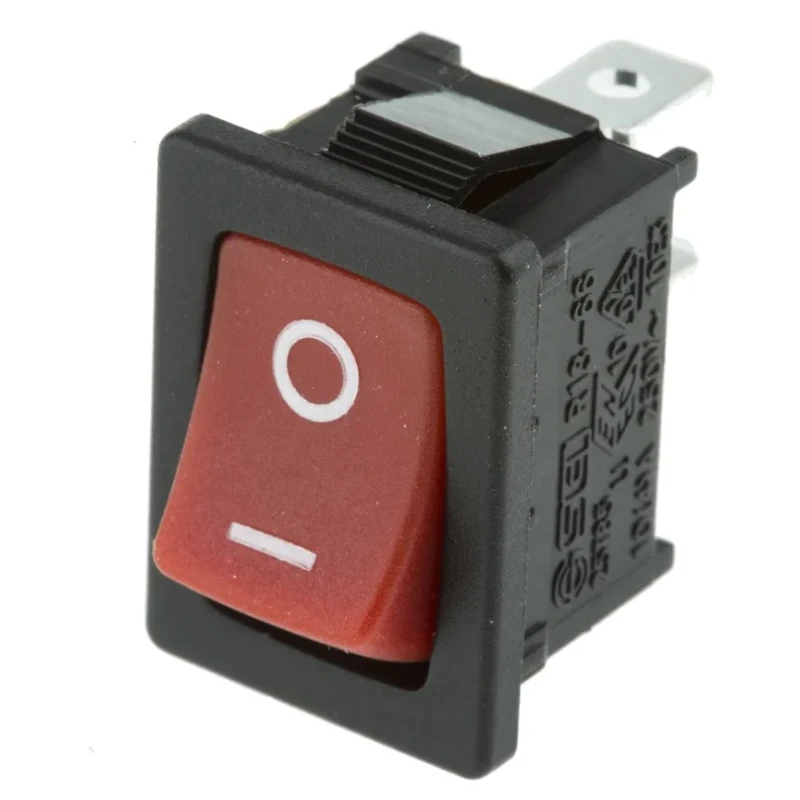

The switch's housing is constructed from durable nylon material conforming to UL94V-2 flammability standards, providing excellent safety and durability. The rectangular red actuator with white I/O markings allows clear visual indication of switch status, enhancing user interface and reducing errors during operation.

Technical specifications include a robust switching capability of 16A at 250V AC and 28V DC contact voltages, making it suitable for both alternating and direct current circuits. The panel cutout size of 13 x 19.8 mm allows precise fitting in electrical panels with a snap-in mounting design that enables quick and secure installation without additional hardware.

Terminals are silver-plated brass with 4.8 mm quick connect blade terminals, facilitating easy connection and disconnection during installation or maintenance. The device is IP66 rated, ensuring protection against dust ingress and powerful water jets, suitable for industrial, commercial, and harsh environment applications.

The operational temperature range extends from -20°C to 85°C, guaranteeing functionality in ambient conditions encountered in industrial and commercial environments. The switch meets multiple compliance standards including CSA, RoHS, BS, CE, VDE, and UL, thereby ensuring adherence to international safety and quality requirements.

This rocker switch is ideal for use in power supplies, audio and video equipment, domestic appliances, computing devices, automation and control systems, and automotive electrical systems. Its reliable switching performance and robust construction meet the demanding needs of industrial and commercial users.

The switch features a durable nylon UL94V-2 housing for enhanced safety and robustness. Operating current capacity is 16A at 250V AC and 28V DC voltage ratings. The actuator is rectangular and colored red with white I/O markings for clear operation feedback.

Designed for panel mounting with a 13 x 19.8 mm cutout size for easy installation. Equipped with silver-plated brass terminals and 4.8 mm quick connect blades for secure and fast wiring. IP66 rated for protection against dust and water ingress, suitable for harsh environments.

This switch operates reliably between -20°C and 85°C, ensuring performance in varied temperature conditions. Compliance with standards includes CSA, RoHS, BS, CE, VDE, and UL approvals for industrial safety and quality assurance.

EnvMart offers a comprehensive catalog of RS PRO switching components, including this 419-750 Rocker Switch, ideal for engineers and maintenance professionals working in electrical, automation, and industrial system design.
