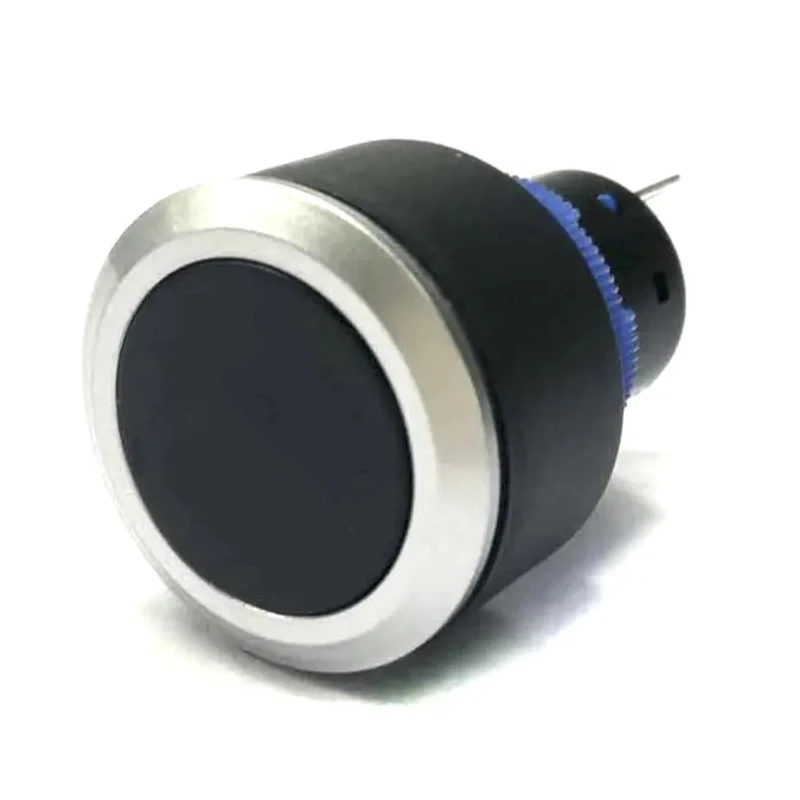

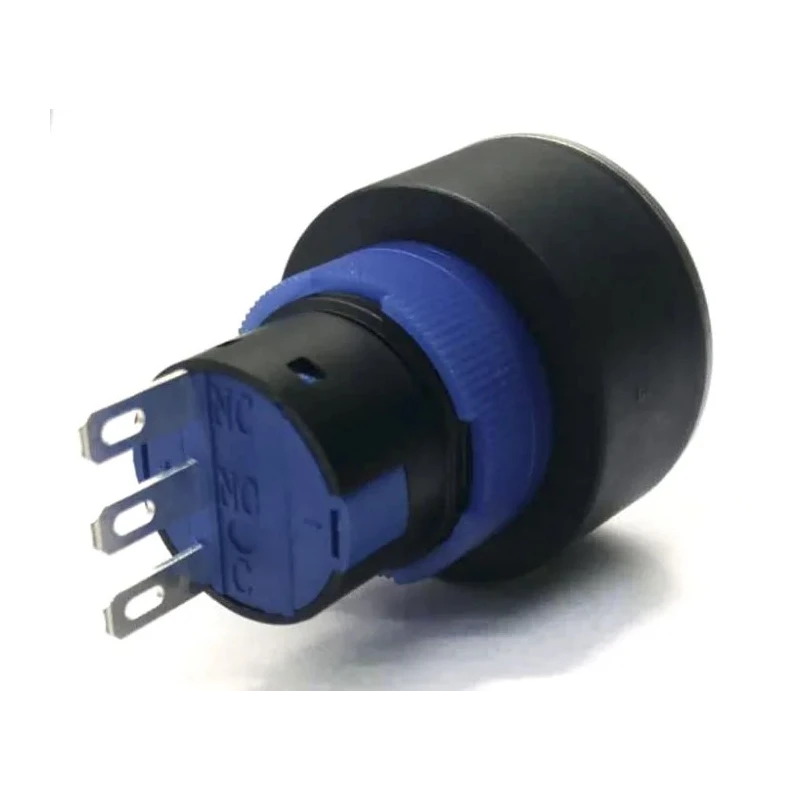

RS PRO KPB22 Series Push Button Switch Momentary Panel Mount 22.2 mm Cutout SPDT IP65 36 V DC 250 V AC KPB22

Name: RS PRO KPB22 Series Push Button Switch Momentary Panel Mount 22.2 mm Cutout SPDT IP65 36 V DC 250 V AC KPB22
Brand: RS PRO
SKU: 97120
Price: 1501.8 INR
Availability: InStock



Category Push Button Switch Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	KPB22
IP Rating	IP65
Mount Type	Panel
Series	KPB22
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-35°C
Panel Cutout Size	22.2 mm
Terminal type	Solder
Standards/Approvals	RS
Switch Operation	Momentary
Actuator Colour	Black
Contact DC Voltage	36V dc
Actuator Style	Flat
Switch Contact Current	5A
Contact AC Voltage	250V ac

Key Features

The actuator color is black with a flat style for easy operation.
The switch is non-illuminated, enhancing simplicity in design.
It supports a contact DC voltage of 36 V and an AC voltage of 250 V.
The switch operates reliably in temperatures ranging from -35°C to 70°C.
It features a solder terminal type and conforms to RS standards for quality assurance.
Its IP65 rating ensures protection against dust and water ingress.
Ideal for use in communication, automation, and industrial equipment.

Product Description

RS PRO KPB22 Series push button switch is a momentary, single pole double throw (SPDT) switch designed for panel mounting with a 22.2 mm cutout. It features a black flat actuator style and is non-illuminated. This switch is IP65 rated, protecting it against dust and low-pressure water jets, making it suitable for harsh environments.

It supports contact voltages of 36 V DC and 250 V AC with a contact current rating of 5 A. The switch utilizes solder terminals for secure connectivity and meets RS standards, ensuring reliable performance and quality.

The operating temperature range of -35°C to 70°C allows its use in diverse industrial, communication, automation, and electronic measuring applications.

This lightweight switch has a plastic cover with a carved pattern and a silver metal cap, though it is not illuminated, ensuring durability and easy integration into control panels.

The actuator color is black, providing a professional finish suitable for industrial equipment. The momentary switch operation returns to the default position when released. SPDT contact configuration allows switching between two circuits.

The panel cutout size of 22.2 mm facilitates straightforward mounting into panels. Its IP65 rating guarantees dust-tight enclosure and water resistance. Designed for industrial, communication, and automation equipment use cases.

RS PRO products are manufactured to high-quality standards, and this KPB22 push button switch is no exception, serving as a reliable component in various industrial installations. Explore the full range of RS PRO Push Button Switches on EnvMart for your automation and control system needs.
