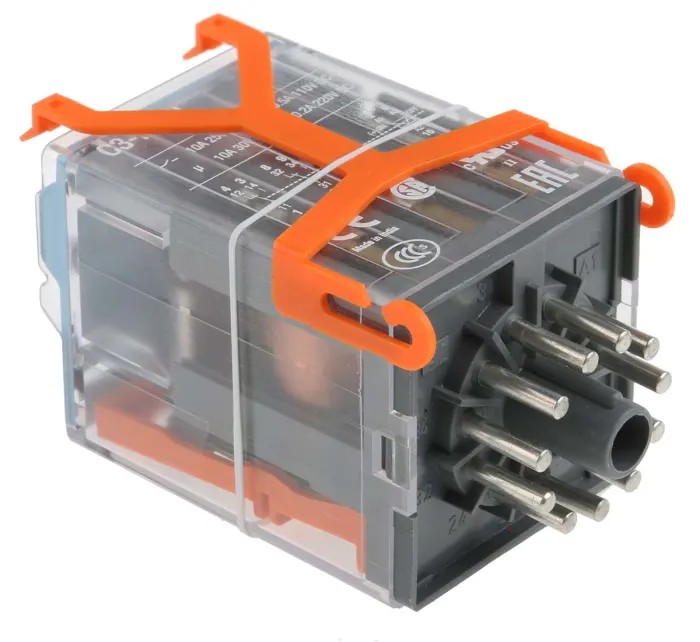

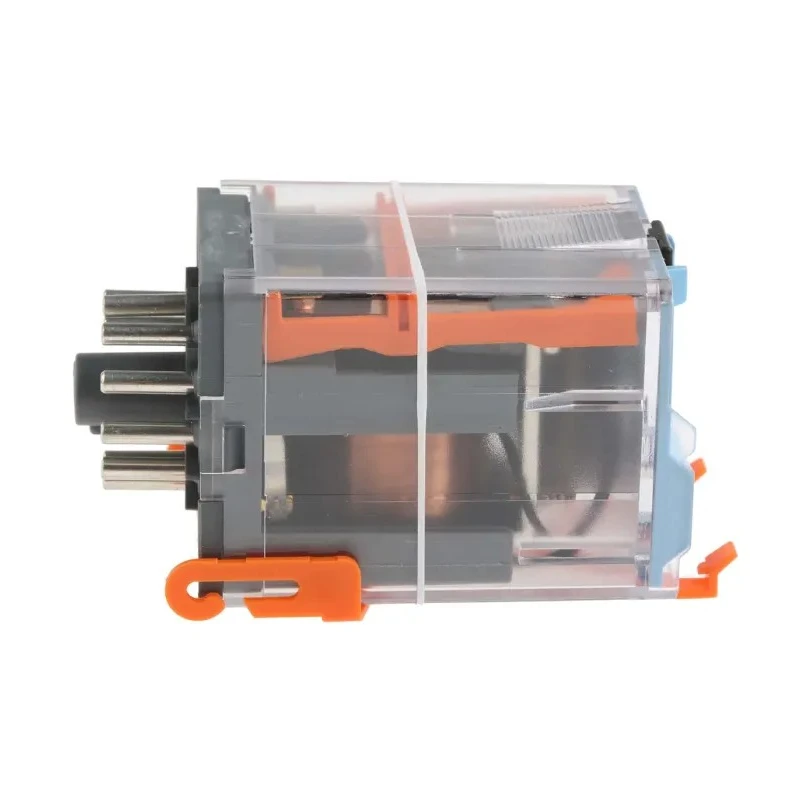

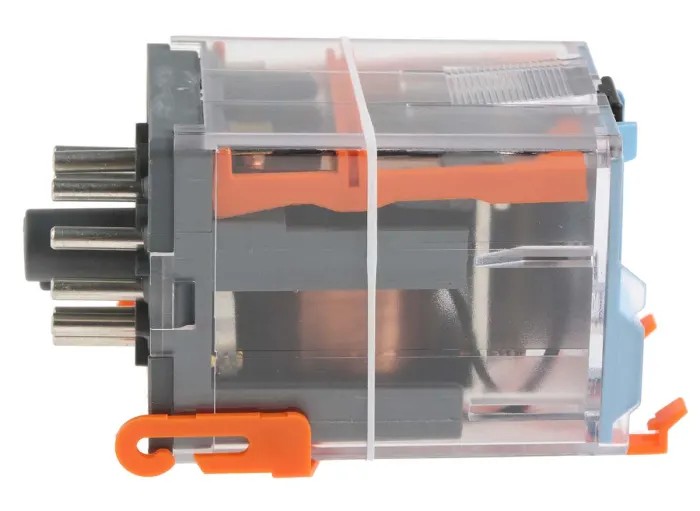

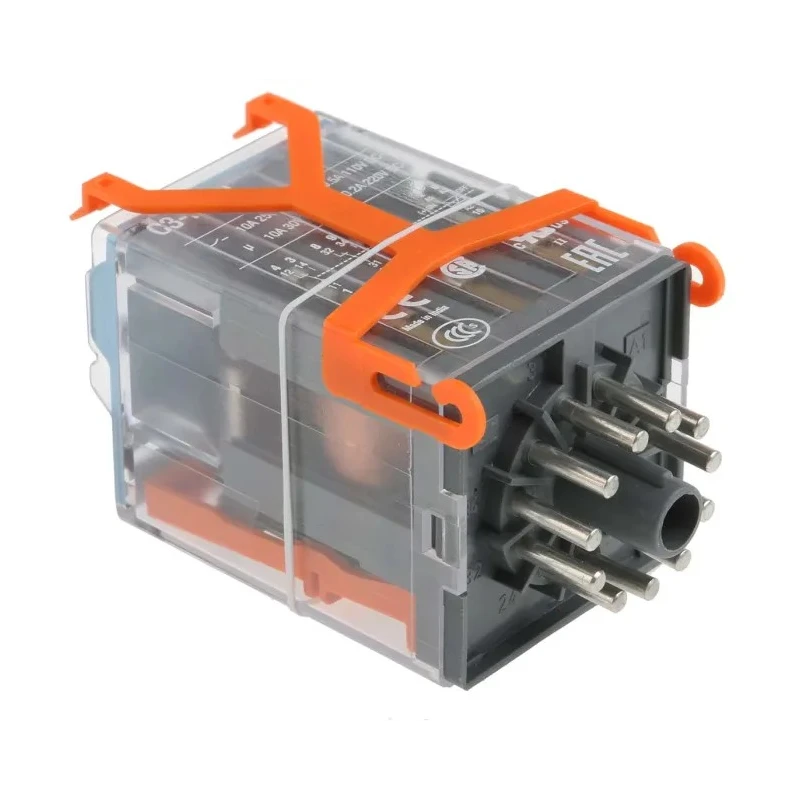

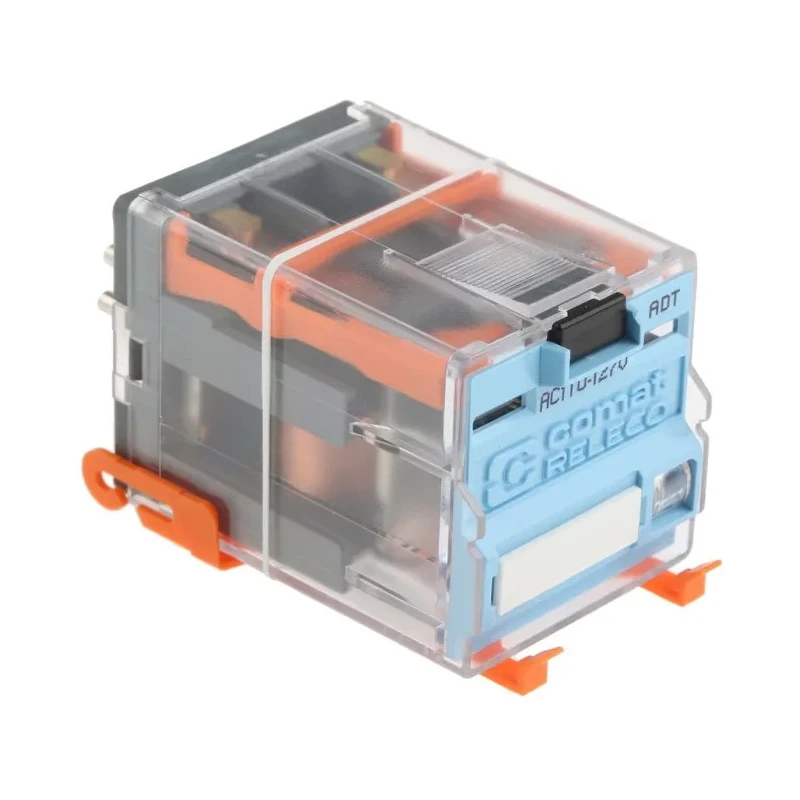

Releco Power Relay 115V AC Coil 10A Switching Current DPDT Silver Alloy Contacts C3-R20N

Releco C3-R20N Power Relay is a robust industrial-grade relay equipped with a 115V AC coil and a DPDT configuration, capable of handling a switching current of 10A. This plug-in type latching relay retains its switching state regardless of coil excitation, supporting bi-stable operation and offering efficient control in automated and electrical circuits.

Constructed with silver alloy contacts, the relay ensures high conductivity and long service life. Its coil resistance stands at 16 ohms, with coil power consumption of only 1.5W, making it energy-efficient. The relay accommodates a broad operating temperature range from -40°C to 60°C, making it suitable for demanding environments.

The compact dimensions of 35mm length, 35mm width, and 66mm height allow for ease of installation in control panels and industrial systems. Terminal connections use solder type for secure and reliable mounting. The relay includes a mechanical flag indicator to visually confirm the contact status and a color-coded test button that functions both as a push-to-test and lift-to-latch control.

Typical industrial applications encompass HVAC equipment, anti-condensation devices, coffee machines, car washing systems, commercial cooking appliances, driers, pumps, refrigeration equipment, and industrial cleaning machines. This versatility makes the C3-R20N an ideal choice for electrical automation and relay switching systems.

Certified to standards including EN, CSA, RoHS, IEC, and UL, it meets rigorous quality and safety criteria. The relay's meticulous design and reliability make it a dependable component in electrical installations and machinery control.

The relay supports a switching current of 10A for various electrical applications. It includes a silver alloy contact material to ensure durability and reliable conductivity. The coil resistance is rated at 16 ohms with 1.5W coil power consumption.

Designed for operating temperatures from -40°C to 60°C, suitable for harsh environments. The relay uses a solder terminal type and has a compact form factor of 35mm by 35mm by 66mm height. It is an AC powered plug-in latching relay with a test button for manual operation.

Features mechanical flag indicators to signal contact state clearly. Applications include HVAC systems, commercial cooking equipment, industrial cleaning machines, pumps, and refrigeration units. Compliant with international standards including EN, CSA, RoHS, IEC, and UL certifications.
