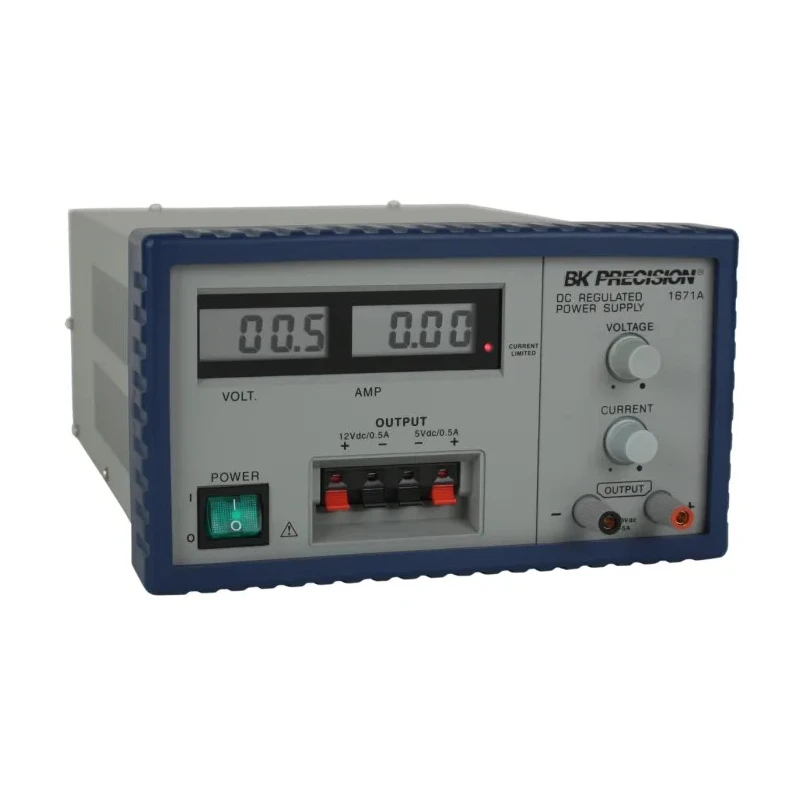

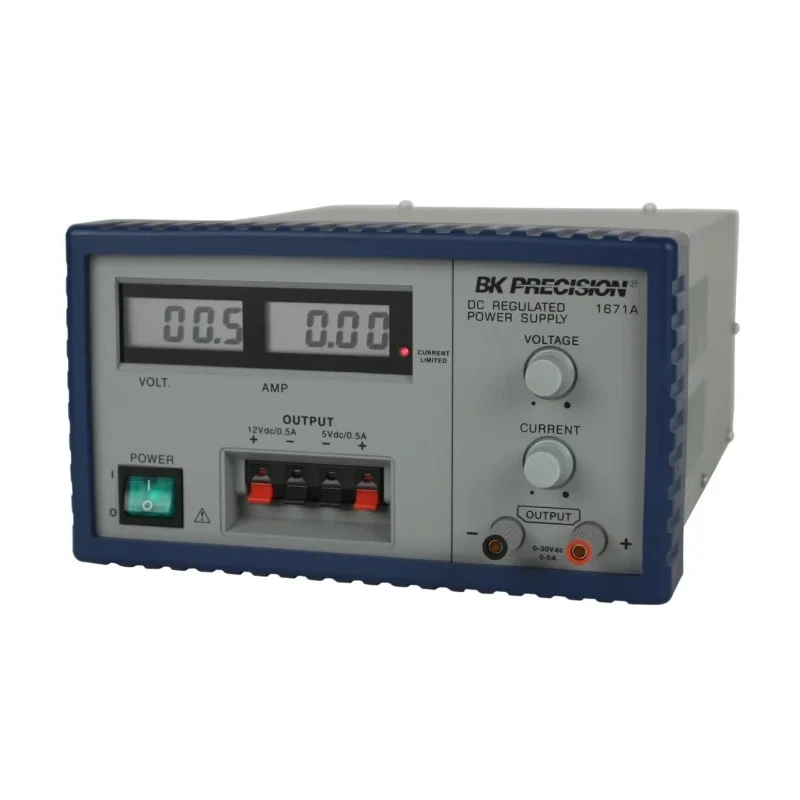

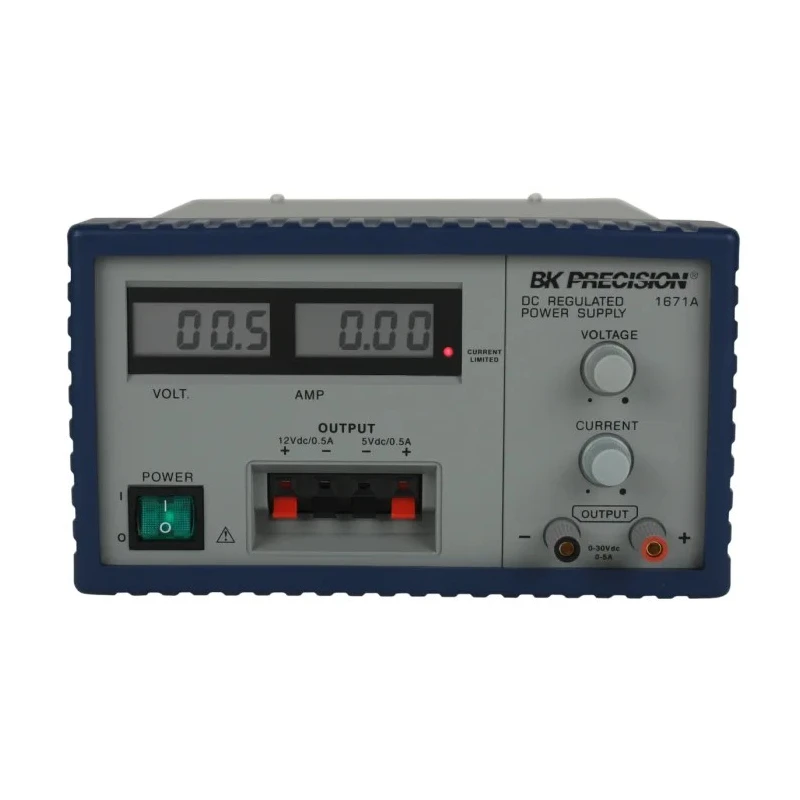

BK Precision Digital Bench Power Supply 3-Output 0 V AC to 30 V AC 158 W 5 A Max BK1671A

BK Precision BK1671A digital bench power supply is a versatile and reliable instrument designed for accurate voltage and current delivery across three isolated outputs with a combined power rating of 158 W.

The adjustable output provides voltage from 0 V up to 30 V with a current range up to 5 A, making it suitable for diverse bench testing and development environments. Along with this, the unit features two fixed outputs at 12 V and 5 V with 500 mA current capacity each, ideal for powering auxiliary circuits.

This power supply incorporates a dual 3-digit LCD display, enabling clear real-time monitoring of voltage and current parameters, facilitating precise adjustments during testing procedures.

To enhance operational safety and equipment protection, BK1671A offers constant voltage and constant current modes alongside several protective mechanisms including short circuit protection, current limiting, reverse polarity protection, and overvoltage protection.

Its compact form factor measuring 216 mm in width, 124 mm in height, and 292 mm in depth supports easy placement on workbenches while its weight of 6.5 kg ensures portability without compromising stability.

This model is powered by AC supply ranging from 115 V to 230 V via an IEC 320 standard plug, optimized for use in industrial, laboratory, medical, electronic, and educational sectors where multi-voltage power sources are required simultaneously.

Common applications include troubleshooting and powering circuit boards which require multiple input voltages such as 5 V and 12 V lines, making it an essential tool for engineers and technicians.

Provides three fully isolated outputs including 0 to 30 V adjustable output and fixed 12 V and 5 V outputs. Maximum output current of 5 A for adjustable output and 500 mA for fixed outputs. Equipped with dual 3-digit LCD display for voltage and current monitoring.

Protective features include short circuit, reverse polarity, overvoltage, and current limiting. Compact dimensions of 216 mm width, 124 mm height, and 292 mm depth with a weight of 6.5 kg. Designed for industrial, medical, electronic equipment testing, and educational applications.

Supports constant voltage (CV) and constant current (CC) operation modes. Suitable for troubleshooting circuit boards requiring multiple input voltages. Operates between 0°C and 40°C with IEC 320 plug type for 115 V to 230 V AC supply range.
