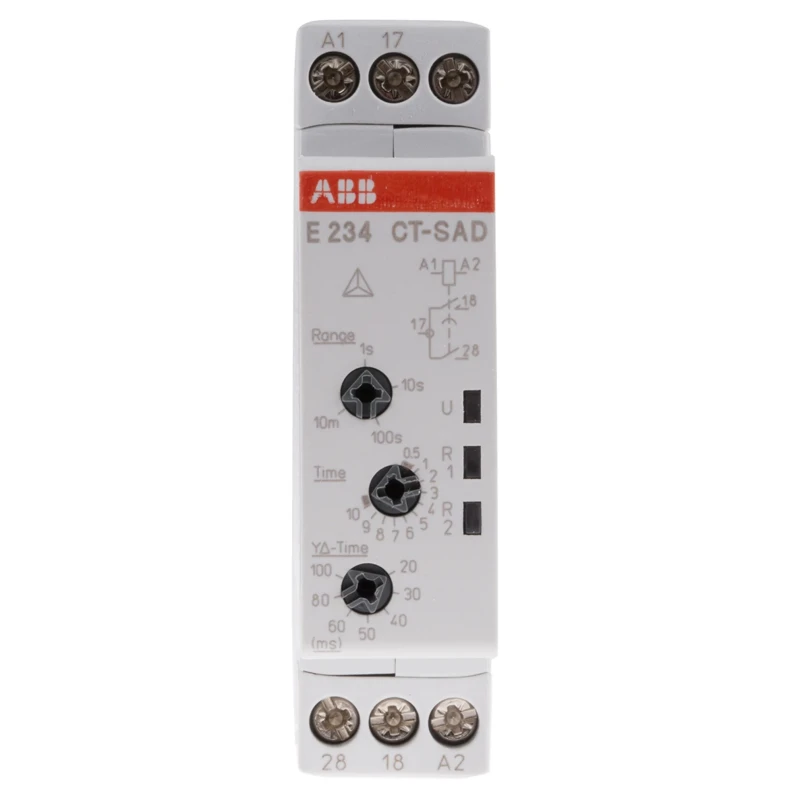

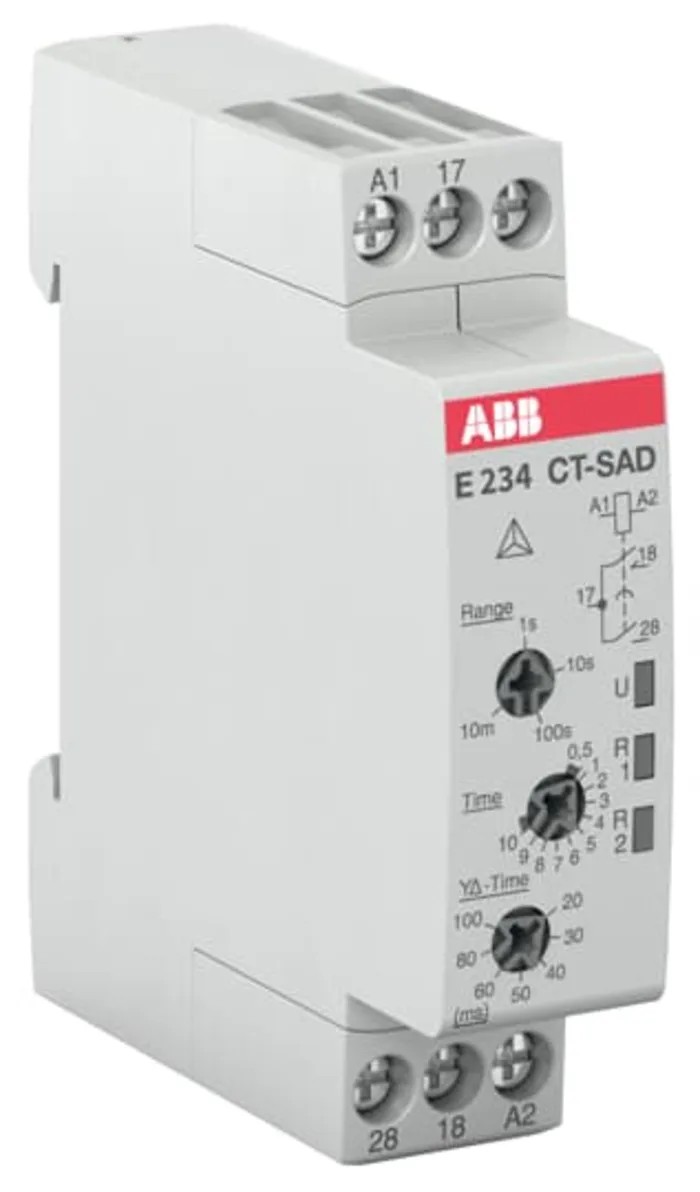

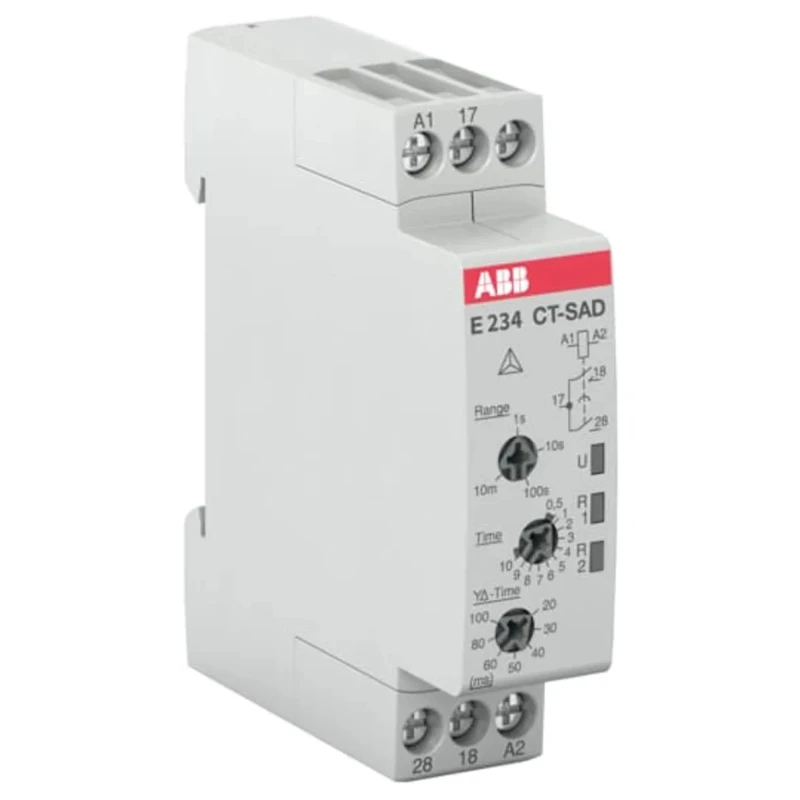

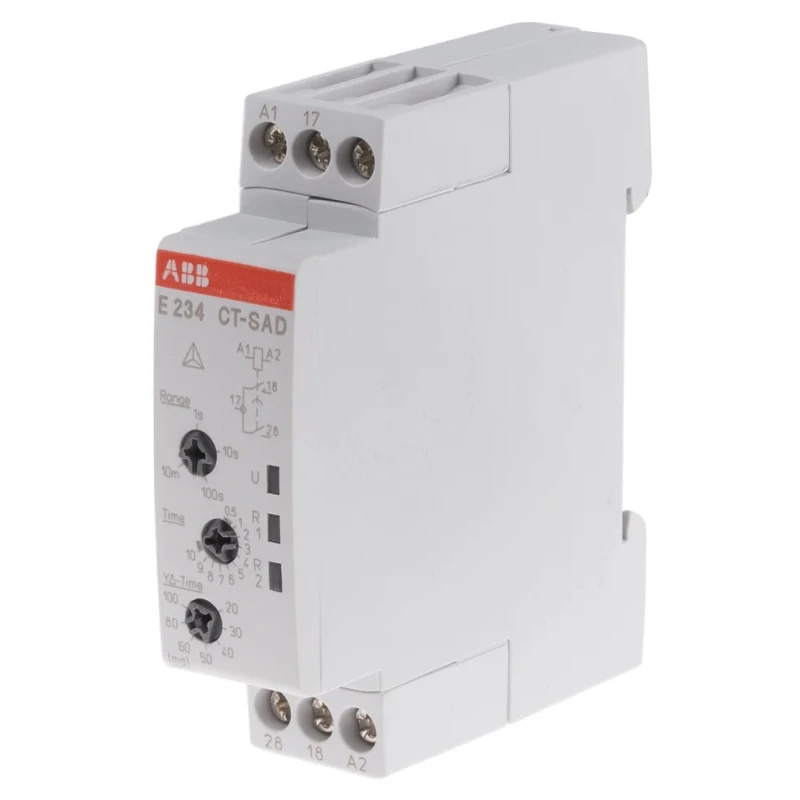

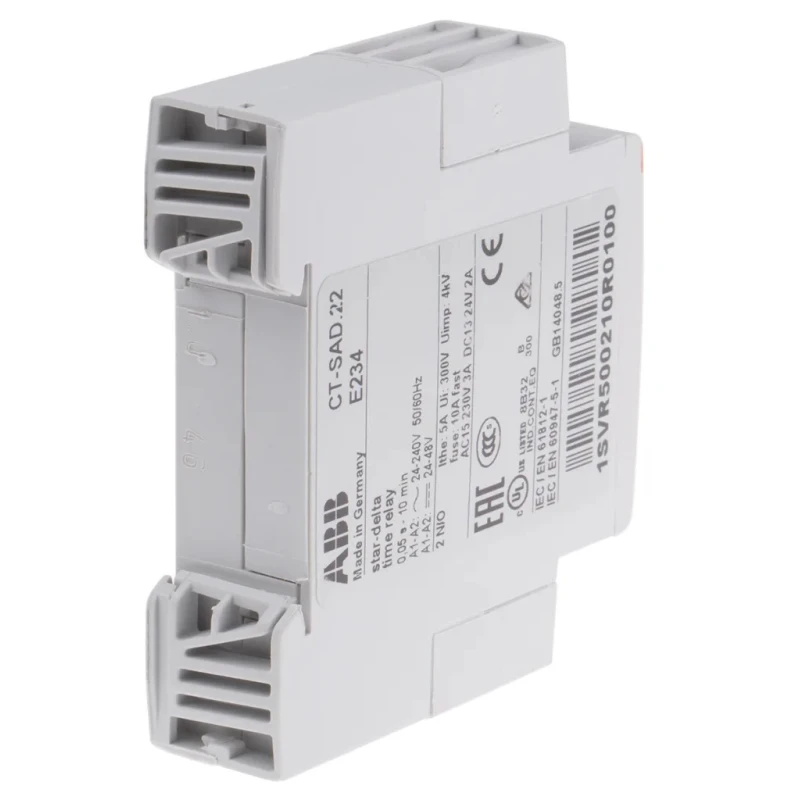

ABB 1SVR Series DIN Rail Timer Relay 2-Contact 48 V dc 24V ac 240 V ac 0.05 s to 10 min 1SVR500210R0100 - CT-SAD.22

ABB 1SVR500210R0100 - CT-SAD.22 DIN Rail Timer Relay is a high-precision timing device designed for industrial automation and control applications. This relay features a DPST (Double Pole Single Throw) contact configuration with two contacts capable of carrying 3A current, allowing simultaneous switching operations. It supports versatile supply voltages including 48 V dc and 24/240 V ac, enhancing its flexibility for various control system designs.

The timing delay range spans from 0.05 seconds to 10 minutes, adjustable via an easy-to-use screwdriver slot, enabling fine-tuned control for processes that require exact timing. The unit is mounted on a standard DIN rail, facilitating quick and tool-free installation within control panels. Its compact size of 22.5mm width, 78mm length, and 100mm height allows integration into small enclosures without sacrificing performance.

Built to withstand industrial environments, it operates efficiently over a temperature range from -20°C to +60°C. Front-facing LED indicators provide clear visual feedback on power status and input signals, assisting in quick diagnostics and maintenance. The relay is made to the high-quality standards of ABB with certifications including RoHS and CE, assuring reliability and compliance.

This timer relay is well-suited for applications such as motor starters, assembly lines, and material handling equipment, ensuring synchronized operation and safe control of machinery. The screw-type terminals guarantee secure and lasting electrical connections.

Supports dual supply voltages: 48 V dc and 24/240 V ac for flexible integration. Time delay adjustable from 0.05 seconds to 10 minutes for precise control. DPST contact configuration with 2 contacts suitable for simultaneous switching.

Mounts easily on DIN rail for efficient and tool-free installation. Indicators on the front panel provide clear status of power and input signals. Operates reliably across a temperature range of -20°C to 60°C for varied environments.

Compact dimensions enable fitting in limited enclosure spaces. Terminal type is screw for secure wiring connections. Compliance with RoHS and CE standards ensures quality and safety. Ideal for motor starters, assembly plants, and material handling systems.
