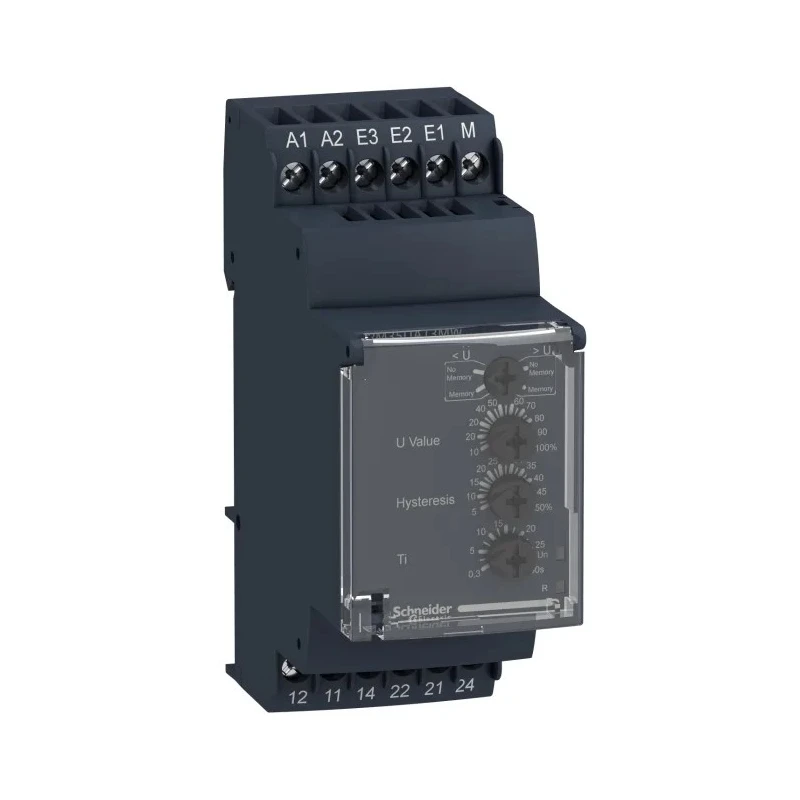

Schneider Electric Monitoring Relay 1/100 V Monitor Range DPDT 240V AC 240V DC DIN Rail RM35UA12MW

Schneider Electric RM35UA12MW Monitoring Relay is a high-precision voltage monitoring device from the Harmony Control series, featuring a 1/100 V monitor range and dual DPDT contact configuration. Designed for DIN rail mounting, it supports supply voltages of 240V AC and 240V DC, providing reliable voltage monitoring and protection.

This relay is engineered to detect overvoltage and undervoltage conditions accurately, protecting sensitive electrical equipment in industrial and automation settings. Its adjustable time delay feature, ranging from 0.3 to 30 seconds, allows customization of response times to suit specific applications.

The device employs sturdy screw terminal connections for secure and easy wiring without the need for cable ends. Visual indicators via green and yellow LEDs signal power and relay status, aiding in monitoring and diagnostics. The relay is suitable for operations within a temperature range of -20°C to +50°C, ensuring robust performance in diverse environments.

Compact dimensions of 90mm height, 72mm length, and 35mm width enable space-efficient installation in control panels and automated machinery setups. The relay complies with international standards NF EN 60255-6 and IEC 60255-6 and holds multiple approvals including UL, CSA, GL, C-Tick, and GOST, affirming its quality and reliability.

Typical applications include voltage level monitoring in industrial processes, protection of electrical systems from voltage fluctuations, and integration into automation systems for precise voltage control. This Monitoring Relay is an essential component for electrical safety and operational continuity in commercial and industrial environments.

Adjustable time delay from 0.3 to 30 seconds provides flexible operation. Dual DPDT contact configuration ensures dependable switching performance. DIN rail mount design allows simple integration into existing setups. Supports 240V AC and 240V DC supply voltages for versatile power compatibility.

Screw terminals provide secure and straightforward electrical connections. Wide voltage sensing range from 1V to 100V enhances application versatility. Standard compliance and multiple certifications guarantee performance and safety.

Visual LED indicators facilitate operation monitoring and fault diagnostics. Durable construction suitable for industrial and automation applications. Explore more professional electrical relays and monitoring solutions in the Electronics & Electricals category at EnvMart for reliable industrial and commercial applications.
