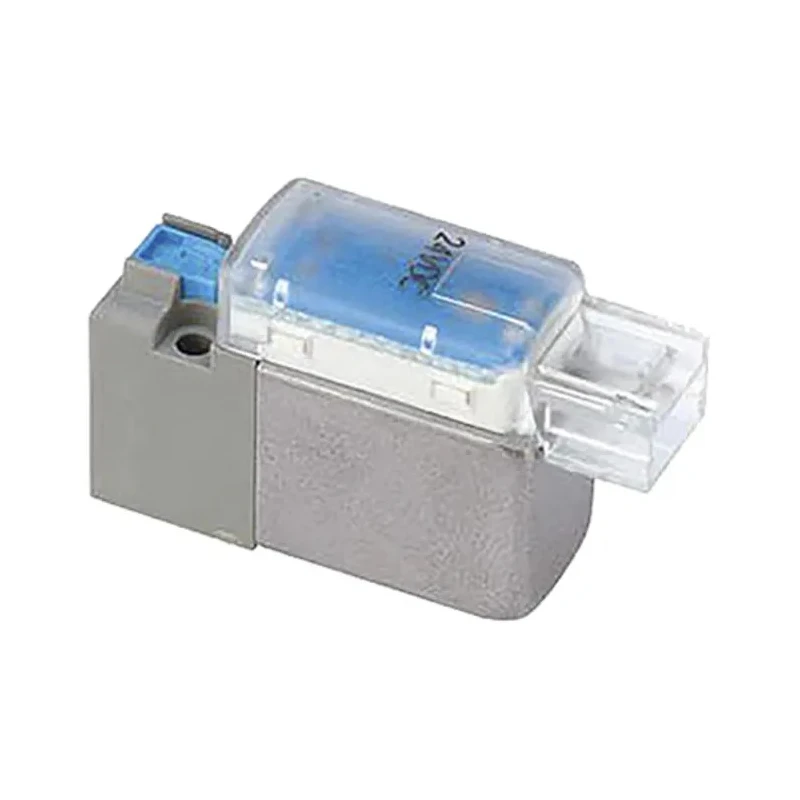

SMC Pneumatic Solenoid Valve NC Solenoid/Spring 3-Port Manifold Mount Resin Body 24V dc VQ100

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve NC Solenoid/Spring 3-Port Manifold Mount Resin Body 24V dc VQ100



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	France
Voltage	24V dc
Brand	SMC
Body Material	Resin
Maximum Operating Pressure	0.7 Mpa
Height	29.2mm
Length	30.7mm
Model	VQ100
Width	14.8mm
Mount Type	Manifold
Series	VQ100
Number Of Ports	3
Maximum Operating Temperature	50°C
Number of Positions	2
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid/Spring
Maximum Flow Rate	19.63NL/min
Standards/Approvals	RoHS
Minimum Pilot Pressure	0MPa
Valve Function	NC
Electrical Connection Type	Plug Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	1W

Key Features

Compact and lightweight design suitable for precise pneumatic control.
Manifold mount type enables easy integration in pneumatic systems.
Operates at a maximum pressure of 0.7 Mpa ensuring reliable performance.
Resin body material offers durability and chemical resistance.
Electrical connection via plug connector for convenient installation.
Designed with two positions for versatile pneumatic valve applications.
Wide operating temperature range from -10°C to 50°C for varied environments.
Low solenoid power consumption of 1W reduces energy use.

Product Description

SMC VQ110-5F-Q is a pneumatic solenoid valve from the VQ100 series, featuring a normally closed (NC) solenoid and spring actuation. It is specifically designed as a compact, ultra-light 3-port valve ideal for manifold mounting in pneumatic control systems. The valve body is constructed from resin, delivering corrosion resistance and durability for industrial and mechanical applications.

This valve supports operation at 24V DC voltage with a low solenoid power consumption of 1 watt, improving energy efficiency. The device operates reliably within a pressure range up to 0.7 Mpa and has a flow rate capacity of up to 19.63 NL/min, suitable for piloting actuators and process valves.

The valve’s operating temperature range from -10°C to 50°C enables usage in various industrial environments, including manufacturing, automation, HVAC, and laboratory pneumatic systems. Its plug connector facilitates quick and secure electrical connections.

The VQ110-5F-Q includes two positions and features a female port gender, which is compatible with standard pneumatic fittings. It does not carry hazardous area certification but meets RoHS standards, ensuring compliance with environmental regulations.

Compact manifold mount 3-port valve designed for efficient pneumatic control. Durable resin body provides chemical resistance and prolonged service life. Low power consumption solenoid reduces operational cost. Supports wide operating temperature and pressure range for diverse applications.

Reliable performance in industrial, manufacturing, HVAC, and laboratory pneumatic systems. Set contains 1 Pc SMC VQ110-5F-Q Pneumatic Solenoid Valve ready for integration in various pneumatic automation tasks. Explore more industrial valves and fittings at EnvMart.
