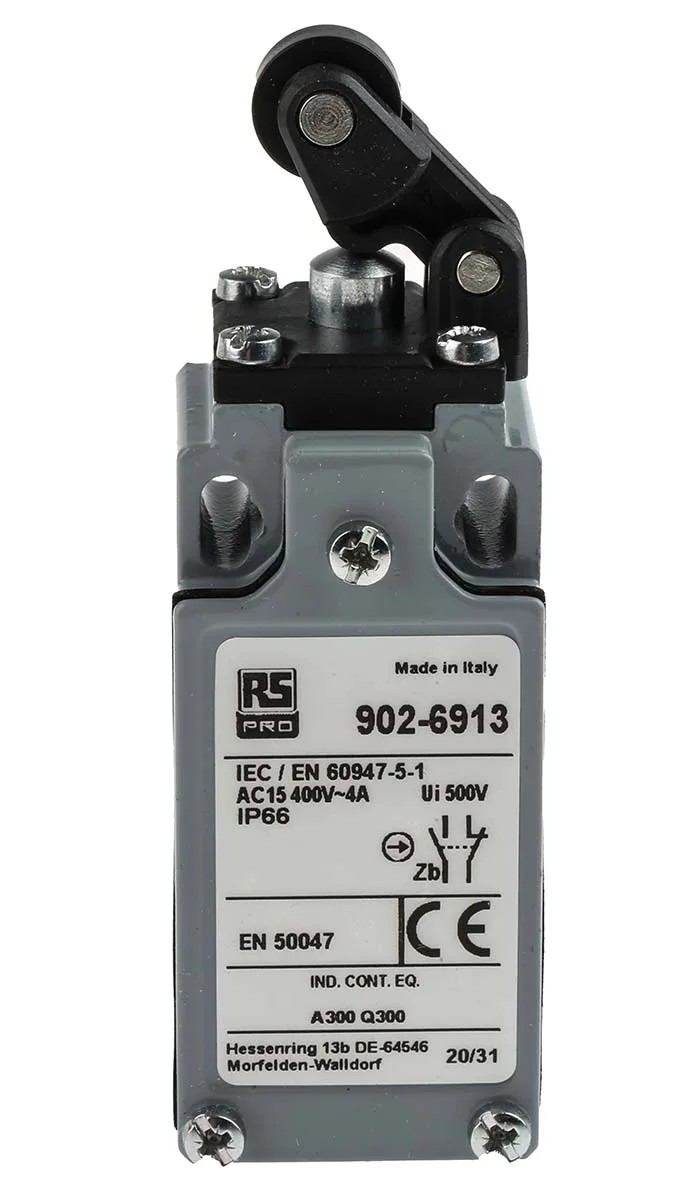

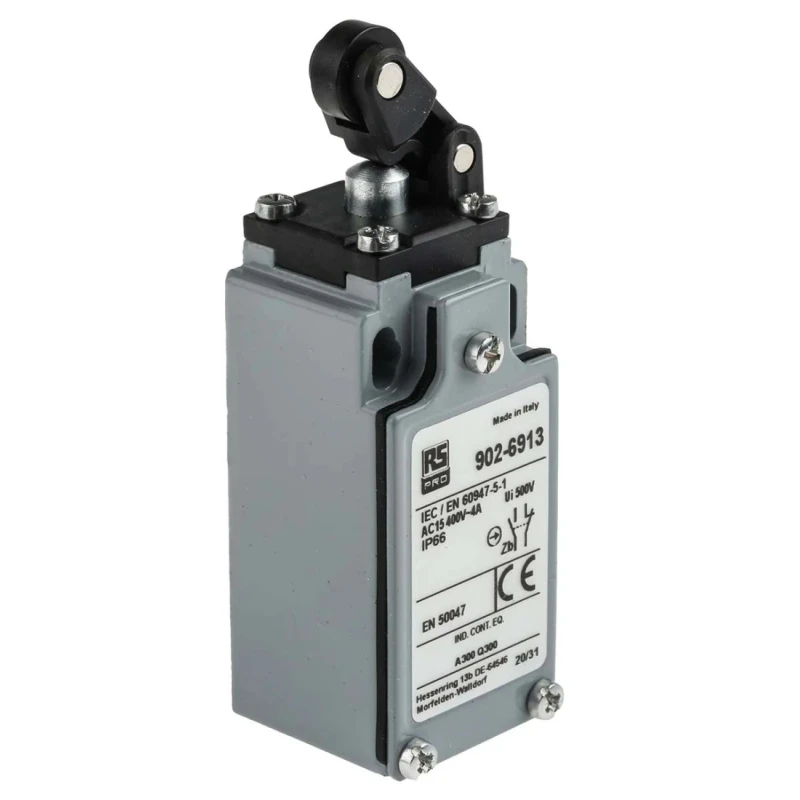

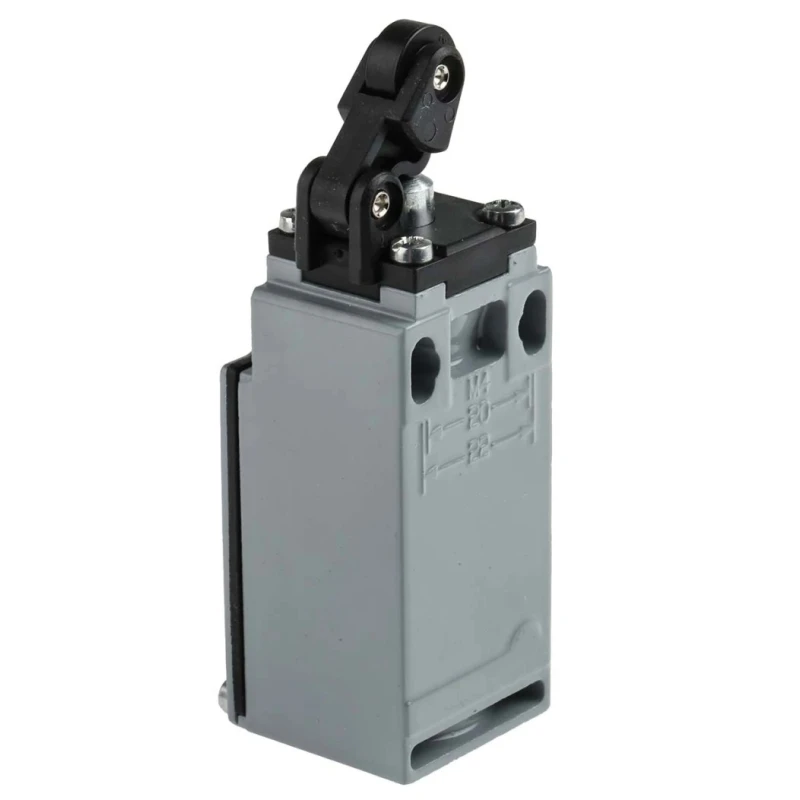

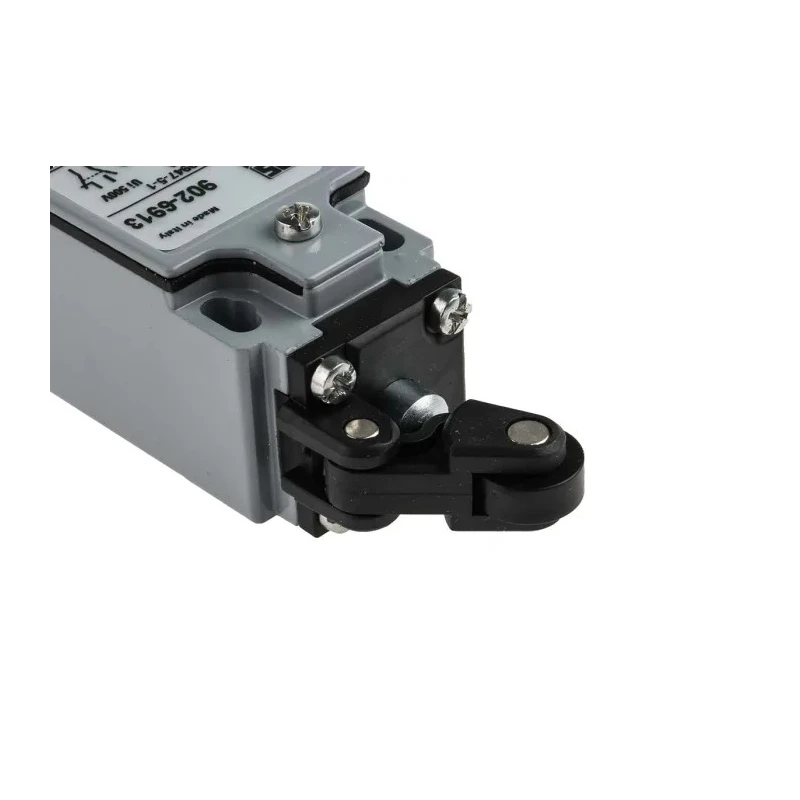

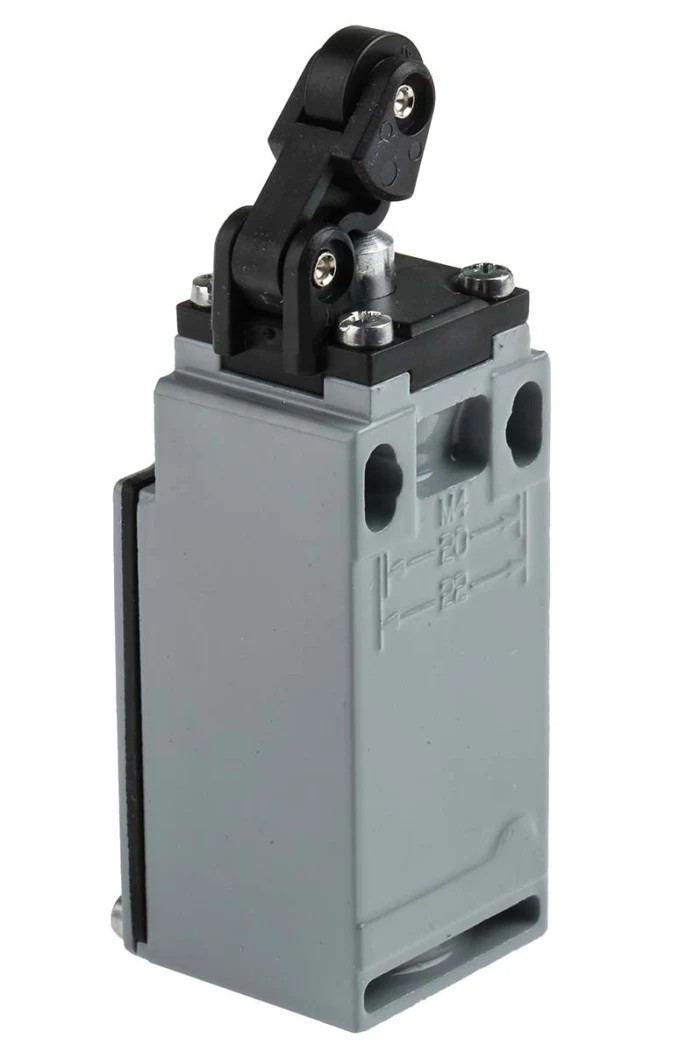

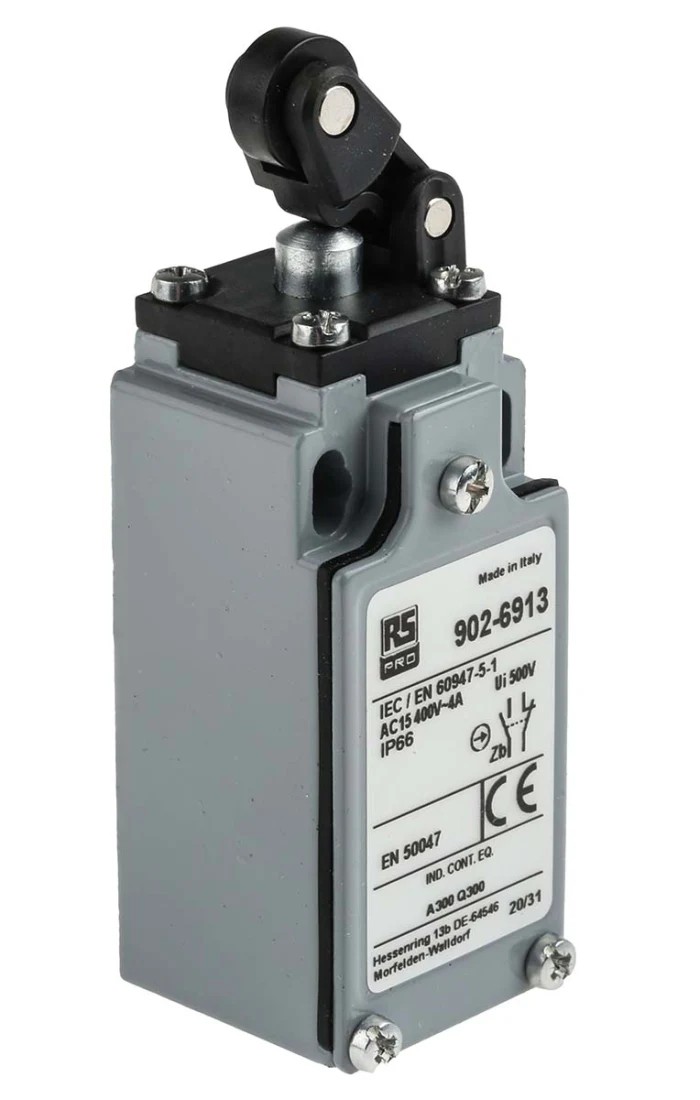

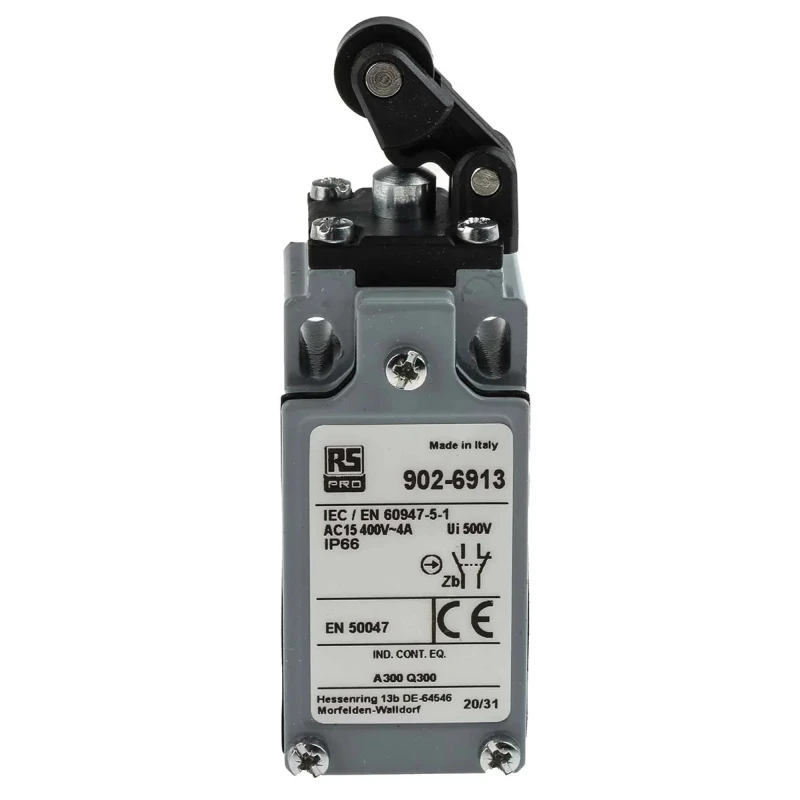

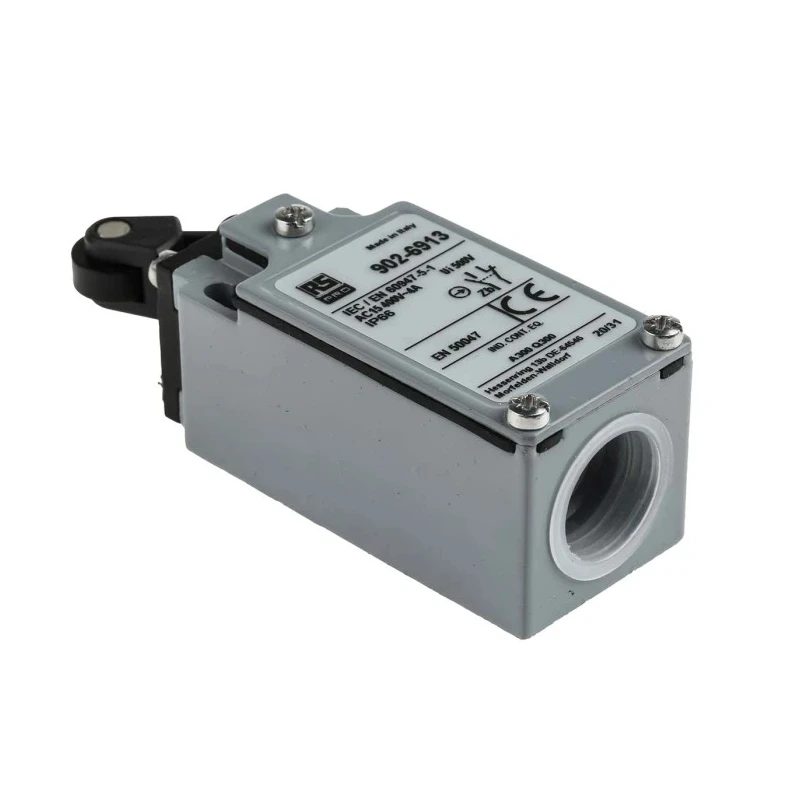

RS PRO Roller Lever Limit Switch 1 NO/1 NC Snap Action Zinc Alloy Housing IP66 400V AC 10A IP66

RS PRO IP66 Roller Lever Limit Switch model IP66 is a snap-action limit switch featuring a roller lever actuator and zinc alloy housing, designed for industrial automation and electrical control applications. It is capable of handling switching currents up to 10 amperes at 400 volts AC, and 250 volts DC, making it suitable for controlling various electrical circuits where precise actuation is needed.

The robust zinc alloy housing provides strong corrosion resistance and protects the internal components from harsh environments, while the IP66 ingress protection rating ensures complete protection from dust and resistance against powerful water jets and temporary immersion.

This limit switch includes one normally open (NO) and one normally closed (NC) contact configuration with snap-action contact type, offering reliable and quick switching to maintain system safety and functionality. It is equipped with cable terminals for secure electrical connections.

The device is engineered for a long operational life, with a mechanical endurance rated at 15 million operations, supporting extensive use in industrial settings. The operating temperature range extends from -25 degrees Celsius to +70 degrees Celsius, enabling dependable performance in varied climatic conditions.

Dimensions are compact, with the switch measuring 30.3 mm in length, 94 mm in width, and 32.5 mm depth, allowing it to fit in tight installation spaces. It supports vertical mounting orientation and requires an actuation force of 7 newtons for activation. The conduit entry is sized M20 x 1.5 for flexible installation options.

The roller lever actuator enables precise mechanical switching action. The durable zinc alloy housing offers excellent corrosion resistance and mechanical strength. Rated IP66 for robust protection against dust ingress and temporary water immersion.

Operates safely with maximum AC voltage of 400V and DC voltage of 250V, with a current rating of 10A. Suitable for harsh industrial environments with operating temperature range from -25°C to +70°C. Mechanical life expectancy of 15 million operations ensures long-term reliability.

Vertical mounting orientation with an operating force of 7N for actuation sensitivity. Designed with cable terminal connections and compliant to CSA, EN, IEC, IMQ, RoHS, and UL standards. Compact dimensions of 30.3 mm length, 94 mm width, and 32.5 mm depth for versatile installations.

This RS PRO Limit Switch is ideal for industrial, manufacturing, automation, electrical control, and other commercial applications requiring durable, precise actuation with protection against environmental challenges. Explore the full range of electrical switching devices suitable for diverse automation and control environments at EnvMart.
