ACE Shock Absorber, 87.7 mm Body Length, 114.7 mm Overall Length, 11.9 mm Stroke Length, M14 x 1.5 Thread Size SC190EUM-3

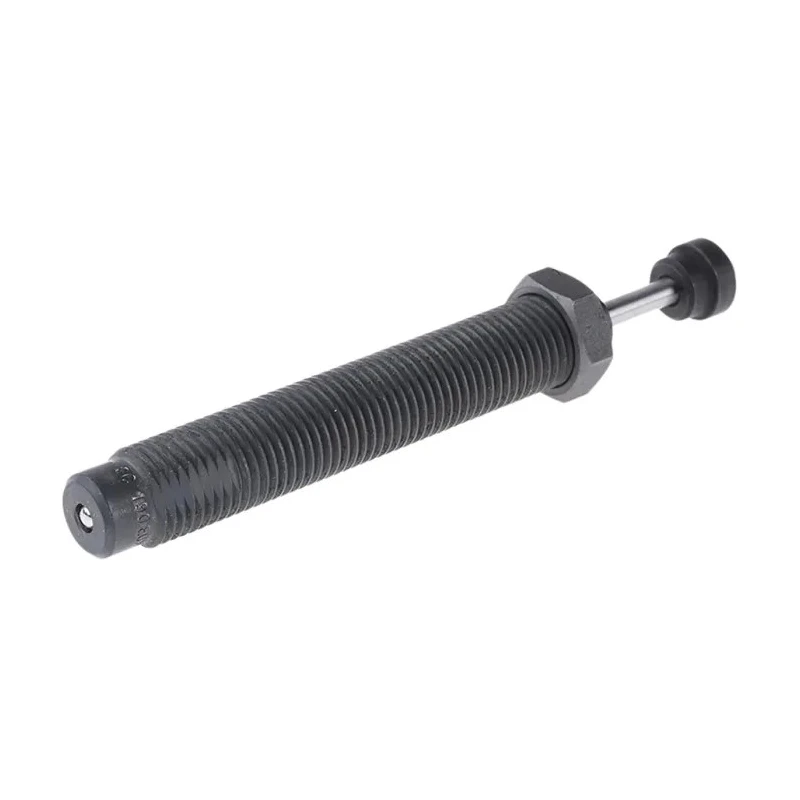

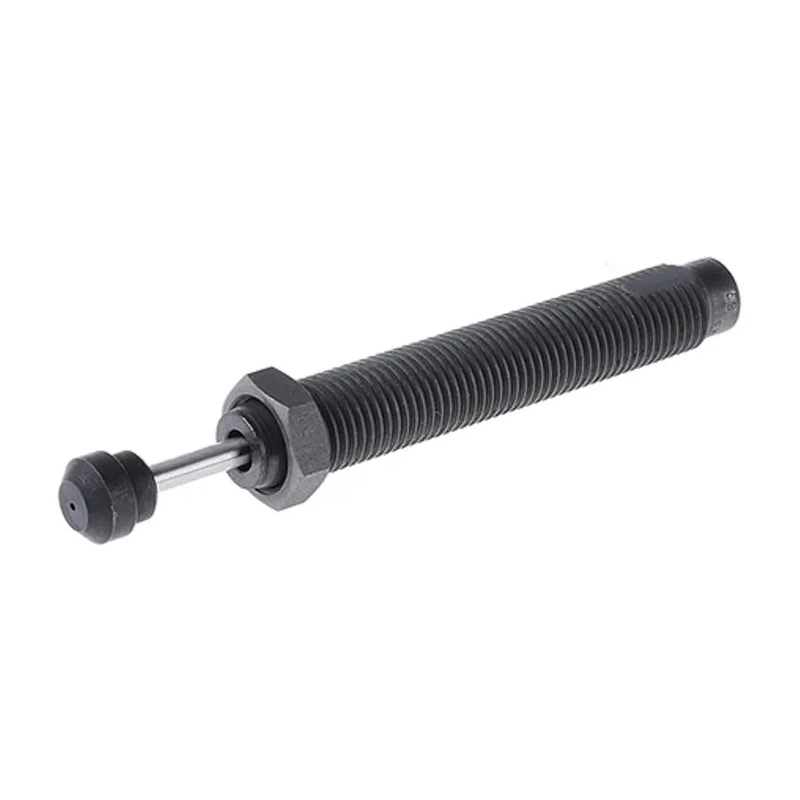

ACE SC190EUM-3 Shock Absorber features a body length of 87.7 mm, overall length of 114.7 mm, and a stroke length of 11.9 mm, designed with an M14 x 1.5 UNF thread standard. This steel-bodied shock absorber is coated with Weartec - Plus finish, ensuring resistance in harsh environments. It is equipped with a hardened stainless steel piston rod, locknut, and a hardened steel rod end button with noise suppression insert for quiet and reliable operation.

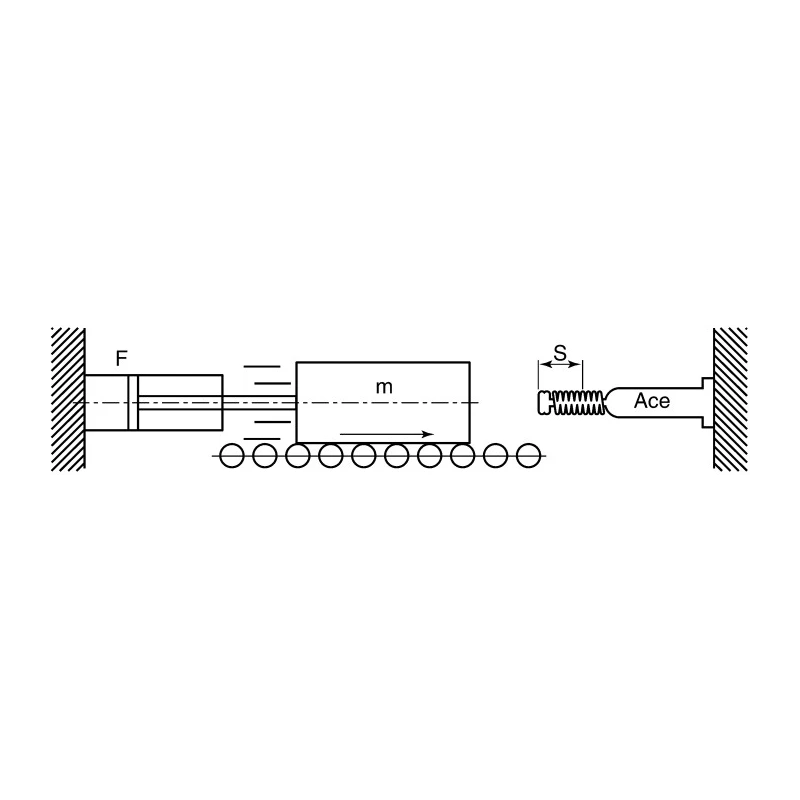

The self compensating mechanism of the SC190EUM-3 model provides soft contact dampening, making it ideal for applications demanding low initial impact reaction forces. It handles effective weights ranging broadly from about 1.4 kg up to 2088 kg, effectively absorbing shocks in pneumatic cylinders and actuators.

Operating efficiently over a temperature range of 0°C to +66°C, it supports impact velocities from 0.15 m/s to 3.7 m/s, with a maximum energy capacity of 34000 Nm per hour and 25 Nm per cycle. The maximum return force is 9 N, ensuring controlled motion after impact.

The design allows interchangeability with MA series units providing adjustable range options, expanding its suitability across various industrial automation sectors such as manufacturing, fluid power systems, HVAC, and pneumatic actuation.

Applications include industrial automation, pneumatic actuation systems, manufacturing equipment shock absorption, and fluid power tool damping. The robust construction and performance parameters make it a reliable component in high-impact operational environments.

Self compensating soft contact mechanism reduces impact stress effectively. Weartec - Plus coated steel body ensures durability in harsh conditions. Hardened stainless steel piston rod and noise suppression rod end button.

Wide operational temperature and impact velocity ranges. Interchangeable with MA series with adjustable stroke range. Maximum energy capacity per hour 34000 Nm and per cycle 25 Nm. Maximum return force 9 N supports steady operational rebound.
