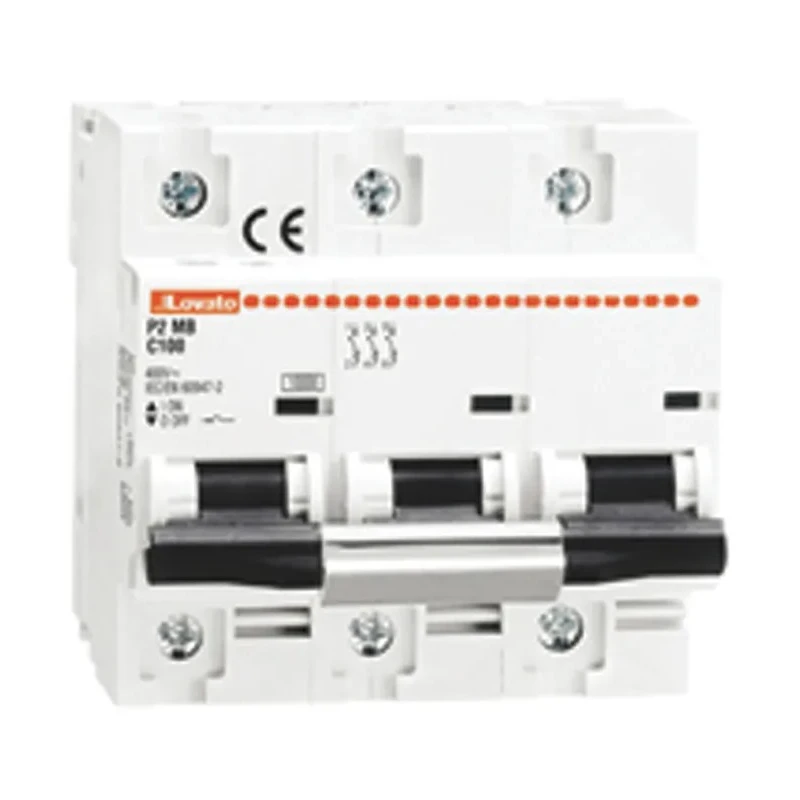

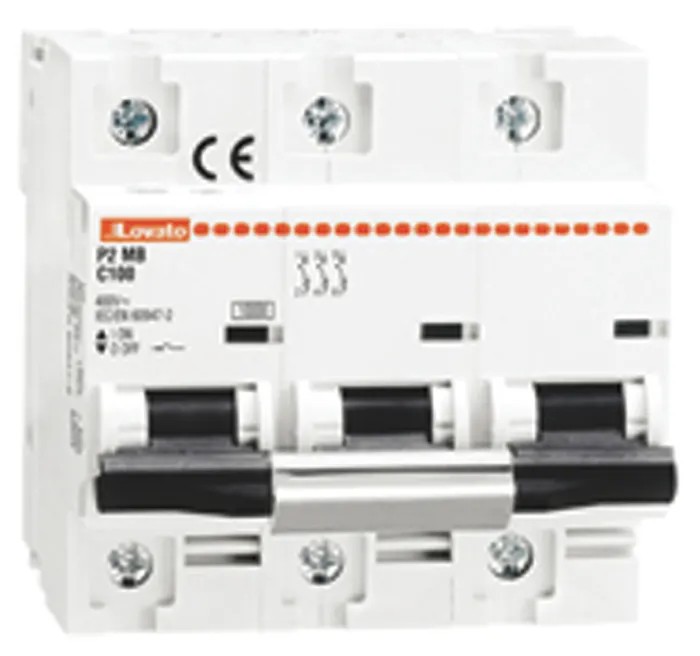

Lovato Electric Modulo P2MB Miniature Circuit Breaker, 3-Pole, 80A, Type C, 400V AC, 60V DC, 10 kA Breaking

Lovato Electric P2MB3PC080 Miniature Circuit Breaker is engineered to provide efficient and reliable circuit protection for industrial and commercial electrical installations. Featuring a 3-pole configuration and rated for 80 amps, this device is suitable for use in both AC (400V) and DC (60V) electrical systems.

Its Type C tripping characteristic allows it to handle moderate inrush currents typical in lighting and motor circuits without nuisance tripping, making it ideal for a broad range of applications including industrial automation, control panels, machinery, and electrical distribution.

The breaker supports DIN rail mounting and employs screw terminals for secure and fast electrical connections. With a breaking capacity of 10 kA, it effectively interrupts fault currents, protecting wiring and connected equipment from damage.

Manufactured adhering to international standards such as CSA, UL 1077, IEC/EN 60947-2, and EAC approvals, the P2MB series offers compliance and peace of mind for safety and performance. Its thermal magnetic tripping mechanism combines rapid fault detection with thermal overload protection, ensuring long service life and reliability in demanding environments.

The device features compact dimensions (width 81 mm, height 85 mm, depth 80 mm) and an IP20 rating, protecting against accidental contact and foreign objects while allowing ventilation for electrical components.

Applications span across industrial manufacturing, electrical automation, HVAC systems, commercial buildings, and process control where reliable circuit interruption and protection against short circuits and overloads are critical.

Designed for DIN rail mounting with screw terminal type for secure connections. Provides a breaking capacity of 10 kA ensuring high protection against faults. Complies with international standards including IEC/EN/BS 60898-1 and UL 1077.

Equipped with a thermal magnetic tripping mechanism for reliable operation. Compact dimensions with width 81mm, height 85mm, and depth 80mm for easy installation. IP20 rated for protection against finger contact and solid objects.

Instantaneous break time to quickly disconnect circuits during faults. Manufactured in Italy ensuring quality and reliability. For more Miniature Circuit Breakers and industrial electrical safety products, browse our Electronics & Electricals category at EnvMart to find suitable components for your needs.
