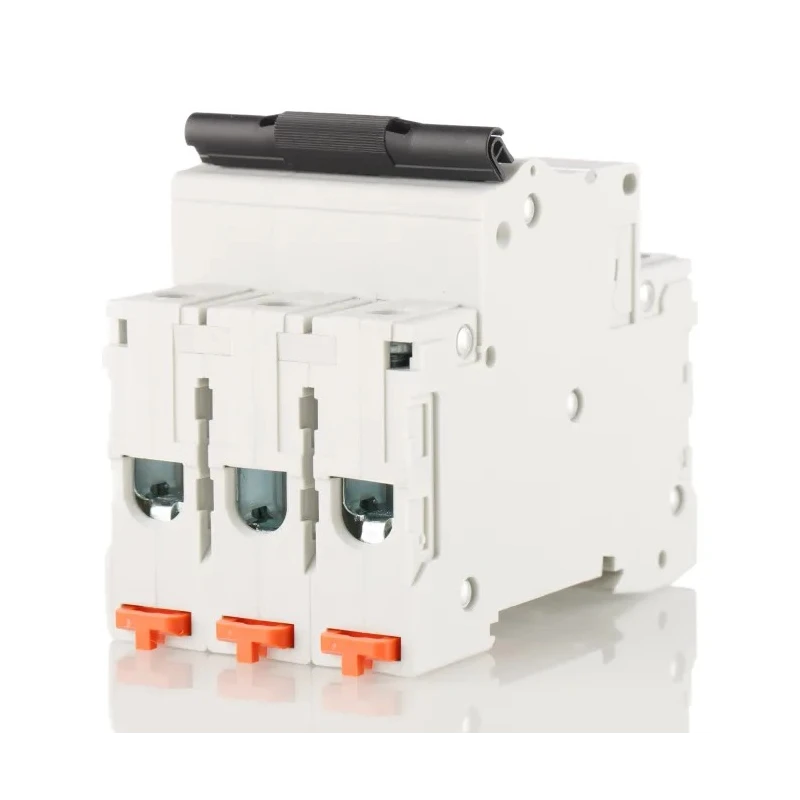

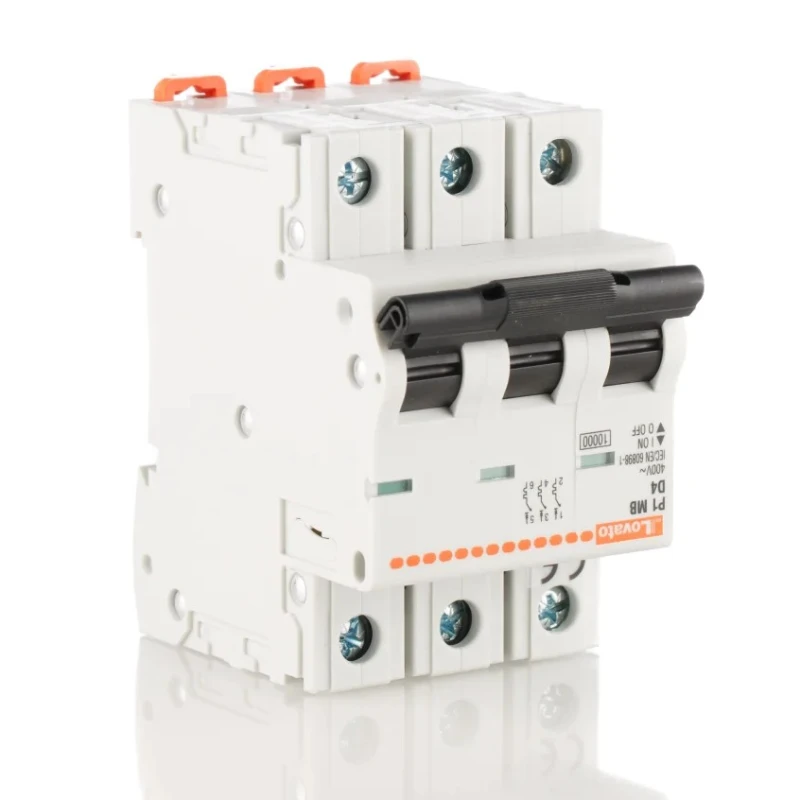

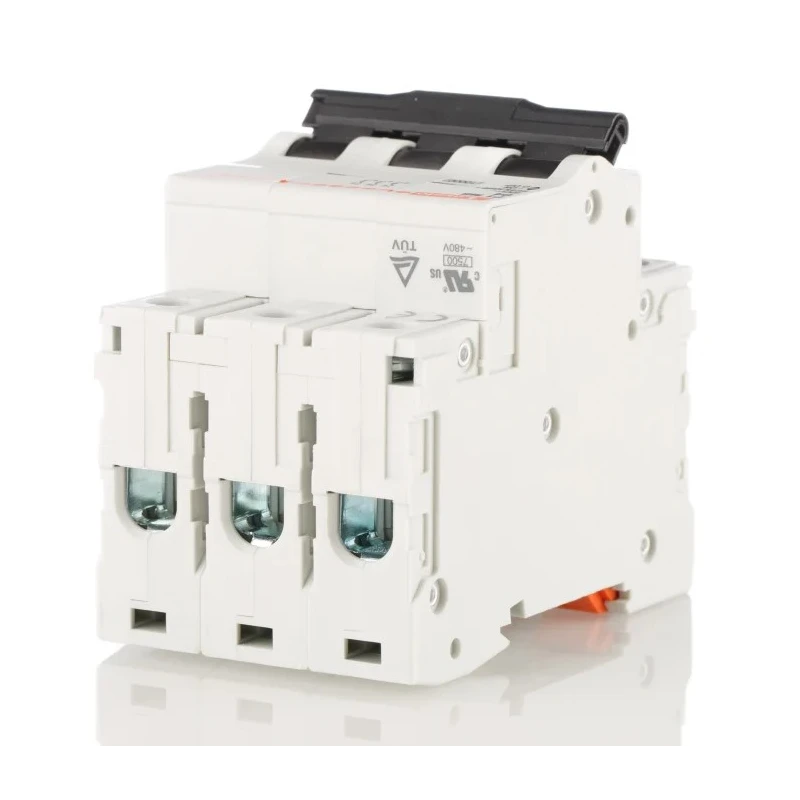

Lovato Electric Modulo Miniature Circuit Breaker, 3-Pole, 4A, Type D, 400V AC, 10 kA Breaking Capacity P1MB3PD04
Specifications
| Country of Origin | Italy |
|---|---|
| Range | Modulo |
| Brand | Lovato Electric |
| Height | 86.5mm |
| Model | P1MB3PD04 |
| Depth | 80mm |
| IP Rating | IP20 |
| Width | 54mm |
| Mount Type | DIN Rail |
| Current Rating | 4A |
| Series | Modulo |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type D |
| Tripping Mechanism | Thermal Magnetic |
| Break Time | Instantaneous |
Key Features
- Type D tripping characteristics ensure high inrush current tolerance for industrial applications.
- Rated for 400V AC systems with 10 kA breaking capacity for safe circuit interruption.
- Compact dimensions facilitate easy DIN rail mounting in constrained electrical panels.
- Thermal magnetic mechanism provides precise instantaneous tripping during faults.
- Complies with IEC and BS EN standards for electrical safety and performance.
- Ideal for protecting industrial machinery, commercial installations, and domestic electrical distribution boards.
- IP20 rated for protection against solid foreign objects and suitable for indoor environments.
- Made in Italy ensuring quality manufacturing and durability.
Product Description
Lovato Electric P1MB3PD04 Miniature Circuit Breaker is a 3-pole device designed for effective circuit protection in industrial, commercial, and residential electrical systems. Rated at 4A and 400V AC, this Type D breaker provides high tolerance to temporary overloads caused by high inrush currents typically found in motors and transformers.
The device features a 10 kA breaking capacity enabling reliable interruption of fault currents and minimizing the risk of damage or fire. Its compact size, measuring 54mm width, 86.5mm height, and 80mm depth, supports easy installation on standard DIN rails, facilitating quick upgrades and replacements in electrical panels.
The thermal magnetic tripping mechanism ensures prompt and accurate fault response, while the Type D characteristic accommodates heavy load starts without nuisance trips. Certified under IEC, BS EN 60898-1, UL 1077, CSA, and other international norms, this breaker combines safety and compliance for diverse electrical environments.
Primary applications include protection of industrial automation equipment, commercial electrical distribution, and household electrical panels. The IP20 rating confirms suitability for indoor use with protection against solid foreign objects but without water resistance.
This modular breaker is part of the Lovato Modulo range, designed to meet stringent performance and reliability standards, and is manufactured in Italy under strict quality controls.
Type D tripping characteristic supports high inrush currents. 10 kA breaking capacity ensures robust fault protection. Compact DIN rail mount design for easy integration. Thermal magnetic tripping mechanism for accurate fault response.
Complies with international safety standards including IEC and UL. Used in industrial, commercial, and residential electrical systems. IP20 protection suitable for indoor environments. Manufactured in Italy for quality assurance.
Explore more Lovato Electric products and circuit protection devices at EnvMart to enhance your electrical safeguards efficiently.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a breaking capacity of 10 kA, which allows for reliable interruption of fault currents.
This model is rated for 400V AC systems, making it suitable for various electrical applications.
The device features 3 poles, providing effective circuit protection in multi-phase systems.
It measures 54mm in width, 86.5mm in height, and 80mm in depth, facilitating easy installation in electrical panels.
It utilizes a thermal magnetic tripping mechanism for accurate and instantaneous fault response.
The circuit breaker has an IP20 rating, indicating it is suitable for indoor use and provides protection against solid foreign objects.
It is designed for DIN rail mounting, allowing for easy integration into standard electrical panels.
It features Type D tripping characteristics, which ensure high tolerance for inrush currents typically found in industrial applications.
This product is manufactured in Italy, ensuring adherence to quality standards.
It is primarily used for protecting industrial automation equipment, commercial electrical distribution, and household electrical panels.
The current rating for this model is 4A, suitable for various electrical loads.
Yes, it complies with international safety standards including IEC, BS EN 60898-1, UL 1077, and CSA.
