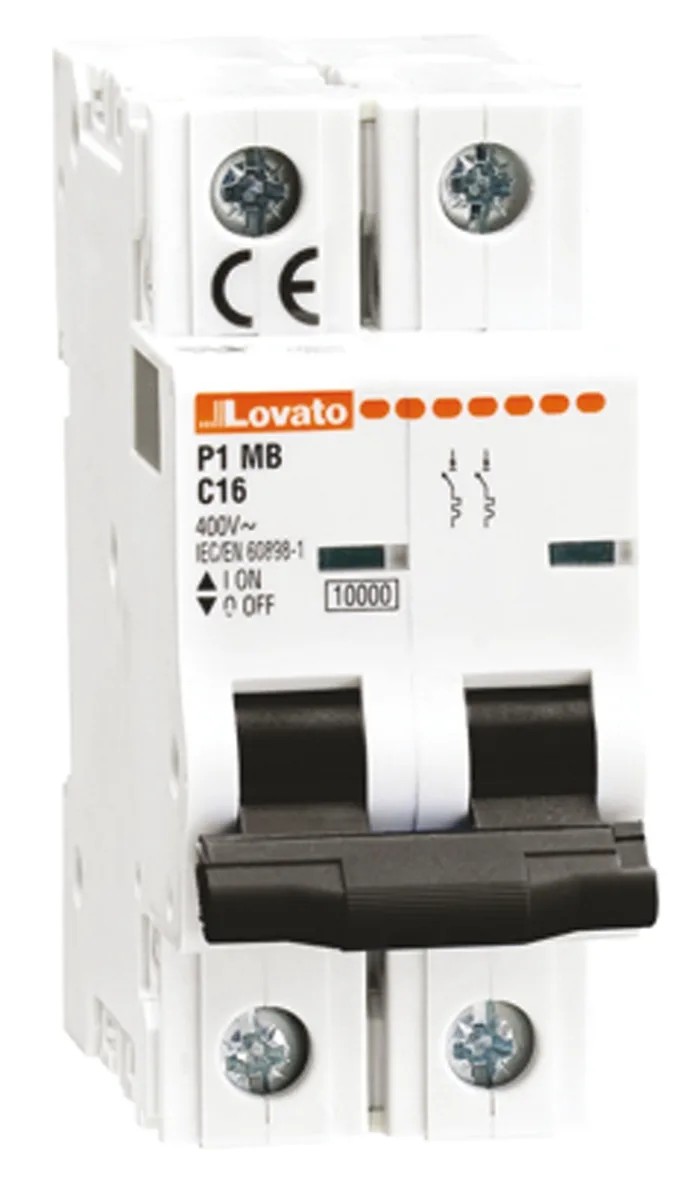

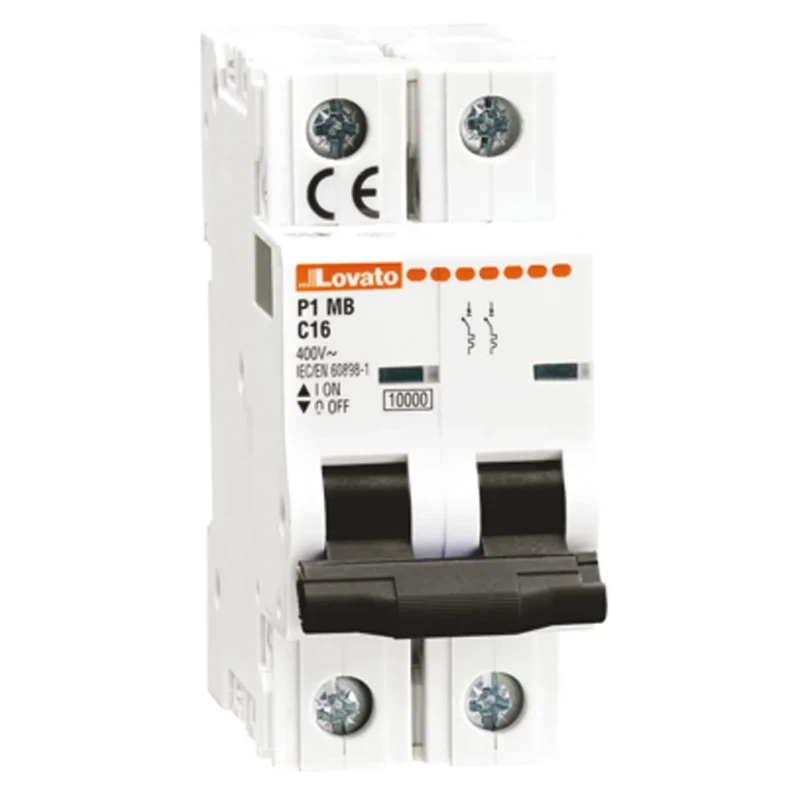

Lovato Electric Modulo 2-Pole Miniature Circuit Breaker 16A Type B 400V AC, 80V DC, 10 kA Breaking Capacity P1MB

Lovato Electric P1MB Miniature Circuit Breaker is a compact and reliable 2-pole electrical protection device designed for use in both residential and commercial electrical applications. Operating at a rated current of 16 amperes, it supports AC voltages up to 400 volts and DC voltages up to 80 volts, making it versatile for a variety of electrical systems and environments.

This MCB features Type B tripping characteristics, providing sensitive protection against overloads while tolerating moderate inrush currents, ideal for general-purpose circuits. With a notable breaking capacity of 10 kiloamperes, it efficiently interrupts fault currents to safeguard wiring and connected equipment.

Constructed to international safety and performance standards including IEC/EN/BS 60898-1 and IEC/EN/BS 60947-2, this device ensures dependable operation. The thermal magnetic tripping mechanism allows for instant fault detection and disconnection. Designed for easy installation, it fits securely onto a standard 35mm DIN rail, with screw terminals tightened using torque between 1.8 Nm and 2 Nm for safe connections.

With compact dimensions measuring 36 mm in width, 86.5 mm in height, and 80 mm in depth, and an IP20 rating, it is suitable for mounting inside panels and distribution boards. The unit is engineered to operate reliably across wide temperature ranges from -40°C to +70°C and altitudes up to 2000 meters, making it suitable for diverse geographic locations.

Typical applications include residential circuit protection, industrial automation system safety, distribution boards, control panels, and machine control systems needing dependable circuit interruption with long service life. It offers up to 10,000 electrical life cycles and a mechanical life expectancy up to 20,000 operations, ensuring durable performance and reduced maintenance needs.

Rated for 16A current with 2 poles for dual protection. Type B tripping characteristics for overload sensitivity and moderate inrush tolerance. 10 kA breaking capacity for high fault current interruption. DIN rail mount with screw terminal type for secure electrical connection.

Meets key international standards for electrical protection devices. Compact form factor optimized for panel and board installation. Operational temperature range of -40°C to +70°C for versatile environments. Designed for altitudes up to 2000 meters ensuring wide applicability.

Thermal magnetic trip mechanism for instant and reliable disconnection. IP20 rated for protection against ingress of solid foreign objects. Explore our extensive range of circuit protection devices at EnvMart for advanced electrical safety solutions.
