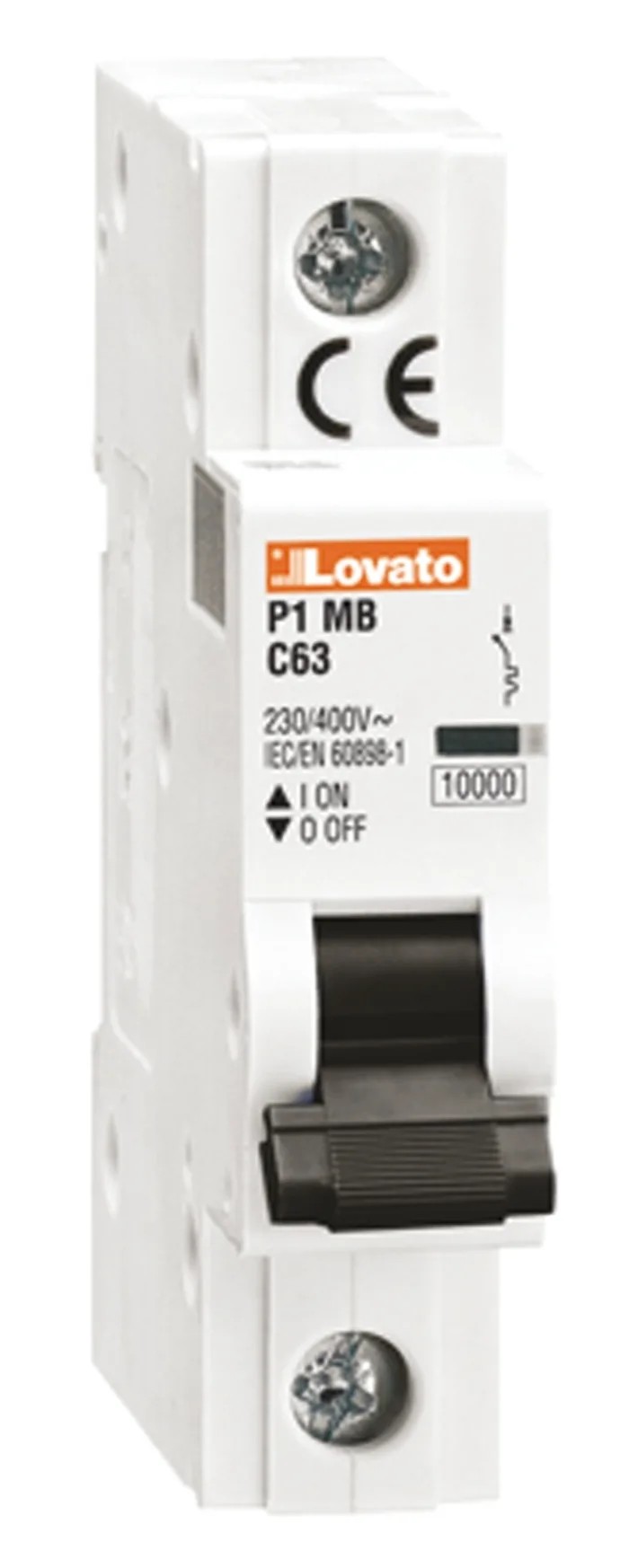

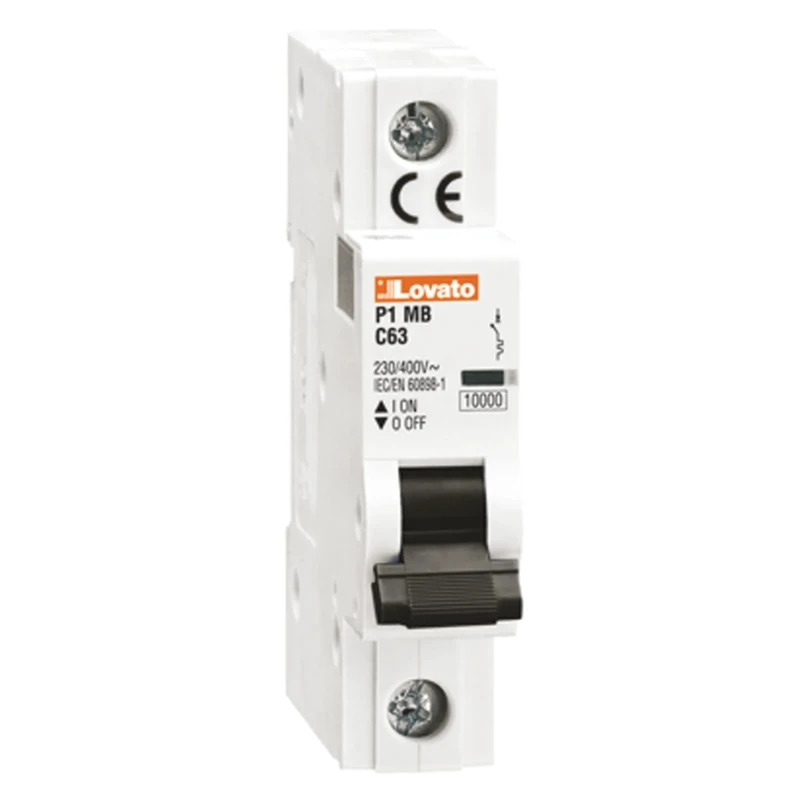

Lovato Electric Modulo P1MB Miniature Circuit Breaker, 1-Pole, 63A, Type D, 230V ac, 60V dc, 10 kA Breaking Capacity P1MB

Lovato Electric P1MB Miniature Circuit Breaker (MCB) is engineered to provide precise and reliable circuit protection for both AC and DC electrical systems. This 1-pole breaker supports a current rating of 63A, suitable for a wide range of industrial and commercial electrical installations. Its Type D tripping characteristic is designed to handle higher inrush currents commonly found in motor loads and inductive equipment, protecting circuits from overcurrent situations efficiently.

The device operates at a rated AC voltage of 230V and DC voltage of 60V, allowing flexibility in application across different system types. A breaking capacity of 10 kA ensures robust short circuit withstand capabilities, essential for maintaining system safety under fault conditions. The MCB is built for DIN rail mounting, facilitating easy and standardized installation in electrical panels with screw terminals that ensure secure connectivity.

With compact and ergonomic dimensions (18mm width, 86.5mm height, and 80mm depth), the P1MB MCB optimizes panel space. Its thermal magnetic tripping mechanism delivers instantaneous breaking action when needed, protecting both equipment and personnel.

The rated insulation voltage of 440V and rated impulse withstand voltage of 4 kV reflect high electrical durability, allowing the device to operate reliably in demanding environments. The IP20 enclosure rating offers protection against solid foreign objects while maintaining accessibility for wiring and maintenance.

Lovato Electric ensures compliance with multiple international standards such as CSA, cURus, EAC, IEC/EN/BS 60898-1, IEC/EN/BS 60947-2, and UL 1077, affirming the product’s quality and safety credentials. Manufactured in Italy, the P1MB breaker combines advanced engineering with rigorous quality control.

This MCB features Type D tripping characteristics suitable for industrial applications. Operates at 230V AC and 60V DC voltages. Breaking capacity of 10 kA ensures safety from short circuits. Thermal magnetic instantaneous tripping mechanism for effective protection.

Compact size fits standard DIN rails with screw terminal connections. Meets international standards including IEC and UL certifications. Rated insulation voltage of 440V and impulse withstand voltage of 4 kV ensure durability.

IP20 rated protection against solid ingress. Manufactured in Italy for high-quality assurance. Suitable for industrial, commercial, and electrical automation applications.

Choose the Lovato Electric Modulo P1MB Miniature Circuit Breaker for reliable protection and compliance with international electrical safety standards. Explore the Electronics & Electricals category on EnvMart for more premium circuit protection solutions.
