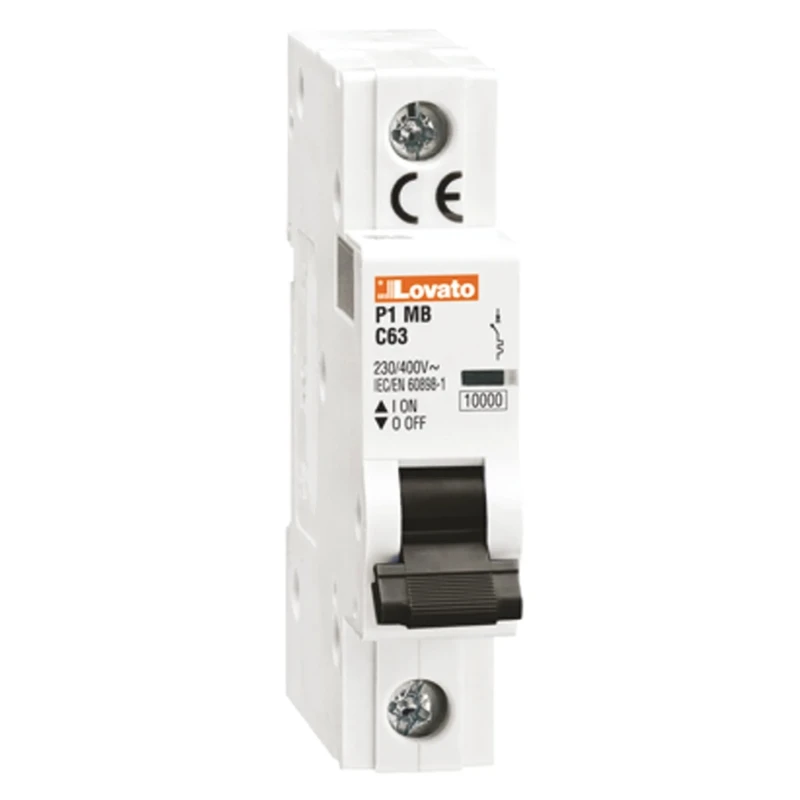

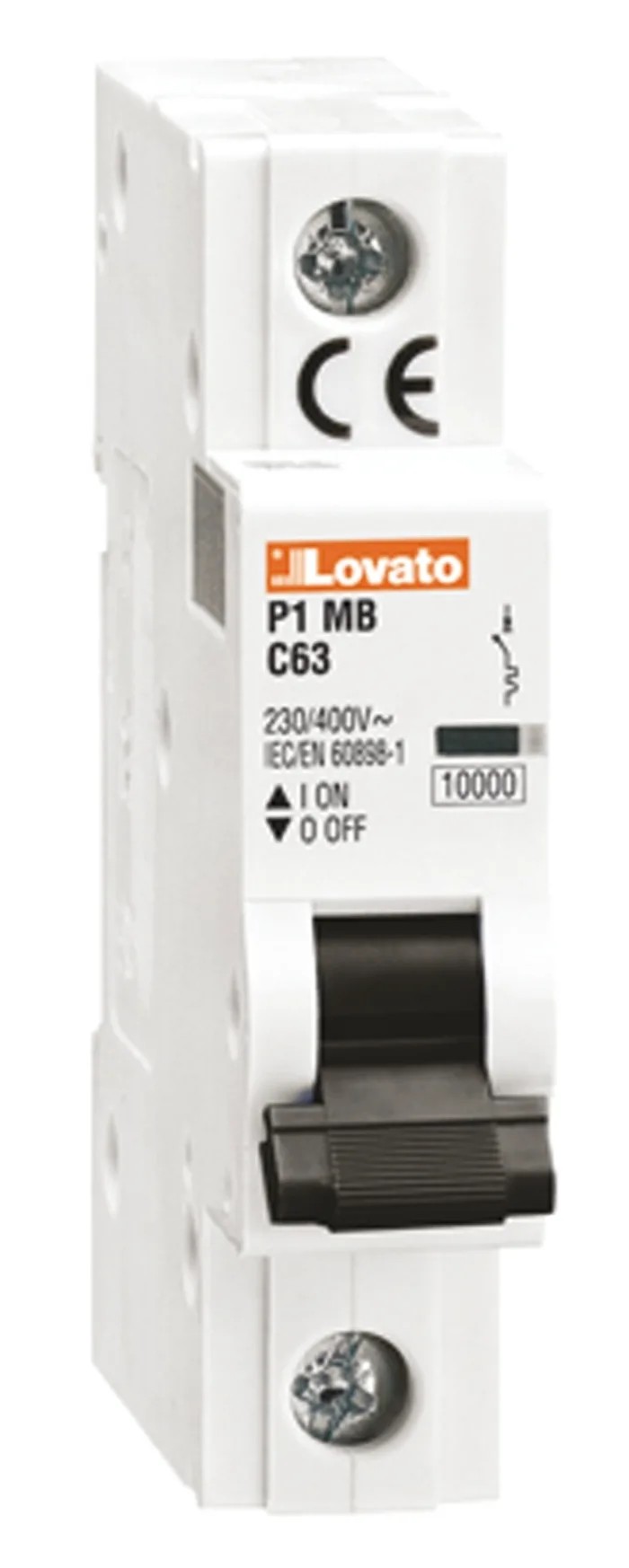

Lovato Electric Modulo P1MB Miniature Circuit Breaker, 1-Pole, 40A, Type C, 230V AC, 60V DC, 10 kA Breaking Capacity P1MB

Lovato Electric P1MB Miniature Circuit Breaker is a high-performance 1-pole device rated at 40A with Type C tripping characteristics designed for precise circuit protection in residential, commercial, and industrial electrical installations.

The breaker supports a standard AC voltage of 230V and a DC voltage rating of 60V, making it suitable for a variety of alternating and direct current circuits. It is engineered to interrupt fault currents up to 10 kA, providing robust protection against short circuits and overloads.

This model features a thermal magnetic tripping mechanism enabling both thermal overload and magnetic instantaneous trip responses, enhancing safety and reliability. The device is designed for DIN rail mounting and features screw terminals ensuring easy and secure connectivity within electrical panels.

Compactly built to dimensions of 86.5mm height, 80mm depth, and 18mm width, it fits efficiently into tight spaces. Its IP20 rating protects against solid objects greater than 12mm in size but not against liquids, making it ideal for indoor electrical cabinet use.

Lovato Electric ensures quality compliance with international standards including UL 1077, CSA, cURus, EAC, IEC/EN/BS 60898-1, and IEC/EN/BS 60947-2. The rated insulation voltage is 440V with rated impulse withstand voltage of 4 kV, emphasizing durability and performance under electrical stress.

This device’s instantaneous break time enables prompt circuit disconnection during fault conditions, enhancing equipment and personnel safety. Typical industrial uses include electrical distribution, automation control panels, and protection systems in commercial and industrial facilities.

This device supports 230V AC and 60V DC rated voltages for versatile use. The breaking capacity is rated at 10 kA ensuring high fault current interruption capability. Designed for DIN rail mounting with screw type terminals for secure installation.

Compact dimensions include 86.5mm height, 80mm depth, and 18mm width for easy panel integration. Rated insulation voltage is 440V with a rated impulse withstand voltage of 4kV. Tripping characteristics correspond to Type C for moderate inrush current tolerance.

Complies with an extensive range of standards including UL 1077, CSA, IEC/EN/BS certifications. IP20 protection rating suitable for indoor electrical environments. Instantaneous break time enhances electrical safety performance.
