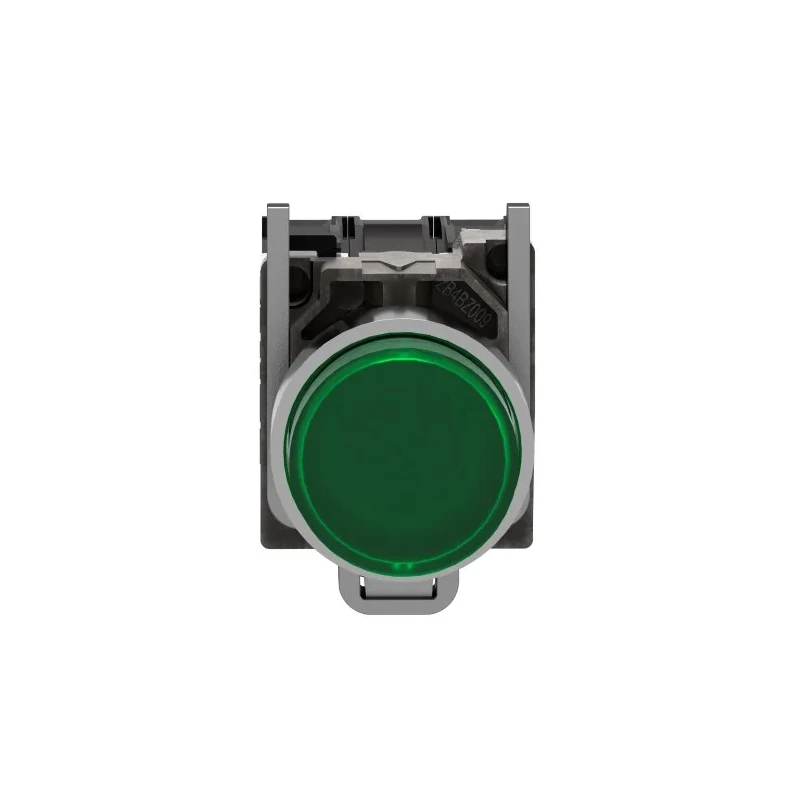

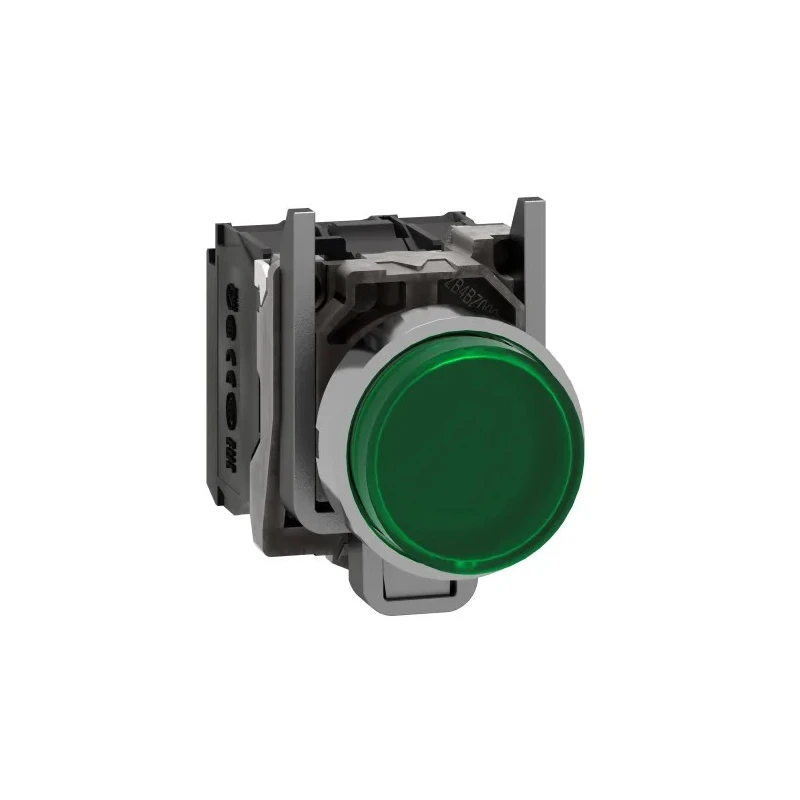

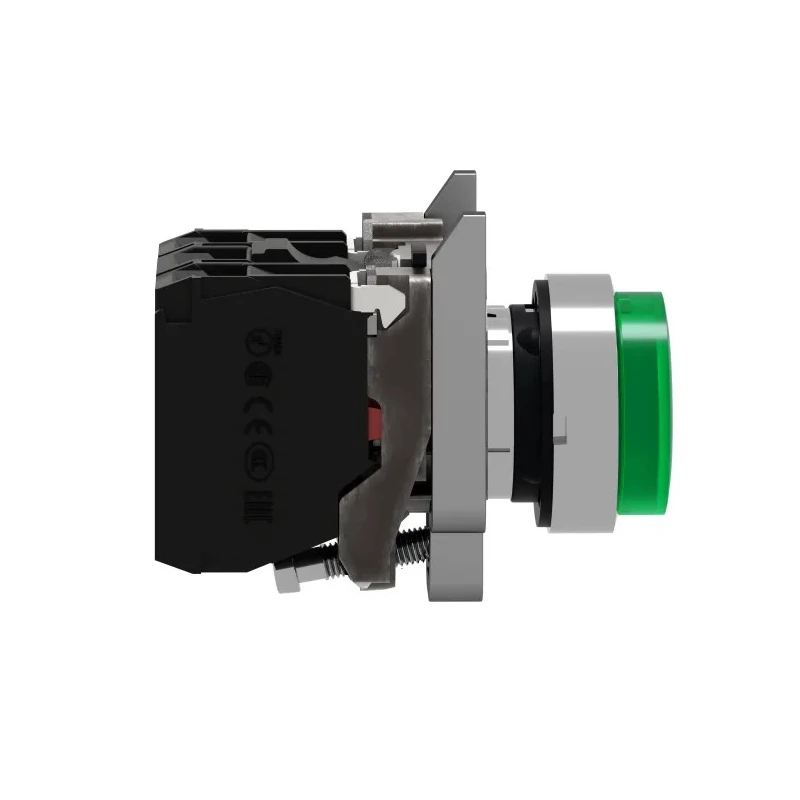

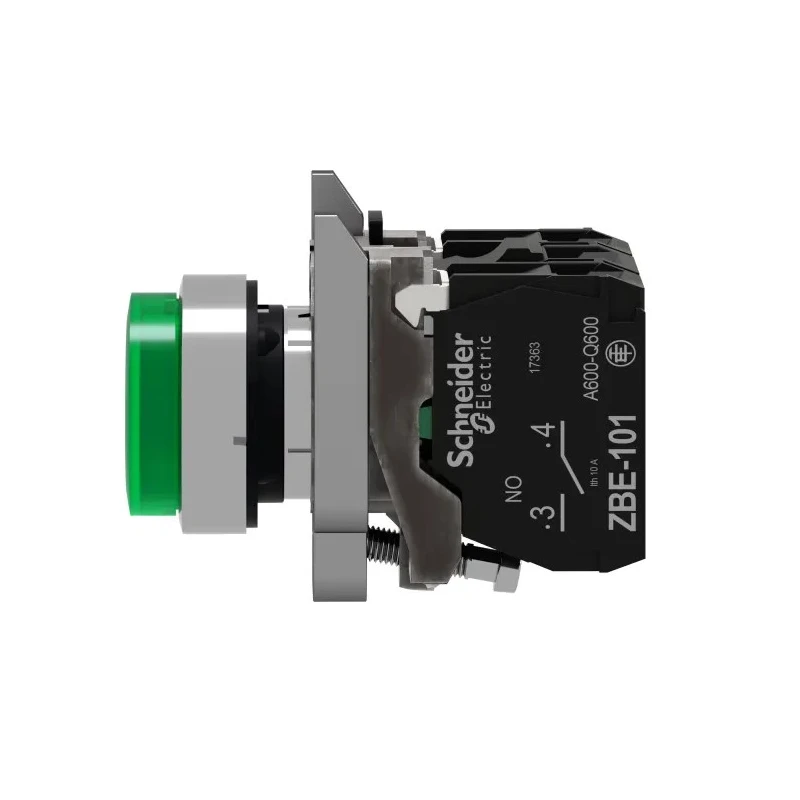

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch Spring Return Panel Mount 22 mm Cutout SPDT XB4BW13B5

Schneider Electric XB4BW13B5 Harmony XB4 Series illuminated push button switch is designed for ergonomic machine control applications requiring a reliable visual feedback and robust mechanical construction. The green illuminated actuator provides high visibility, powered by a universal 24V AC/DC LED supply. It features a spring return mechanism that ensures the push button returns to its default position after actuation.

This switch is designed for easy installation into a standard 22 mm diameter panel cut-out and is secured with a chromium plated metal bezel enhancing its mechanical strength and corrosion resistance. The SPDT (1 NO/1 NC) contact configuration facilitates versatile switching operations, capable of handling contact currents up to 10A and AC voltages up to 600V.

Its high ingress protection rating (IP66/67/69/69K) makes it suitable for harsh industrial environments involving dust, water jets, and vibration exposure. Operating temperature range from -40°C up to 70°C ensures functionality in extreme conditions. The compact size (101 mm length x 30 mm width x 47 mm height) helps in fitting into confined spaces within control panels.

The product meets several international standards including EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14, ensuring compliance with industry safety and performance requirements.

This illuminated push button is ideal for industrial automation, manufacturing plants, HVAC systems, water treatment controls, and other control panel applications requiring highly visible operator interfaces. Being a 'Better World Product' that is repairable by end users, it supports sustainable and efficient maintenance practices.

The push button features a green LED actuator color for clear visual indication. Designed for 22 mm panel cutouts with a chromium plated metal bezel for durability. It operates at 24V AC/DC with a universal bright LED illumination.

The contact configuration is single-pole double-throw (SPDT) with 1 normally open and 1 normally closed contact. The switch operation is spring return type, ensuring momentary action. Rated for contact AC voltage up to 600V and contact current of 10A.

Compatible with industrial environments due to high ingress protection rating of IP66, IP67, IP69, and IP69K. Operates reliably in temperatures ranging from -40°C to 70°C. Compact dimensions of 101 mm length, 30 mm width, and 47 mm height facilitate easy integration into control panels.

Complies with multiple international standards including EN/IEC 60947 series and UL 508 for safety and performance. Explore more solutions in electrical and automation switches available at EnvMart.
