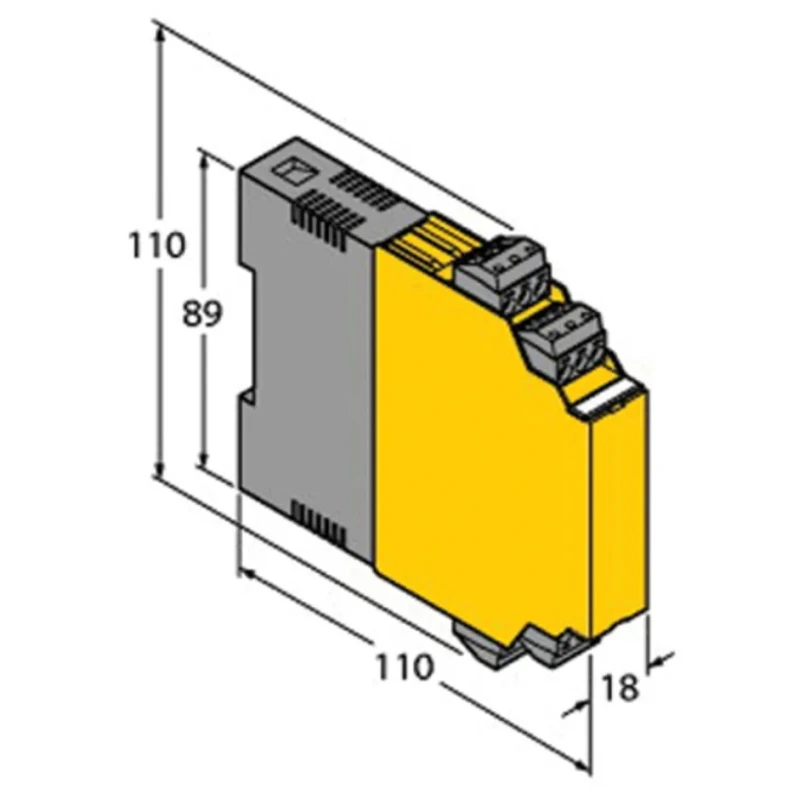

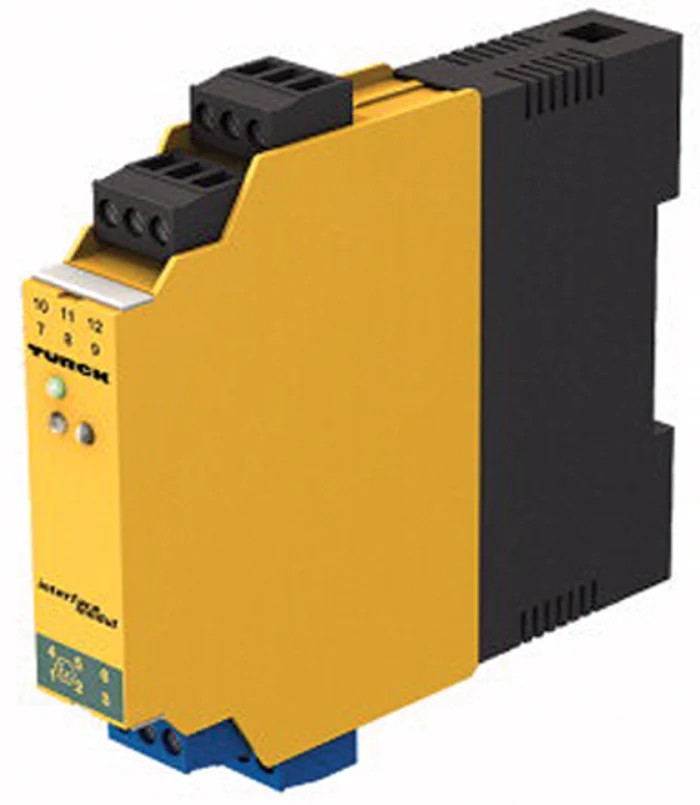

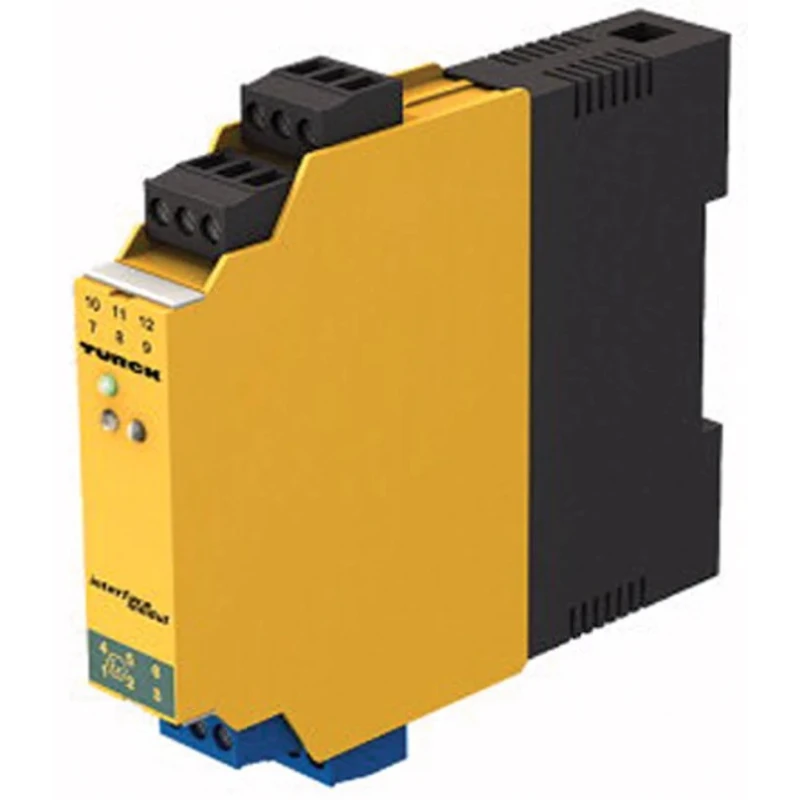

Turck Galvanic Barrier Analogue Signal Conditioner IECEx/ATEX Certified DIN Rail Mount IM35-11EX-HI/24VDC
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Turck |
| Model | IM35-11EX-HI/24VDC |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | IM35-11EX-HI/24VDC |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Supply Voltage | 24V dc |
| Signal Type | Analogue |
| Hazardous Area Certification | IECEx/ATEX |
| Standards/Approvals | UL 94 V-0, SIL2, TÜV 06 ATEX 553057 X, TÜV 03 ATEX 2311 |
| Barrier Type | Galvanic Barrier |
| Safety Current Resistance | 528Ω |
| Maximum Safety Current | 60mA |
| Maximum Safety Voltage | 250V |
| Turck Galvanic Barrier, IECEx/ATEXBrand | Turck |
Key Features
- Single channel galvanic barrier for secure signal isolation.
- Suitable for DIN rail mounting in industrial environments.
- Supports analogue 4-20mA input and output circuits for precise signal conditioning.
- Certified to IECEx and ATEX standards for hazardous area installations.
- Operates safely with supply voltage of 24V DC.
- Equipped with screw terminal connections allowing easy installation and maintenance.
- IP20 rated enclosure providing protection against solid objects.
- Operates in temperature range from -25°C to +70°C for versatile deployment.
Product Description
Turck IM35-11EX-HI/24VDC galvanic barrier analogue signal conditioner is engineered for professional industrial applications requiring galvanic isolation and safe signal transmission from hazardous environments to non-hazardous areas. Manufactured in Germany, this device provides complete galvanic isolation ensuring an unattenuated output signal critical in maintaining signal integrity and operator safety.
This isolating transducer supports 4-20mA analogue signal input and output with full compatibility for HART communication protocols and both active and passive transmitter configurations. Its DIN rail mounting design facilitates quick and secure installation within control panels.
The product is IECEx and ATEX certified, suitable for installations in Zone 2 hazardous areas, ensuring compliance with strict international safety standards. It features removable screw-termination blocks and a 2mm test box for ease of maintenance and signal testing.
The robust device operates within a temperature range of -25°C to +70°C and offers an IP20 rated protection against solid ingress. Safety current resistance and maximum safety current are rated at 528Ω and 60mA respectively, meeting SIL2 safety integrity levels and UL 94 V-0 standards.
Ideal for automation, electrical signaling, process control, and hazardous area signal conditioning in industrial, manufacturing, and environmental health and safety sectors. Single channel galvanic isolation for signal integrity.
DIN rail mounting for industrial control panels. Full analogue signal support with HART compatibility. IECEx and ATEX certification for hazardous environments. Wide operating temperature range and IP20 housing. Compliant with SIL2, UL 94, TÜV certifications.
