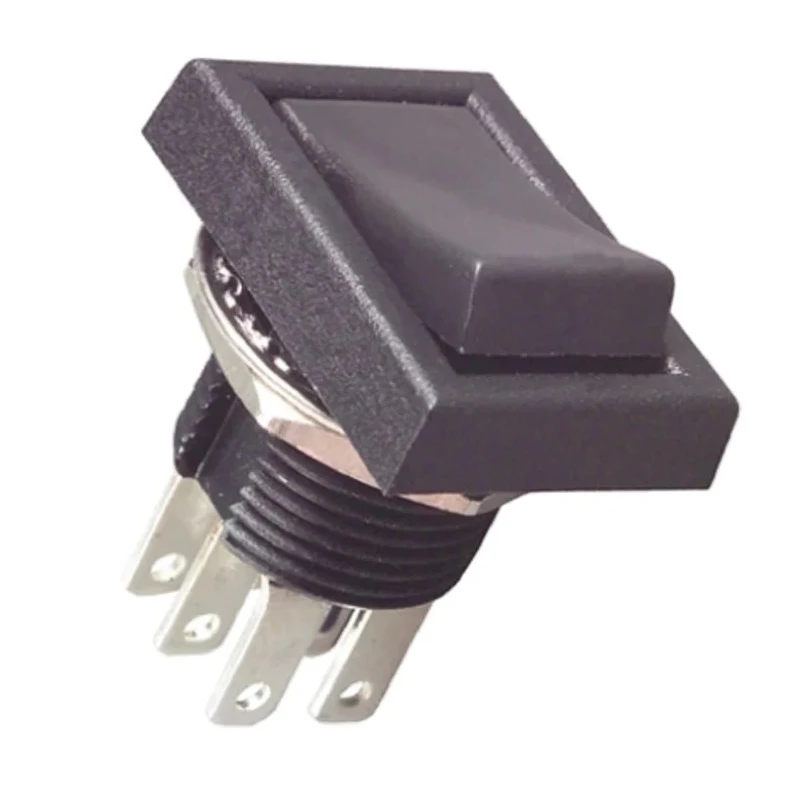

TE Connectivity DPDT On-On On-On Rocker Switch Panel 3A 125V AC 32V DC Black TRD23N10QC04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | TRD23N10QC04 |
| IP Rating | IP55 |
| Mount Type | Panel |
| Housing Material | Polyester |
| Series | TRD |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -45°C |
| Panel Cutout Size | 11.91 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | CSA, CE, UL |
| Switch Operation | On-On |
| Actuator Colour | Black |
| Contact DC Voltage | 32V dc |
| Switch Contact Current | 3A |
| Contact AC Voltage | 125V ac |
Key Features
- Double pole double throw (DPDT) switch configuration allows versatile circuit control.
- Switch operation is On-On On-On providing multiple switching positions.
- Housing made of durable polyester for robust usage.
- Panel cutout size of 11.91 mm enables easy installation.
- Handles 3 amp switch contact current reliably under 125V AC and 32V DC.
- Black actuator color blends with most panel designs.
- Panel mount type with quick connect terminals for secure fitting.
- IP55 rating offers protection against dust and water ingress.
Product Description
TE Connectivity TRD23N10QC04 DPDT On-On On-On Rocker Switch Panel is designed for high reliability in electrical and automation applications. With a robust polyester housing and black polyamide actuator, this panel mount rocker switch supports a 3 amp contact current at 125V AC and 32V DC voltages. The switch offers double pole double throw (DPDT) contact configuration and On-On On-On operation to enable versatile electrical switching solutions.
The cutout size of 11.91 mm allows easy integration into control panels and electrical assemblies, while quick connect terminals ensure fast, secure wiring. Its IP55 rating grants protection against dust ingress and water jets, making it suitable for industrial, commercial, and automation environments.
The operating temperature range from -45°C to 85°C makes this switch reliable in harsh temperature conditions, including outdoor and HVAC use. Certified with CSA, CE, and UL approvals, this TRD series Rocker Switch adheres to recognized safety standards.
The switch case and actuator are made of durable polyamide composite providing long service life with silver or gold contact variants that ensure low contact resistance and excellent electrical performance. The switch features a dielectric strength of 500 V, suitable for demanding electrical switching tasks in manufacturing, laboratory, or automation systems.
DPDT contact configuration for flexible switching. Rated for 3 amp contact current at 125V AC / 32V DC. Polyester housing and polyamide actuator for durability. Panel cutout 11.91 mm with quick connect terminals. IP55 dust and water ingress protection.
Wide operating temperature range -45°C to 85°C. Certified to CSA, CE, UL standards. Suitable for electrical, automation, industrial equipment panels. Explore the Electronics & Electricals category at EnvMart for more professional grade switches and components suitable for industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile circuit control.
The maximum operating temperature for this switch is 85°C, making it suitable for various environments including industrial and outdoor applications.
The required panel cutout size for installation is 11.91 mm, facilitating easy integration into control panels.
It is rated for a contact current of 3A and can handle voltages of 125V AC and 32V DC.
The housing is made of durable polyester, while the actuator is constructed from black polyamide composite.
This unit features quick connect terminals, ensuring fast and secure wiring during installation.
The switch has an IP55 rating, providing protection against dust ingress and water jets.
It is certified to CSA, CE, and UL standards, ensuring compliance with recognized safety standards.
The minimum operating temperature is -45°C, allowing it to function effectively in harsh conditions.
This rocker switch operates in an On-On On-On configuration, providing multiple switching positions.
It is suitable for electrical, automation, and industrial equipment panels, making it versatile for various applications.
