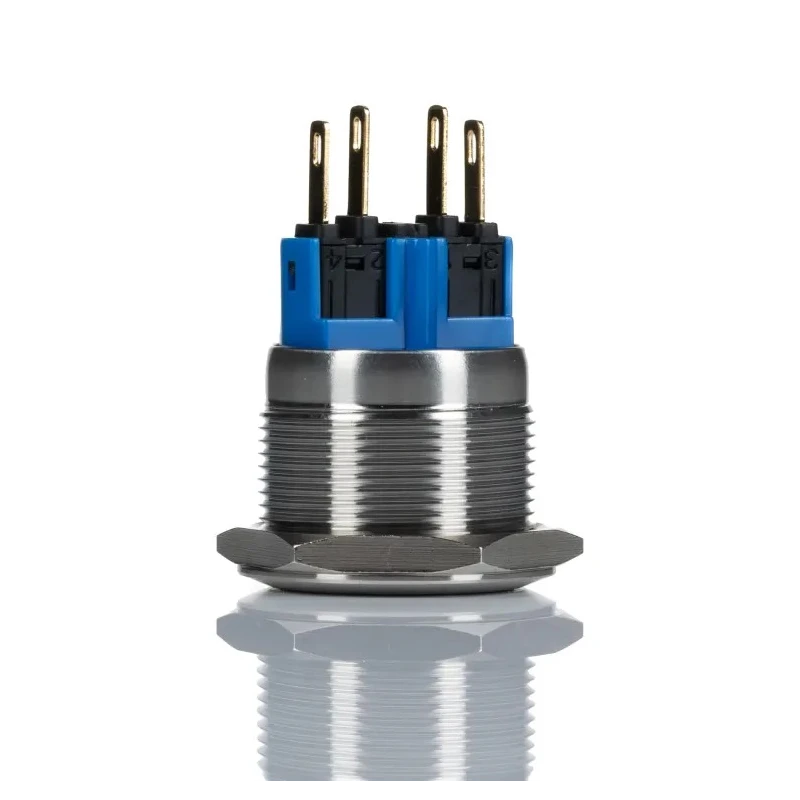

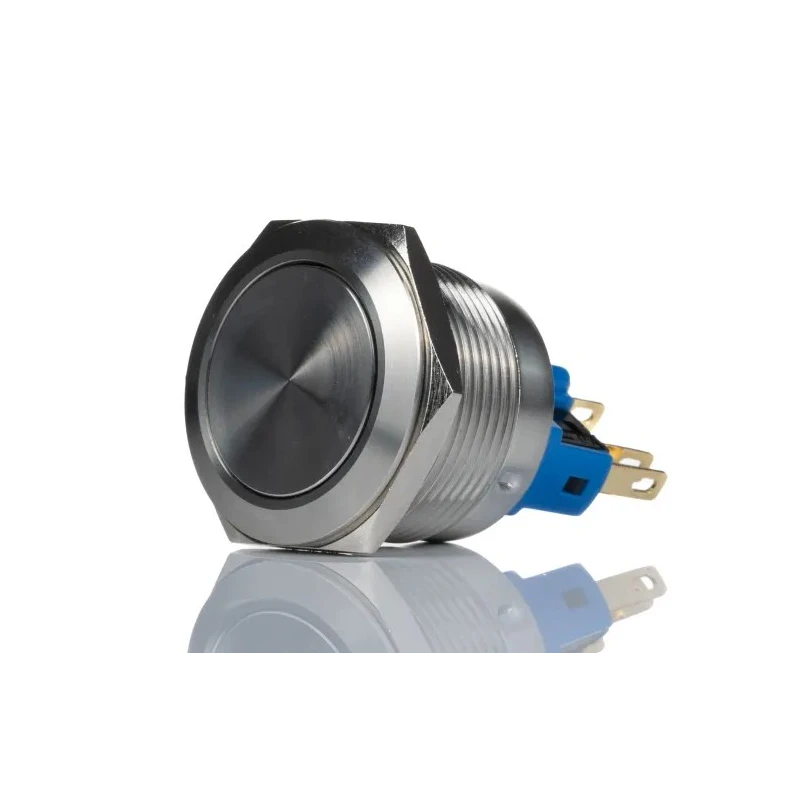

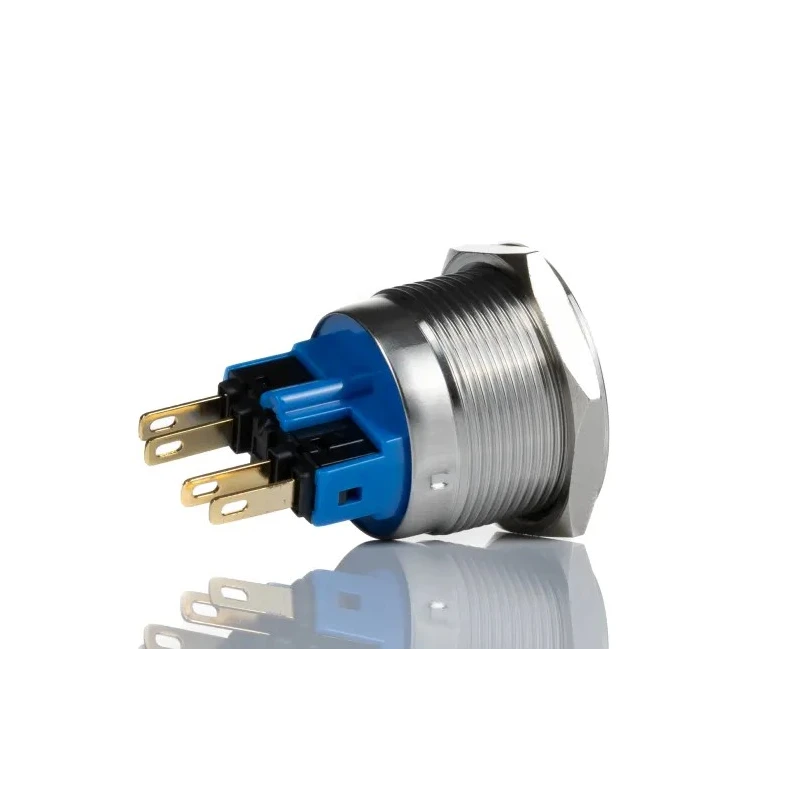

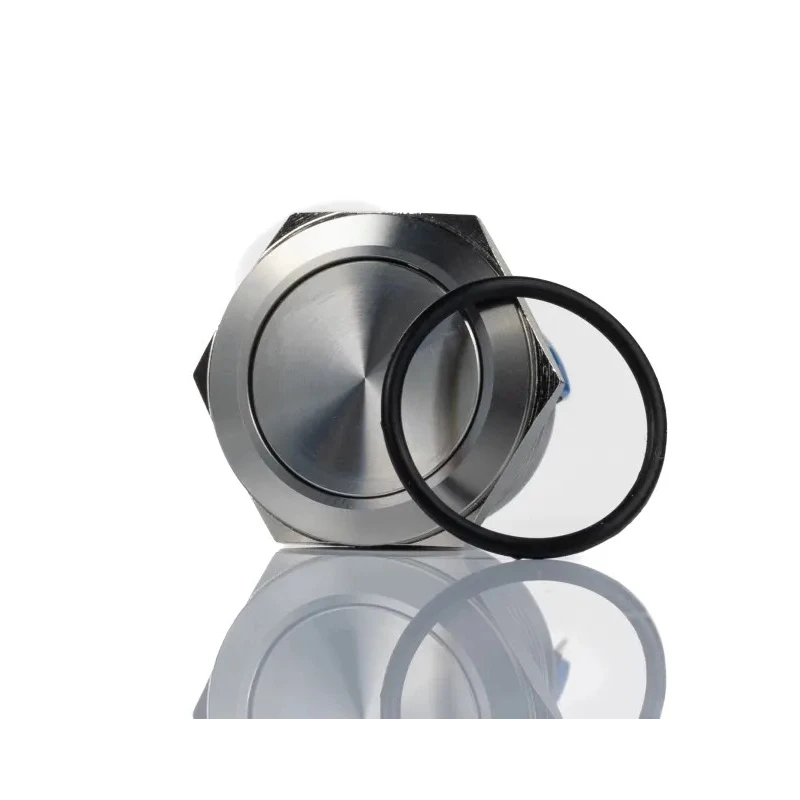

RS PRO Push Button Switch Momentary Panel Mount 22 mm Cutout SPDT White LED IP65 IP67 250 V AC 811-8480

RS PRO 811-8480 Push Button Switch is a high-quality momentary push button switch designed for panel mounting with a 22 mm cutout. It operates as a Single Pole Double Throw (SPDT) switch with quick connect terminals, suitable for electrical, automation, and industrial applications requiring reliable switching with front panel protection.

This switch features a durable silver actuator style with a flat profile, complemented by a white LED for visibility, although it is not illuminated by default. It provides reliable operation with contact ratings of 250 V AC and DC and a current capacity of 5 A.

The switch offers superior ingress protection with IP65 and IP67 ratings, making it ideal for use in environments exposed to dust and moisture, such as public kiosks, outdoor panels, and industrial dashboards. It is capable of operating in temperatures as low as -20°C, ensuring consistent performance under harsh conditions.

Constructed from robust stainless steel and equipped with copper alloy silver-plated contacts and brass silver-plated terminals, the switch is built for long service life, rated for 50,000 cycles with a maximum operating force of 4N.

Manufactured in Taiwan, this RS PRO push button switch complies with RoHS standards and provides excellent resistance to physical attack, fitting applications demanding vandal resistance and durability.

Operates with a momentary switch action for precise control. Silver actuator with flat style and white LED status indication. Panel mount with 22 mm cutout size for easy integration. Single Pole Double Throw (SPDT) contact configuration.

Front panel ingress protection to IP65 and IP67 standards. Contact voltage rating of 250 V AC and DC at 5 A current. Operational in temperatures down to -20°C for varied environments. Durable stainless steel construction with silver-plated contacts and terminals.

Operating life of 50,000 cycles with a max operating force of 4N. Complies with RoHS standards and manufactured in Taiwan.

This Push Button Switch is suitable for a broad range of applications including industrial machinery, automation control panels, electrical distribution, and outdoor installations, wherever reliable, durable, and vandal-resistant switching is required.
